qdrtshlz : Master Layout Designer

Turn your iPad, iPhone, or Mac into a custom control surface for your synths, pedals, and plugins. MIDI Designer Pro X layouts are built by musicians in the Community, who own the same gear you do. The layouts are curated for quality before they're listed here. Find your gear, download a layout, and start playing.

10
layouts
6
manufacturers
12,458
total downloads

Elektron Music Machines

Elektron SidStation by qdrtshlz, Rating: Gold [ 919 downloads ]

Kawai

Kawai SX-240 (Tauntek Mod) by qdrtshlz, Rating: Bronze [ 871 downloads ]

Roland

Teenage Engineering

Teenage Engineering Choir by qdrtshlz, Rating: Silver [ 132 downloads ]

Yamaha

Yamaha TQ5 by qdrtshlz, Rating: Platinum [ 4556 downloads ]

    Platinum

    Yamaha TQ5 by qdrtshlz

    4556 downloads
    Yamaha
    The Yamaha TQ5 is probably one of the most underrated and cheap synthesizers today. Manufactured in 1988, where it was clearly targeted to the consumer market with barely any parameters to edit at the…
    Version 1.0 | Version v0.91 | Version v0.9
    See on Q&A Site

    Gold

    Elektron SidStation by qdrtshlz

    919 downloads
    Elektron Music Machines
    The Elektron SidStation is a musical synthesizer sound module, built around the MOS Technology SID mixed-mode synthesizer chip originally used in the Commodore 64 home computer. It was produced by the…
    Version v1.0
    See on Q&A Site

    Silver

    Oxford Synthesiser Company OSCar (Tauntek Mod) by qdrtshlz

    374 downloads
    Other/Unlisted Maker
    Here's a layout for another great firmware/MIDI interface update by Bob Grieb (http://tauntek.com/OSCar.htm).
    If both MIDI In and Out are connected all controls update automatically when you switch be…
    Version 1.0
    See on Q&A Site

    Silver

    Roland MC-202 (Tubbutec MC-2oh2 Upgrade) by qdrtshlz

    1051 downloads
    Roland
    Simple layout for the MC-2oh2 upgrade from Tubbutec for the vintage Roland MC-202, see: https://tubbutec.de/mc-2oh2/
    Version 1.2
    Update for new MC-2oh2 firmware v1.21:Support for Midi CC 111: Swing am…
    Version 1.2 | Version 1.1 | Version 1.0
    See on Q&A Site

    Silver

    Roland MKS-80 by qdrtshlz

    2616 downloads
    Roland
    Have an Roland MKS-80 and don't want to buy an overprized Roland MPG-80 controller? Or already have an MPG-80 and you are not satisfied with its laggy MIDI resolution. This layout for the Roland MKS-8…
    Version v1.2 | Version v1.1 | Version v1.0
    See on Q&A Site

    Silver

    Teenage Engineering Choir by qdrtshlz

    132 downloads
    Teenage Engineering
    Here's a little phoneme keyboard for the Teenage Engineering Choir.
    Version 1.1
    See on Q&A Site

    Silver

    The Division Department 01/IV by qdrtshlz

    453 downloads
    Other/Unlisted Maker
    Here's a little layout for analog drum synth 01/IV by The Divison Department, https://www.thedivisiondepartment.com/
    Version 1.0
    See on Q&A Site

    Bronze

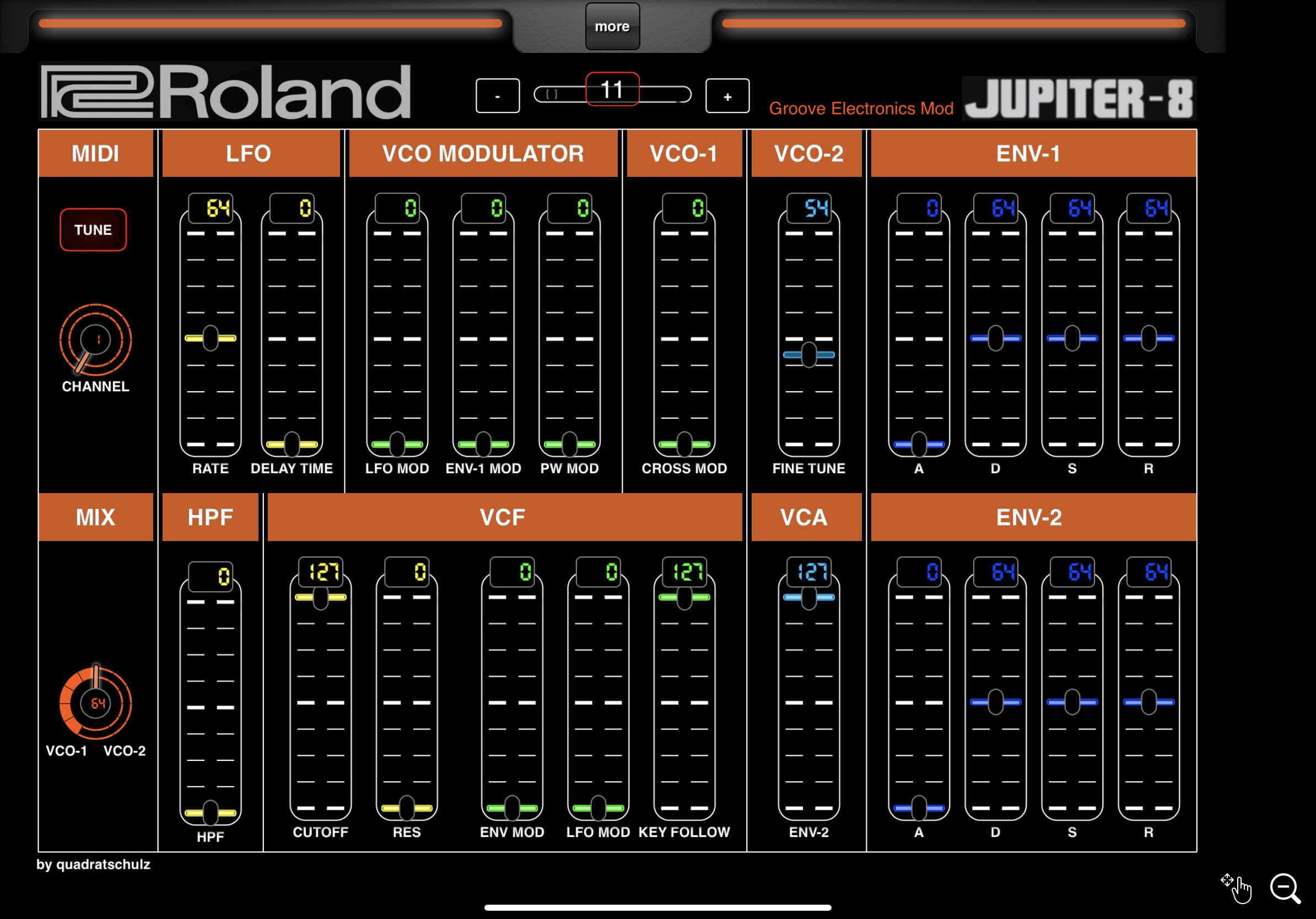

    Roland Jupiter-8 (Groove Electronics MIDI Mod) by qdrtshlz

    726 downloads
    Roland
    This simple layout allows acces to all MIDI controllers that are exposed by the Groove Electronics MIDI modification from 1987 for the Roland Jupiter-8. Note, that the Groove MIDI interface does not e…
    Version v1.0
    See on Q&A Site

    Bronze

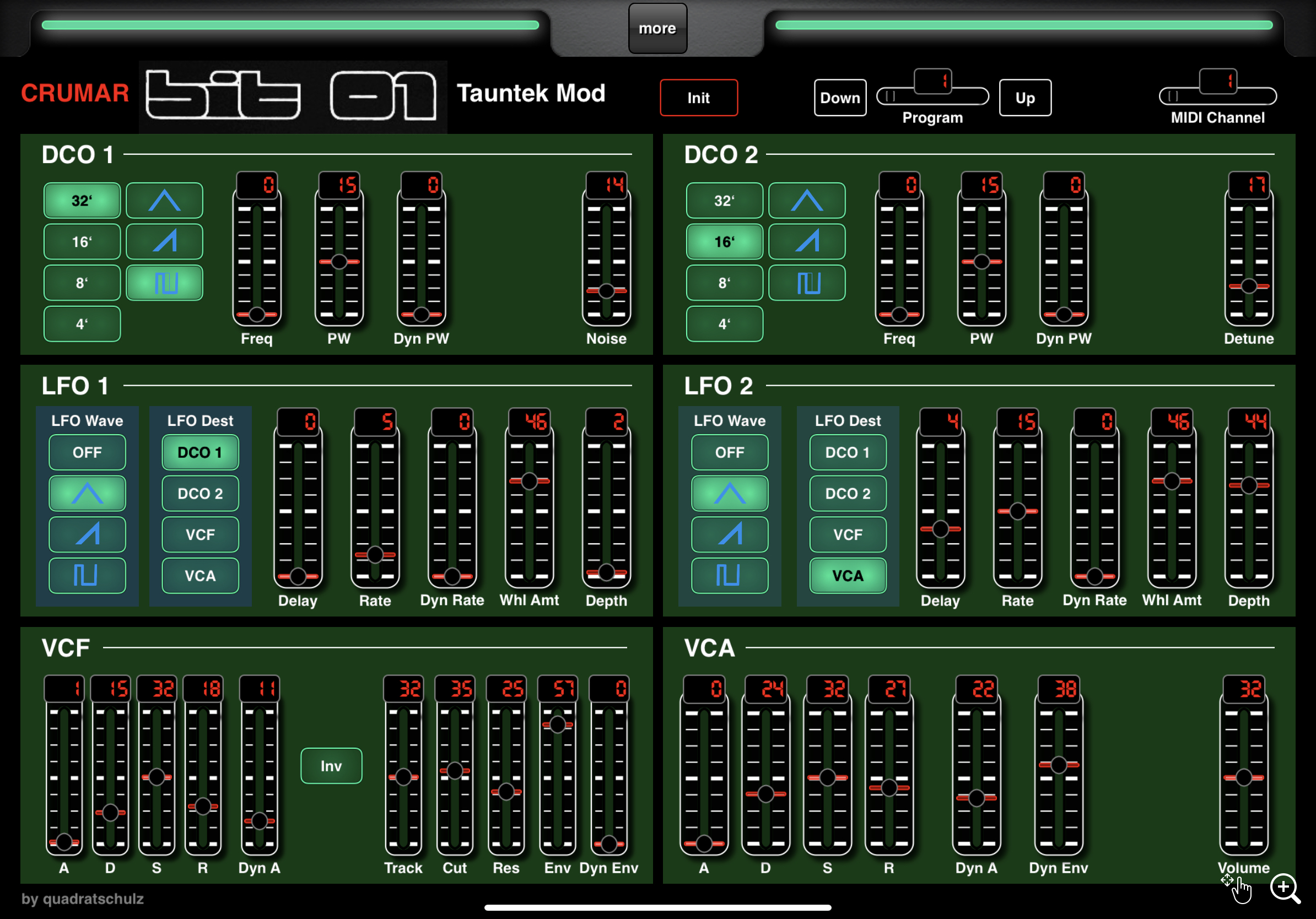

    Crumar bit 01 (Tauntek Mod) by qdrtshlz

    760 downloads
    Other/Unlisted Maker
    With the great firmware update by Bob Grieb (tauntek.com) it's finally possible to control all parameters of a Crumar Bit 01 via MIDI. This MD layout has been tested with a Crumar Bit 01, but should i…
    Version v1.0
    See on Q&A Site

    Bronze

    Kawai SX-240 (Tauntek Mod) by qdrtshlz

    871 downloads
    Kawai
    With the great firmware update by Bob Grieb (http://www.tauntek.com/KawaiSX240.htm) it's finally possible to control all parameters of a Kawai SX-240 via MIDI. Here's the MD layout to make full use of…
    Version v1.0
    See on Q&A Site
