Layouts by mitchellDR: Guitar Hardware Controllers for Up-and-Coming Effects

Show Image Gallery

9 Layouts by MIDI Target Manufacturer (3 manufacturers)

Chase Bliss


PAGE: Chase Bliss Thermae by mitchelldr, Rating: Silver [ 613 downloads ]

Empress Effects Inc.

Meris


    Gold

    LAYOUT: Meris Enzo controls and presets by mitchelldr

    2297 downloads
    Meris
    Here is a layout for the new Meris pedal. Layout  should work on channel 7.

    I added a presets pages specifically for the Enzo this time, this page recalls the presets saved on the pe…
    Enzo2.0.mididesigner | Enzo1.1.mididesigner
    See on Q&A Site

    Silver

    PAGE: Meris Mercury 7 Controller by mitchelldr

    1135 downloads
    Meris
    Mercury 7 layout designed from Ottobit Jr layout made by fretnomore. Set to channel 2, please feel free to improve or let me know if there are any errors.
    mercury7.mididesignerpage | mercury7update1.1.mididesignerpage
    See on Q&A Site

    Silver

    PAGE: Preset Control for 3 Meris Pedals - Ottobitjr, Mercury7 and Polymoon by mitchelldr

    463 downloads
    Meris
    Layout for controlling Polymoon on channel 1, Mercury 7 on channel 2 and Ottobit Jr on channel 3. Tap synch controls both Polymoon and Ottobit.
    MerisPresetshex.mididesignerpage
    See on Q&A Site

    Silver

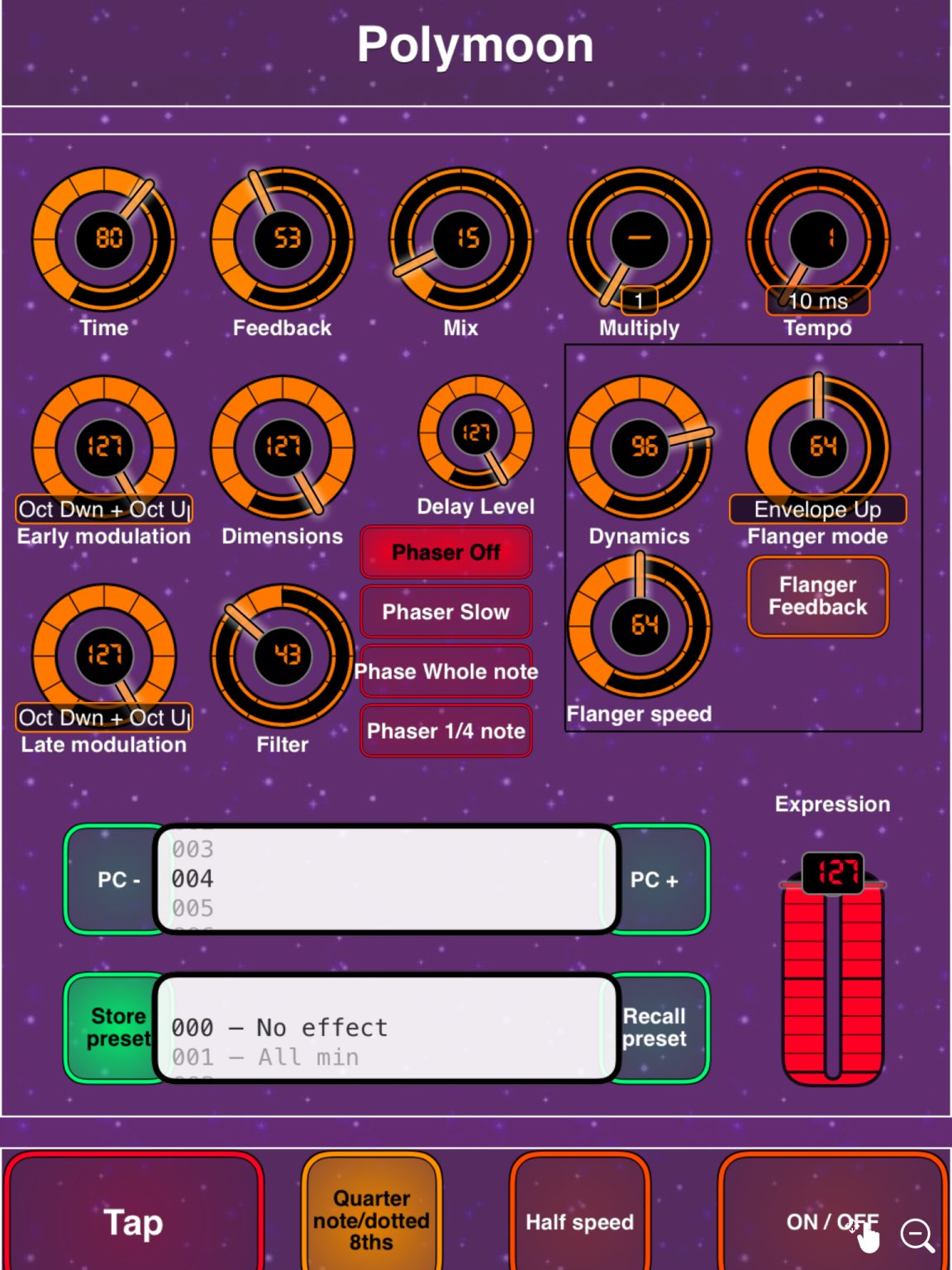

    PAGE: MERIS Polymoon Controller by mitchelldr

    1305 downloads
    Meris
    Polymoon Midi Layout, please let me know if there are any errors.
    Polymoon2.0.mididesigner | Polymoon.mididesignerpage
    See on Q&A Site

    Silver

    PAGE: Chase Bliss Thermae by mitchelldr

    613 downloads
    Chase Bliss
    Here is a layout I use to control the Chase Bliss Thermae, please let me know of any improvements I can make. I will be updating this layout to add labels for the interval changes in the next week.
    thermae1.mididesignerpage
    See on Q&A Site

    Silver

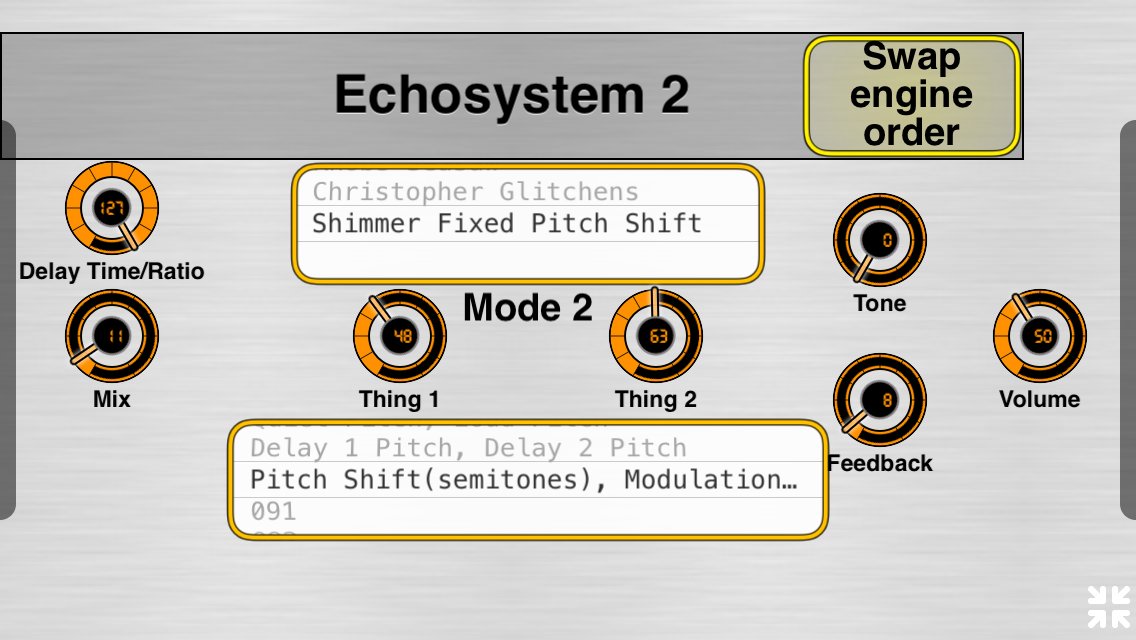

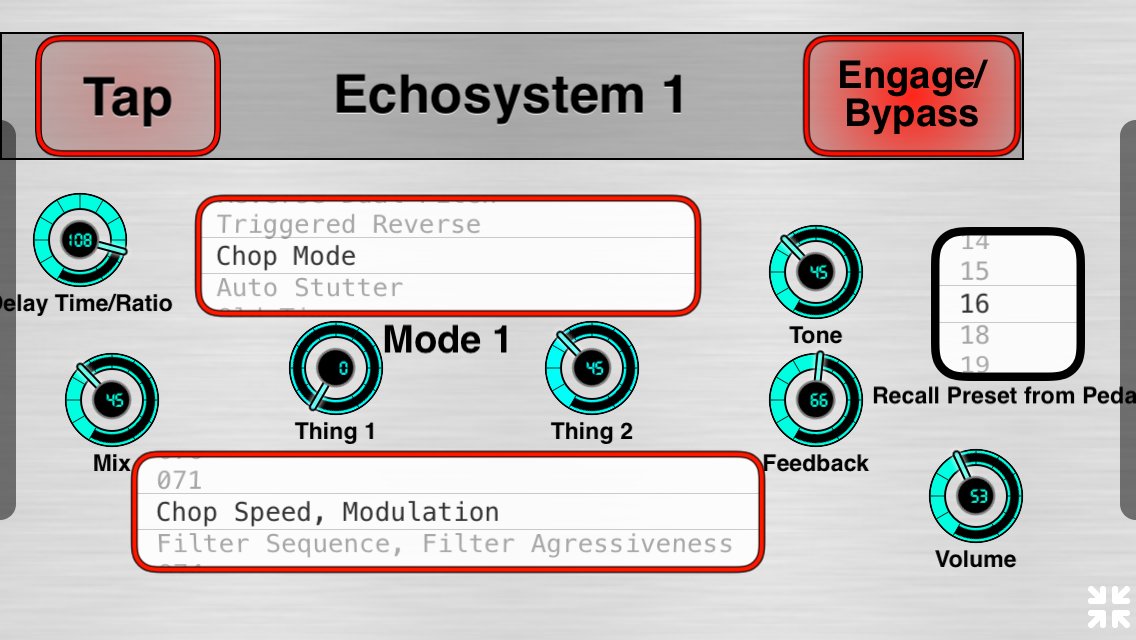

    LAYOUT: Empress Echosystem by mitchelldr

    507 downloads
    Empress Effects Inc.
    Fully Functional Layout for Empress Echosystem. Will try and update later with visual improvements.
    Echosystem.mididesigner
    See on Q&A Site

    Silver

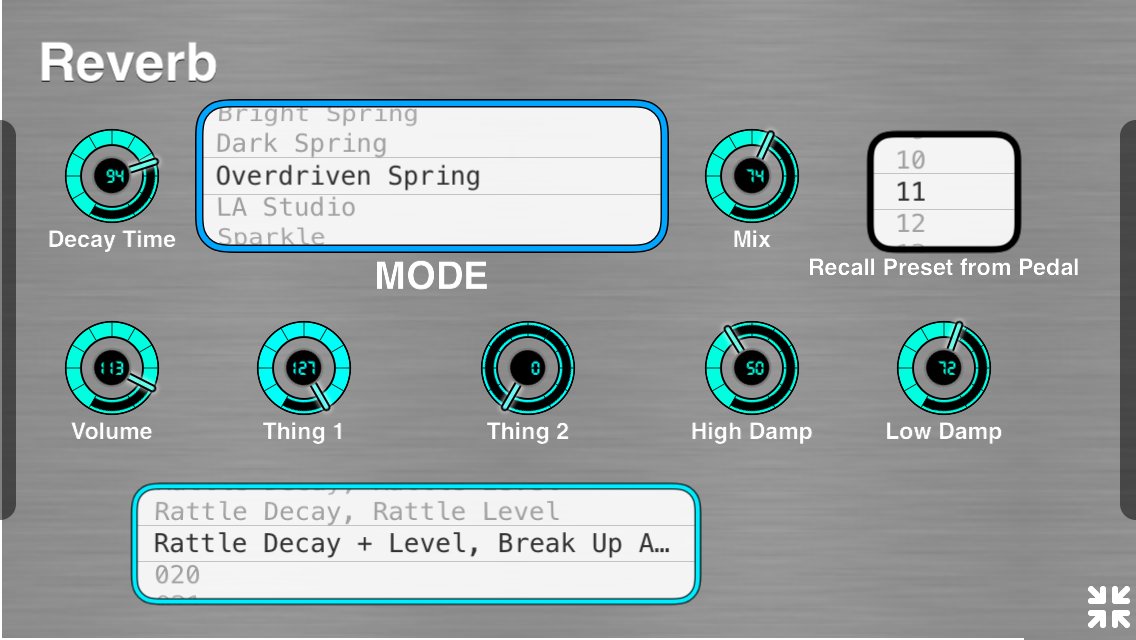

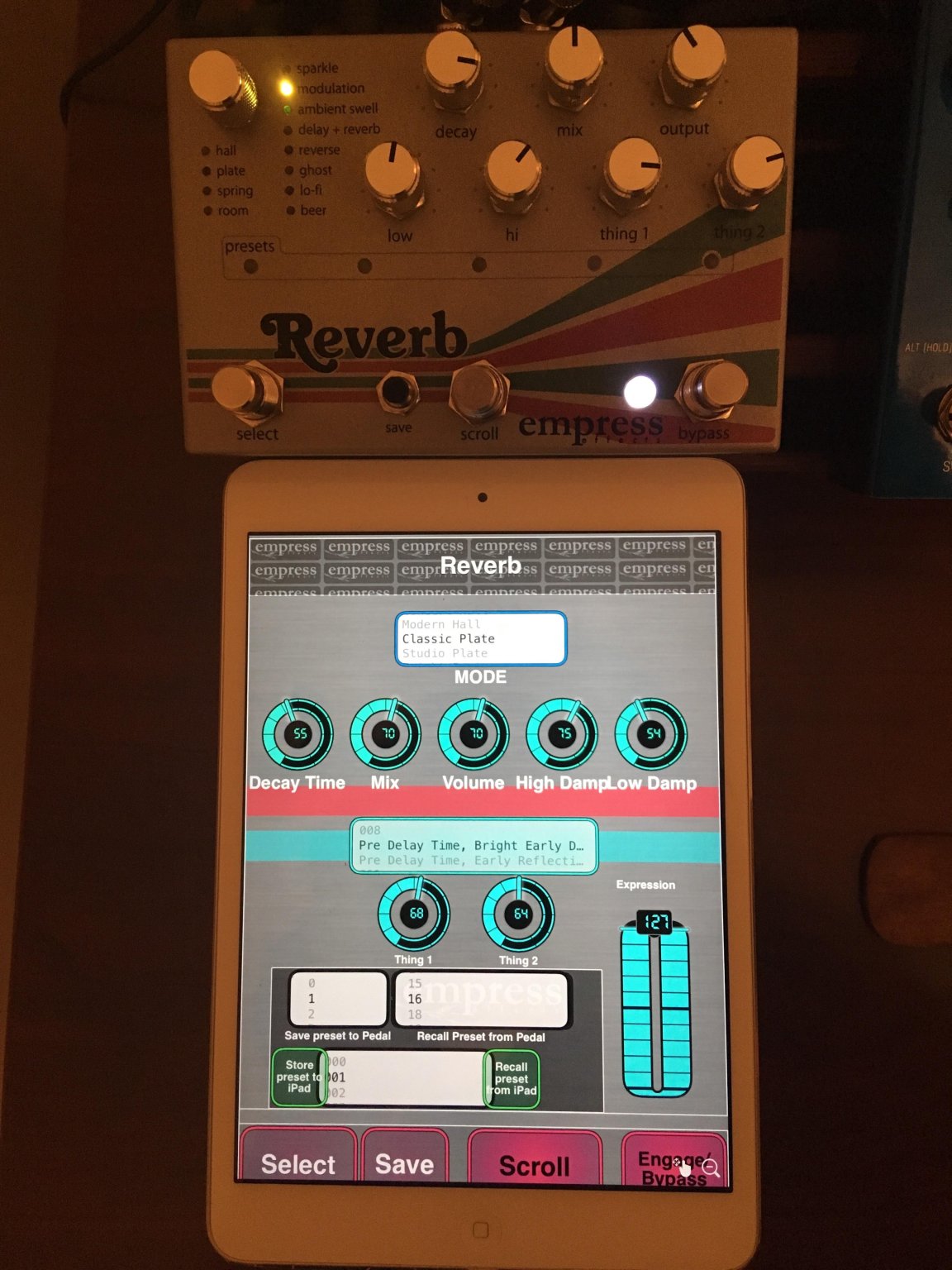

    LAYOUT: Empress Reverb and Echosystem iPhone layouts by mitchelldr

    571 downloads
    Empress Effects Inc.
    Basic Controls for the Empress Reverb and Echosystem pedals for iPhone. Had a request for these and found them useful myself. Intended use is primarily to use these pages when in looper mode to chan…
    2018-10-20-empressiPhone.mididesigner | LAYOUT: Empress Reverb and Echosystem iPhone layo
    See on Q&A Site

    Silver

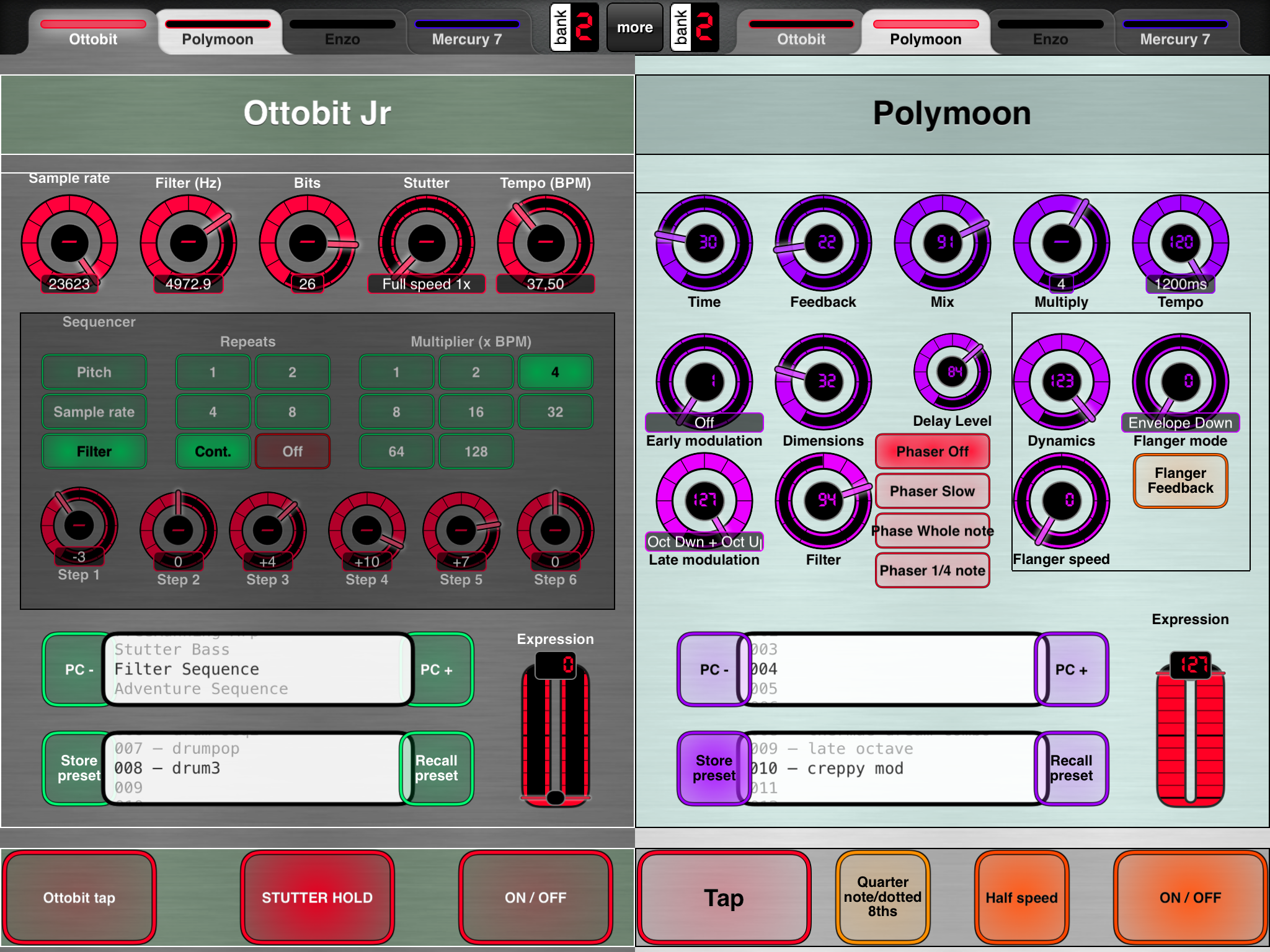

    LAYOUT: 4 Meris pedals: Mercury 7, Polymoon and Enzo and Ottobit Jr + Presets and Stream Byter Rules by mitchelldr

    477 downloads
    Meris
    This is a updated layout for of all four meris pedals with a new single page for control of all the pedals and a complete preset page. This includes Stream Byter rules to Parse Sysex dumps for all fo…
    meris4.mididesigner
    See on Q&A Site
