Roland RD 2000 Manager - MIDI Designer Q&A

Rating: GoldRoland RD 2000 Manager

+4 votes
Rating: Gold
Gold
MIDI Target Manufacturer(s): Roland

Major update to incorporate latest MD capabilities and support the RD 2000 EX

• Now loads user program names
• Streamlined many displays, revised Mixer format, load progress indicators, fast Trem / ModFx loads
• Added more controls - offsets, pitch bend, portamento, ...

RD 2000 Manager Ver 2.30, March 2025

  • Control most functions with related parameters on one screen
  • Edit Fx - EQ, Reverb, Delay, Comp, Trem/Amp Sim, many Mod / Fx
  • Sound chain control with Mixer and Fx Overview
  • Access Tones and Programs
  • TW organ controls, including 230 classic TW drawbar presets
  • Rhythm section control

Related products:

This layout works with a standard DIN connection (CME BT), generic USB, or vendor drivers.

Downloads: 9128
RD-2000 Manager 2.31.mididesigner - Updates from working video - a few buttons were sending incorrect MIDI, two additional Mod/Fx editors, initial cut at Vibrato / Chorus settings for the Tonewheel Organs.
Downloads: 399

RD-2000 Manager 2.30.mididesigner - • Major rebuild to take advantage of new MD features • Now loads user program names • Streamlined many displays, revised Mixer format, load progress indicators, fast Trem / ModFx loads • Added more controls - offsets, pitch bend, portamento, ...
Downloads: 340

# RD 2000 Manager 2.30 StreamByter.pdf.zip - Formatted StreamByter code. You can pull the code out of the layout if desired, but easier to see what is happening in the formatted version.
Downloads: 296

RD 2000 Manager 2.20 - Supports new German Grand EXP, new sound chain functional view, Sym Rez editor, lots of UI improvements with the MDP2 improvements since 2.15 was released.
Downloads: 713

RD 2000 Manager 2.15 - New in 2.15: Added Control Switches Page EXP-6 sorted by Category and Name
Downloads: 1164

RD 2000 Manager 2.14 - New in 2.14: - Key range editor - Improved some Mod/Fx default settings - Bulletproofing StreamByter rules, some general housekeeping
Downloads: 1087

RD 2000 Manager 2.13 - New in 2.13: - New controls status and selection page (wheels, pedals, knobs, sliders) - New Fx summary page, 9 additional effects editors, including Reverse Delay (most complex RD-2000 effect) - Continued display improvements
Downloads: 1107

RD 2000 Manager 2.12 - - Add channel selector for RD-2000 Program Control Channel - Clean up the cranky pickers that want to spin on their own - Minor interface cleanup
Downloads: 912

RD 2000 Manager 2.11 - Correct a few minor bugs in 2.10: Main/Sub 6 not scanned, TW1-R2 update, missing tone in EXP-3, TW Presets steppers cranky. Add note that Trem/Mod settings not stored with mixer preset.
Downloads: 1238

RD 2000 Manager 2.10 - New in 2.10: - New master mixer page layout - all important program settings on one page! - Control for Program Delay and Reverb, additional Mod/FX templates - Select Tremolo and Mod FX effects from MDP2 - Index page for direct access to all controls
Downloads: 1000

RD 2000 Program Names.zip - File for bulk editing program names - No longer needed, 2.30 will load program names directly from hardware
Downloads: 876
Images

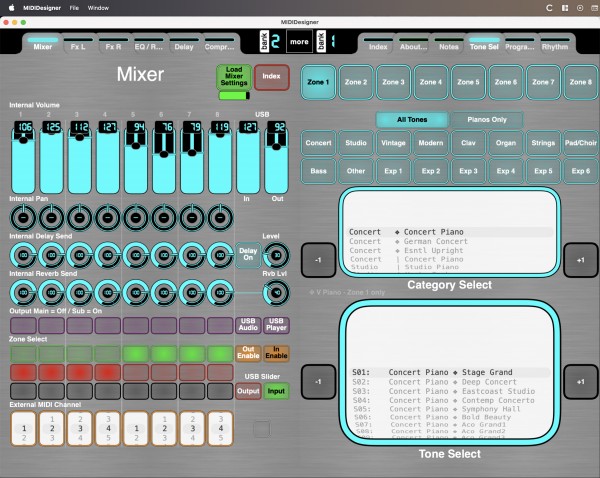

2.30 Improved Mixer Layout, Tone Select
2.30 Improved Mixer Layout, Tone Select

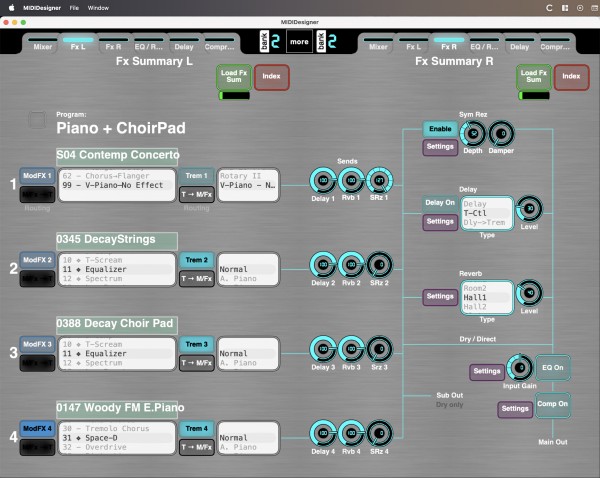

2.30 Improved Fx Summary, improved Program/Scene title display, links to Fx editor pages
2.30 Improved Fx Summary, improved Program/Scene title display, links to Fx editor pages

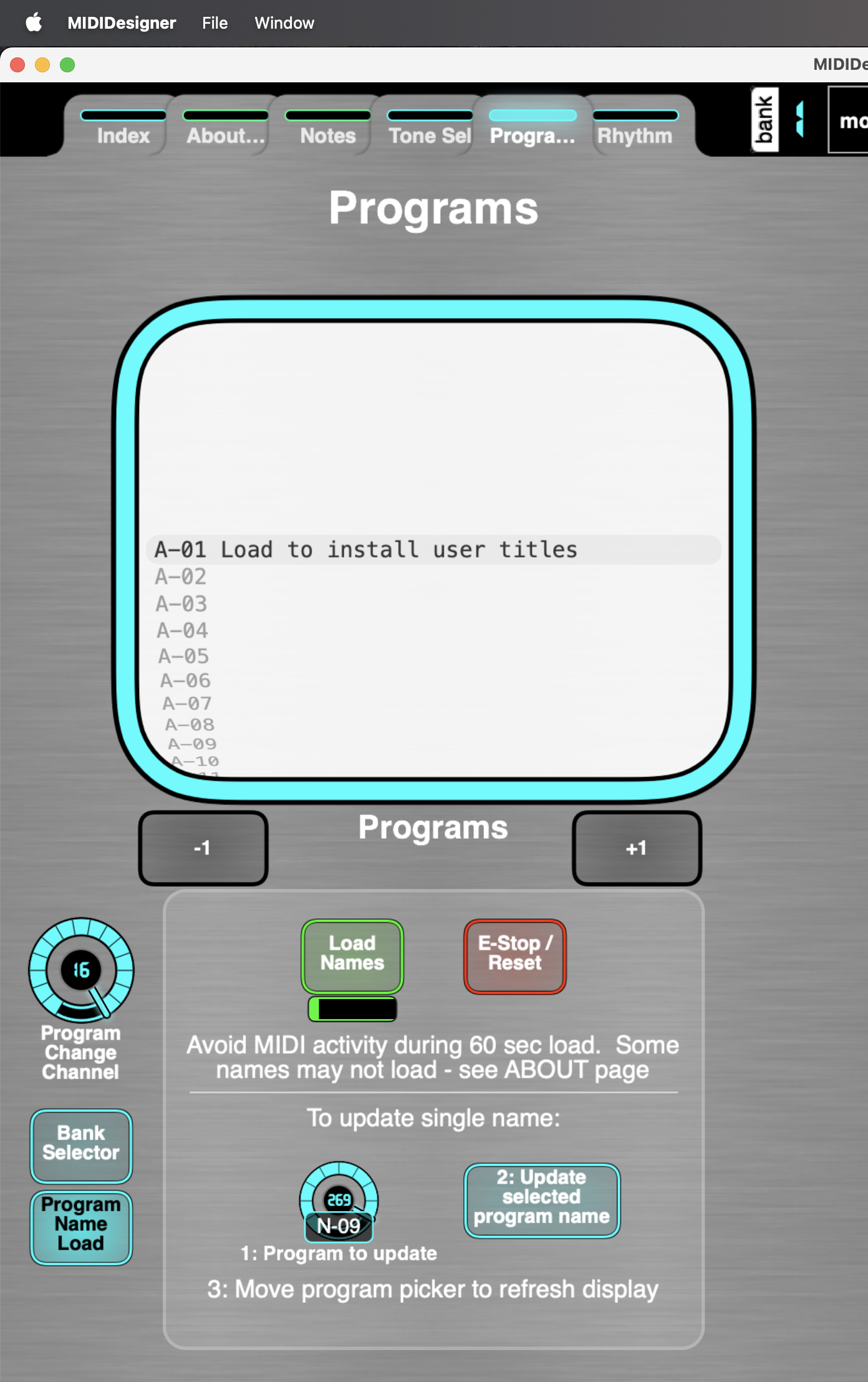

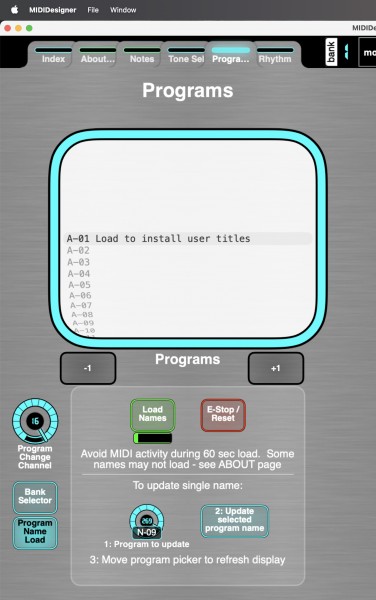

2.30 Program name load - load all 300 program names, or update a single program
2.30 Program name load - load all 300 program names, or update a single program

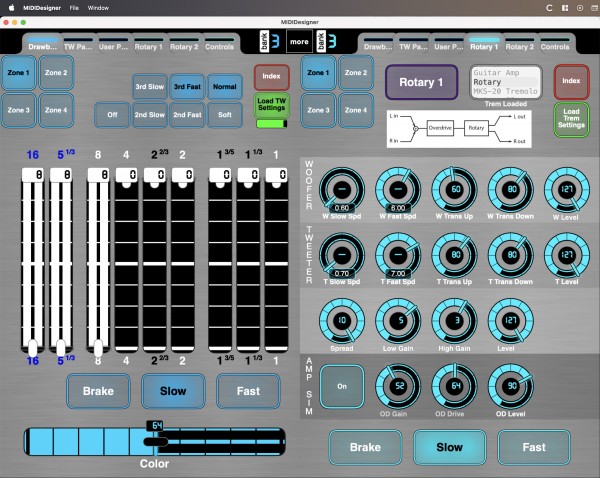

Current version of the TW organ pages, Hammond inspired controls and Rotary editor
Current version of the TW organ pages, Hammond inspired controls and Rotary editor

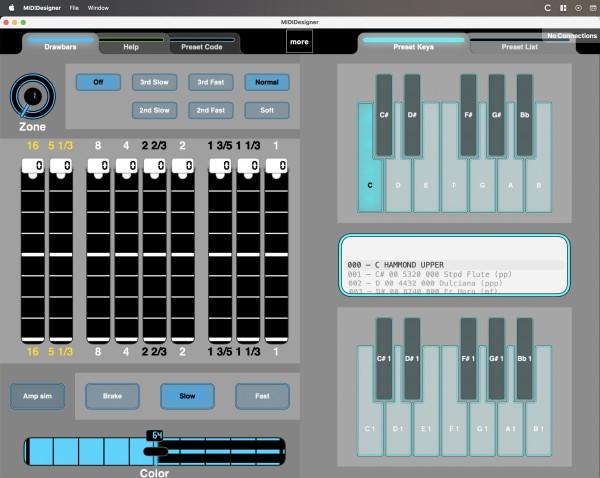

Wayback machine: Rel 1.0 - where we started in 2018 to emulate the Hammond preset keys
Wayback machine: Rel 1.0 - where we started in 2018 to emulate the Hammond preset keys
in Community Shares by jkhiser (22.5k points)
edited by jkhiser
Wow, so glad to have this! Instructions are an image, I'm guessing?
by MIDI Designer Team (Dan)
Yes.  Image allows pasting in a picture of instructions.

Currently trying to wrap my head around how to read out the RD-2000 TW setting, and update the iPad settings, without causing an infinite loop.  Believe I have an idea.
by jkhiser (22.5k points)
Uploaded 1.01 with minor bug fix.  TW readout after RD 2000 preset change is coming soon.
by jkhiser (22.5k points)
What's the workaround to avoid Midi loops? MIDI Designer Pro is designed to avoid some of them
by MIDI Designer Team (Dan)
The loop was not coming from where I thought it was.  When I added the code to automatically install the presets (avoiding making 128 x 13 separate entries), I accidentally left the 16' preset setter with midi receive on, and on the same channel as the 16 RD transmission, so when you moved the drawbar on the RD, it would fight MD in a loop.  But this happened as I had also added the read back code, which is where I thought the problem is.  I try to remember to put all non-receiving controls on channel 3, receive off, to avoid surprises, but missed this one.

So my read back code does not have a loop, will be finished shortly.
by jkhiser (22.5k points)
edited by jkhiser
Comment deleted.
by jkhiser (22.5k points)
edited by jkhiser
To respond to the deleted thread: Sadly this QA site has gotten a bit worse on iOS, but works really nicely from Chrome or Safari, so “use a computer” is, ironically, the answer to any issues you’re having with this site. Glad you got it sorted.

Regarding the MIDI loop issue, yeah: keeping stuff organized and reorganizing is one of the realities of a good layout of any size. Glad you are able to work forward. Nice layout, big up!
by MIDI Designer Team (Dan)
Your layout should now be available through the Browse function in MDP2. Congrats!
by MIDI Designer Team (Dan)
We've queued up posts on FB, Twitter etc. about this post. Check @midiDesigner on social media (or not, we're just excited that to provide a useful tool for ya).

Big up once again!
Dan
by MIDI Designer Team (Dan)
Roland nibble math has been kicking my behind, but 1.03 with Rotary 1 and 2 editors should be up in 24 hours.

And it appears that the RD2000 can only reliably respond to eight queued Sysex messages in one blast, so have to recode to reliably read the ninth drawbar (1').
by jkhiser (22.5k points)
Completing the latest update, hard to believe this layout started in 2017.  I was agonizing between a Roland RD 2000 and one of the Hammond SK boards with their extra tones.  Went with the RD, but wanted to get more of the Hammond interface for the RD TW capability.  This layout had come a long way, but had also been ignored recently as I advanced MD work on the Jupiter X and TR 6S-8s.  Took about a month of part time work completely overhauling to incorporate the new capabilities, add more capability, but also make the interface simpler and cleaner.  With the new RD 2000 EX, this layout should remain relevant for a while.  By my count, there are about 58 pages of content in the 8 x 6 standard MD layout.
by jkhiser (22.5k points)
edited by jkhiser
