Layout: Roland RD-2000 Program Sysex Dumpby jkhiser

Question

Bronze

MIDI Target Manufacturer(s): Roland

This layout requests the RD-2000 current (temporary or edit) Program definition for capture in a Sysex library application.  It was tested with the Mac Snoize SysEx Librarian and iOS CoffeeShopped SysexBase.  A web search may show other Mac, Windows, and iPad Sysex library solutions

This captures all of the Program definition except Piano Designer Individual Voicing information (e.g., eight internal & external zones, all program settings and effects)

There is no difference between Scene and Program.  They are captured the same from the current (temporary or edit) location, and restored there on playback.  Saving as a Program or Scene must be completed on the RD-2000

The piano Individual Voicing Sysex playback has been problematic.  If you have used Individual Voicing for tuning, character, or level, I have removed that portion of the capture, as it does not always reload correctly.  I am working on a solution

MDP2 has no role in the playback - playback is direct from the Sysex Librarian to the RD-2000.

Downloads: 591
Layout: RD-2000 Program Sysex Dump 1.00 - Initial release. Does not capture Piano Designer Individual Voicing information.
Downloads: 591

Images

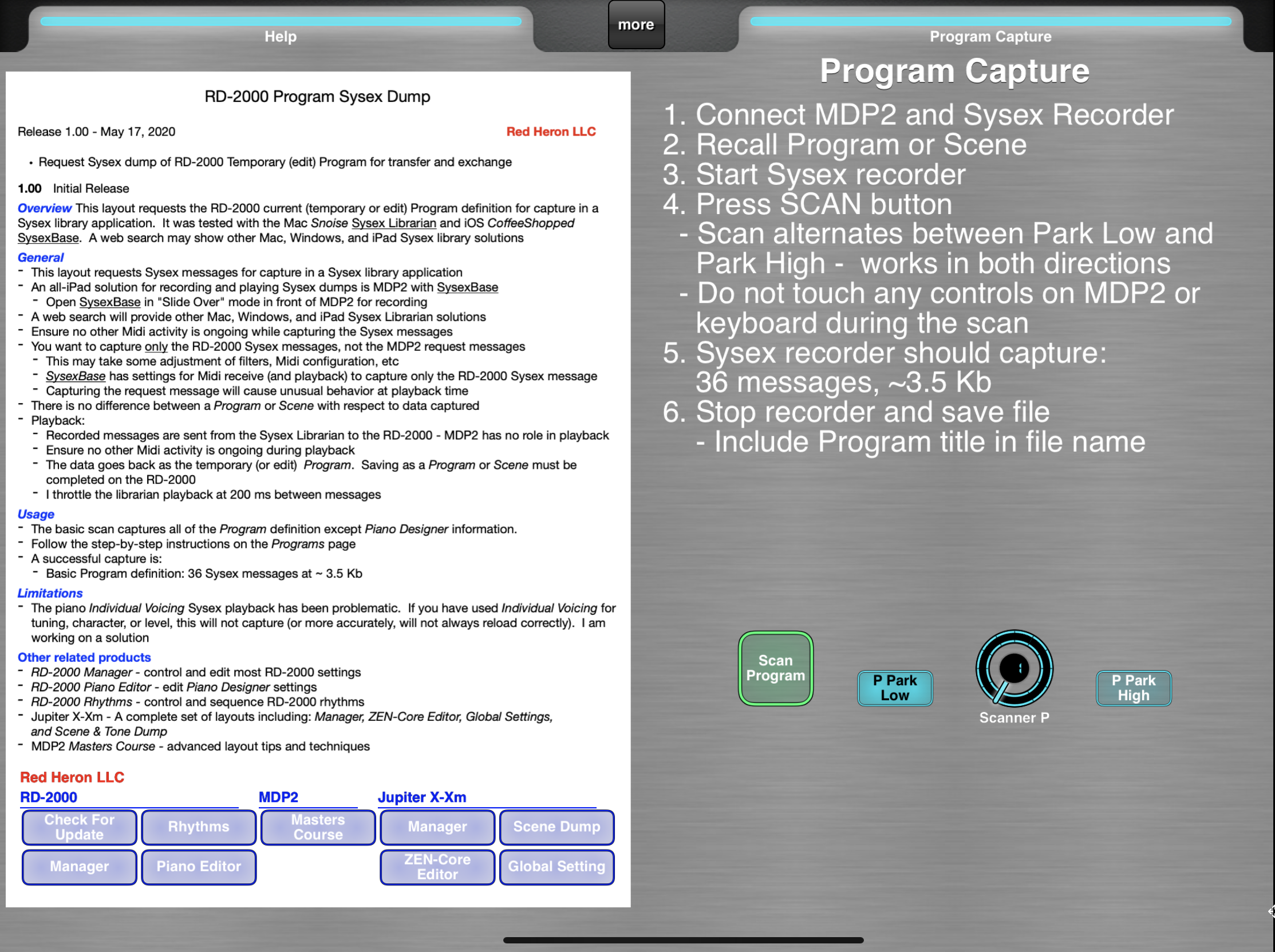

Help file and the single button to push

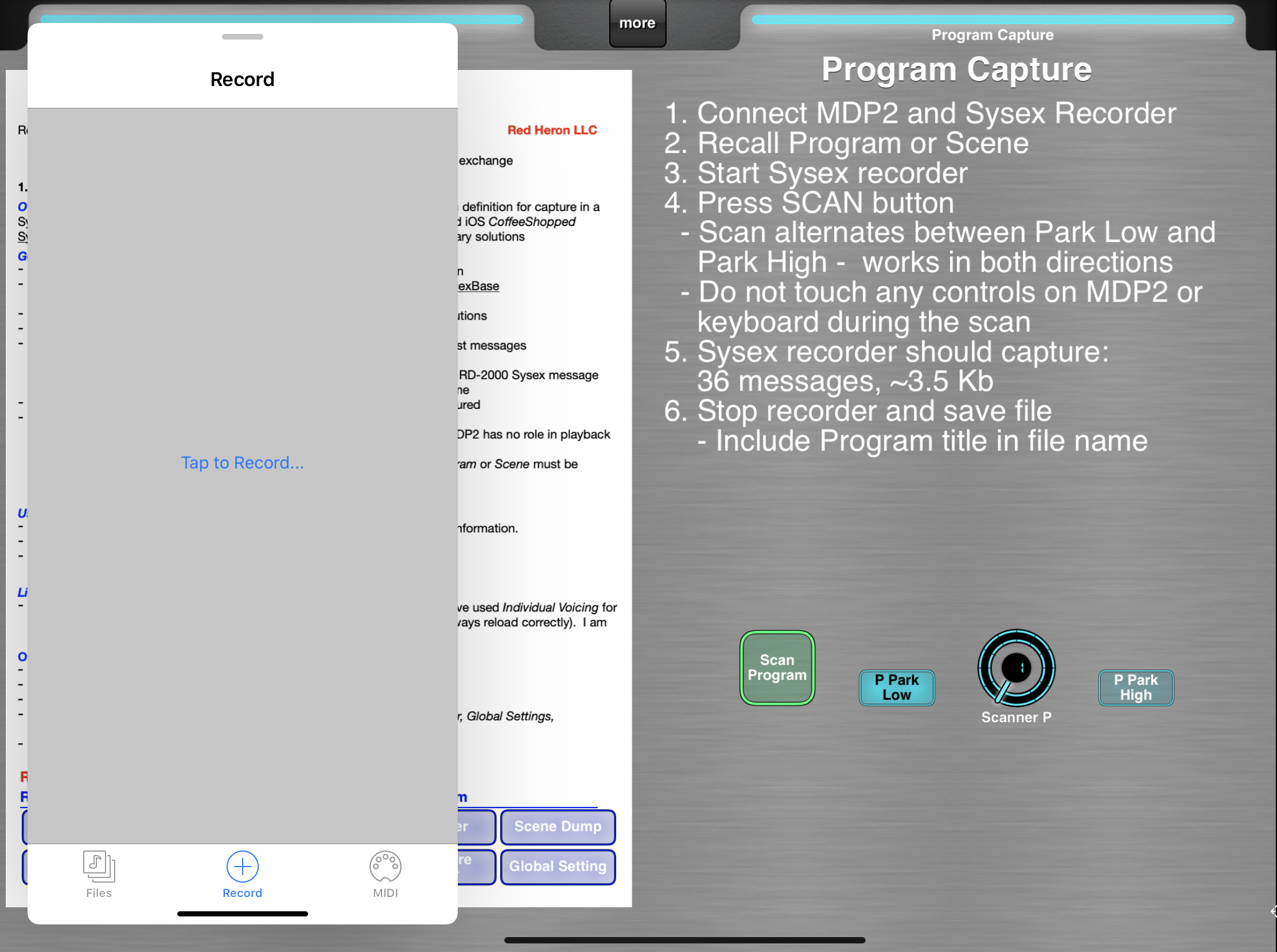

SysexBase opened in 'slide over' mode ready to capture the Sysex

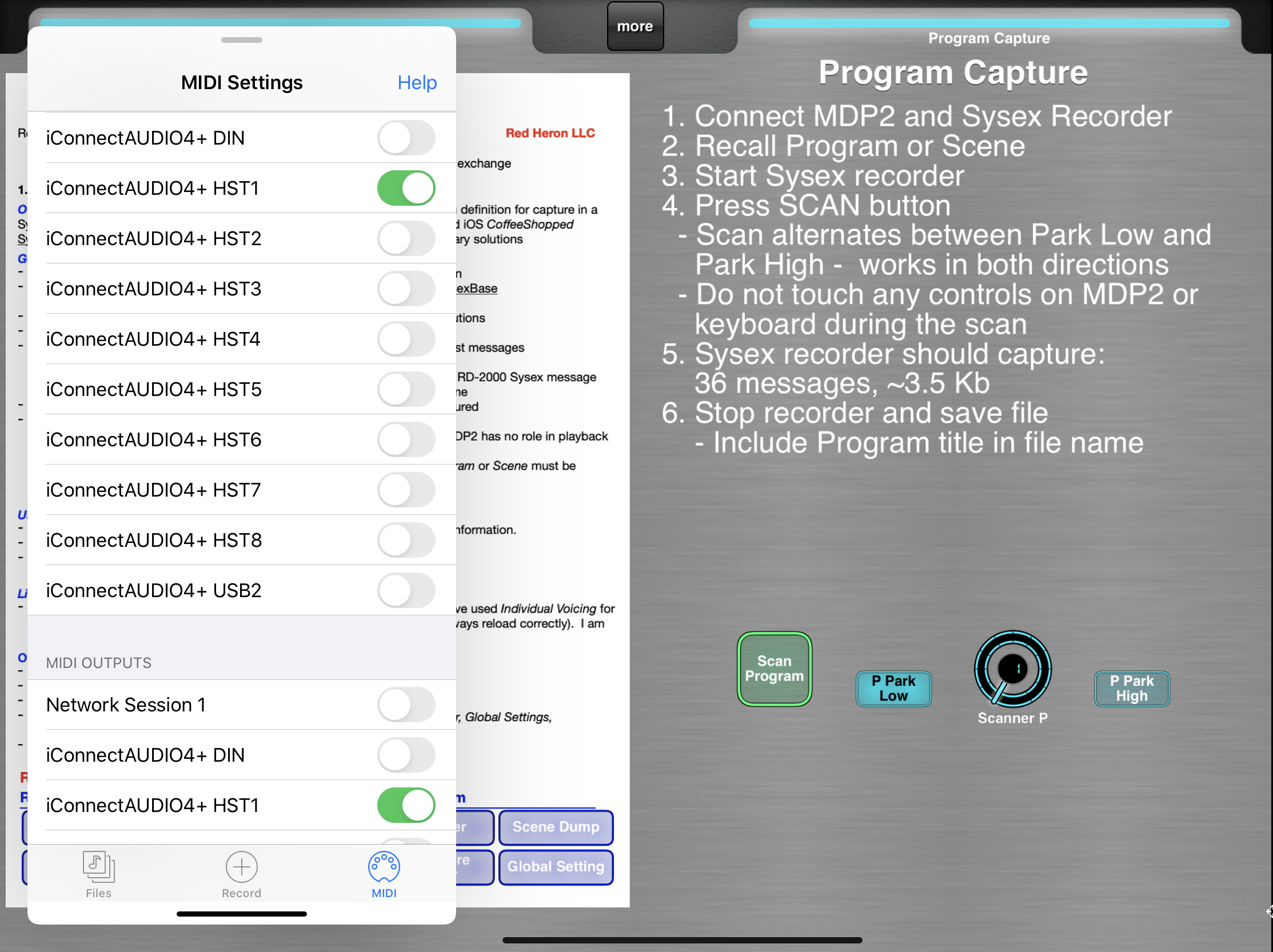

SysexBase Midi settings - only select your RD - mine is on HST1

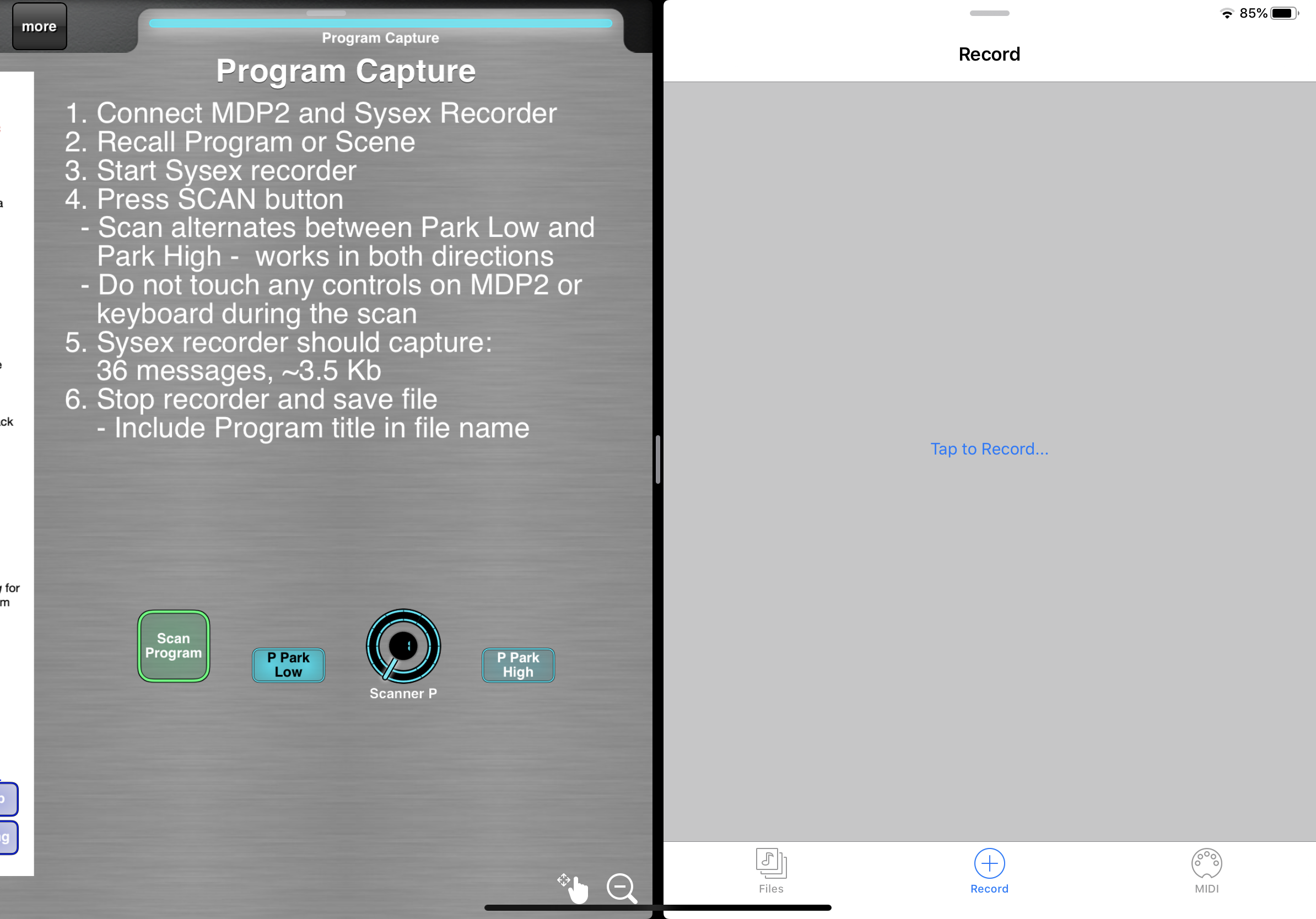

You can also use 'side by each' mode, MDP2 on left, SysexBase on Right
