MIDI Target Manufacturer(s): Chase Bliss
March 2024 update: Bug fixes + made the ticker as main preset selector (tap recall to load). Fixed some discrepancy in cc value display on the time dial.
Notes:
- Dip switches are controlled by swiping across
- If you tap dials a few times it will get them to jump to what I have set as default
- I added some presets to get you started. Almost all of them are taken from Knob's video
- Midi Designer has moved to a freemium model - so you can access the first two pages of the layout for free (so the main controls - including the preset saving ticker). You'll need to subscribe to access the other pages.
If something looks off, check the log in the main menu ,and please let me know what needs fixing (via the comments below or DM me on Instagram)
----
IMPORTANT:
Midi Channel Is set to 5. You can change these by going into design mode. Then double tapping each tab and going to the controls pane. Repeat the process for each of the tabs with controls on them. Make sure you re-save the layout when you are done.
Retaining in-app presets: If you are adding in-app presets, make sure you save your layout at the end of a session. This will write them to the layout file. Open the App Menu -> Tap Config -> Then tap Save Layout in the Actions Tab
----
HOW TO USE:
- Install: 1) Install Midi Designer from the Apple App store 2) Download the layout file below and load it into the app 3) Open app menu -> config -> save layout. Optional - but it will save you a bit of time if you are switching layouts in future
Connecting to the pedals:
- Wired: Plug your iPad/iPhone into a USB enabled midi device that’s hooked up to a Chase Bliss compatible Midi box. I have tested this with a HX Stomp.
- Bluetooth: I highly recommend the CME Widi jack. Use a midi box that's switchable to work with Chase Bliss pedals (Ring active). Because it's switchable you can then use any stereo TRS cable. I am using the Disaster Area Midi Box 4. Do not try using a Widi jack plugged directly into the Mood pedal's midi input - it won't work because the TRS cable CME use is wired up the standard way.
----
IN APP PRESETS:

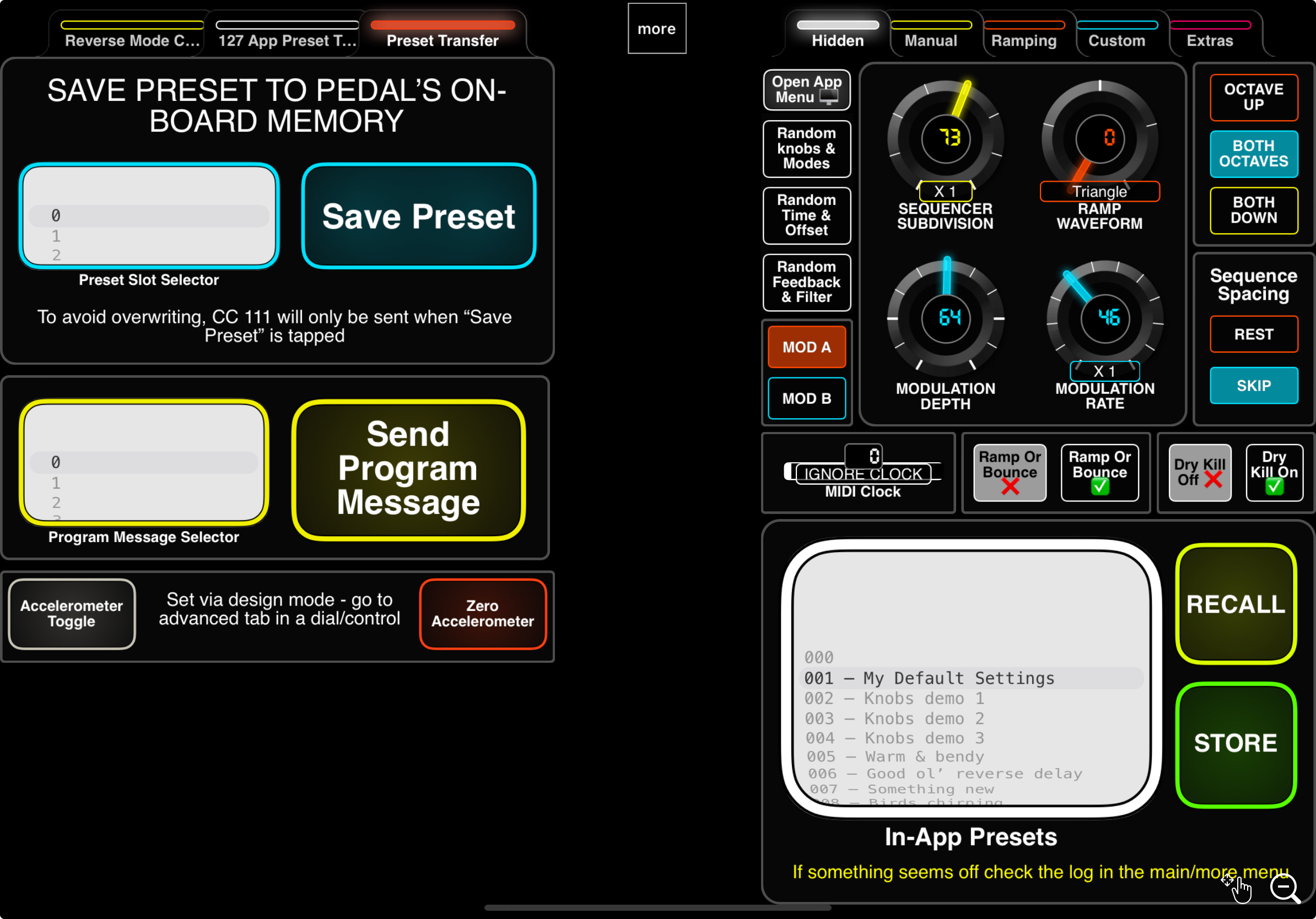

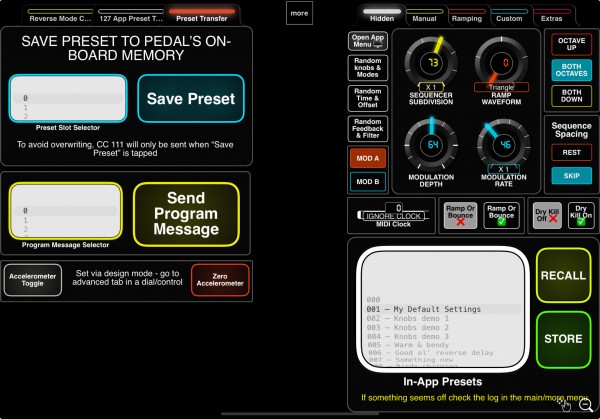

- Saving in-app presets: Use the ticker to pick the slot -> Hit Save -> Label your preset

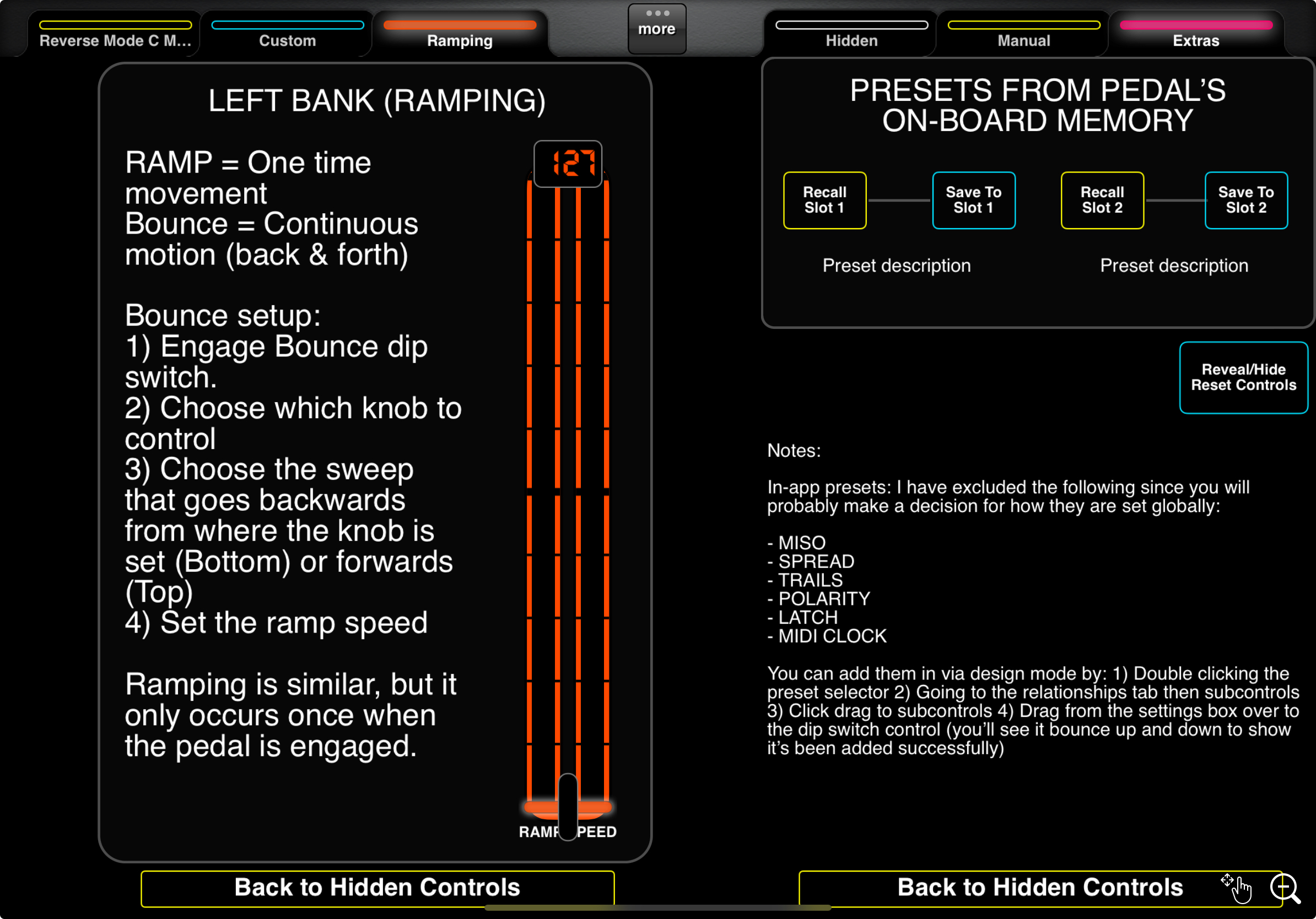

- Whats been excluded as a subcontrol: Miso, Spread, Trails, Polarity, Latch, Midi Clock, Ramp Speed, and ticked time (positions will not be recalled as part of an in-app preset - but you can change this)
- If you want to see what the preset saving module is connected to or edit them:
- Go into design mode -> double tap the ticker -> Relationships tab.
- Then look at the subcontrols
- To add subcontrols: Hold your finger over the "drag to subcontrol" button then gliding it over the control. Then hit apply and save your layout.
- To remove subcontrols: Swipe from right to left on the list. Then hit apply and save your layout.
NOTE: The Preset quick toggles now work is a little different from earlier versions - you'll have to tap recall after selecting them. I found the previous way a little buggy - hence switching it for now. I might bring it back at a later date. If you want to try the old way you can by going into design mode -> select the toggle -> go into subcontrols and add the "recall" button as the second thing on the subcontrol list.
----
Disclaimers
This is a non-official layout. Use at your own risk. I did share this with the Chase Bliss support team though.
I am not connected to Chase Bliss, and I don't work for Midi Designer. I made this for my personal use, and thought I'd post it here so other people can enjoy using it.
For Midi Designer Pro app issues please contact the Midi Designer support team
For issues with pedal hardware or software please contact Chase Bliss.
