Dynamic knob labels & toggling buttons with single CC values

Question

MIDI Target Manufacturer(s): Chase Bliss

I have a big update planned for my Mood MKII layout, and have run an issue with tweaking the toggles.

What I want to achieve:

1. Switching out the sliding mode selectors for toggle buttons. If say reverb is pressed, followed by delay I want the other mode toggles to stop lighting up as I tap through them - so I can see which mode I am on.
2. Have the dial labels adapt based on which mode is selected. I attempted to do this by layering three labels over each other that are activated as each mode is toggled. Because of issue one above, there ends up being a scenario where more than one label is displayed at the same time

Is there a way to solve this so when I am cycling though modes only the last tapped mode lights? And is there a simpler way to have knob titles change dynamically based on which pedal mode is selected?

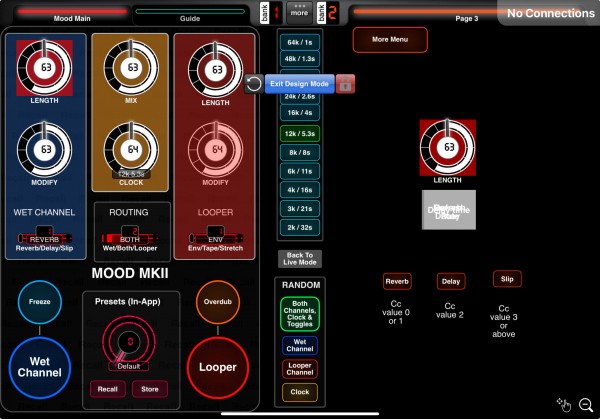

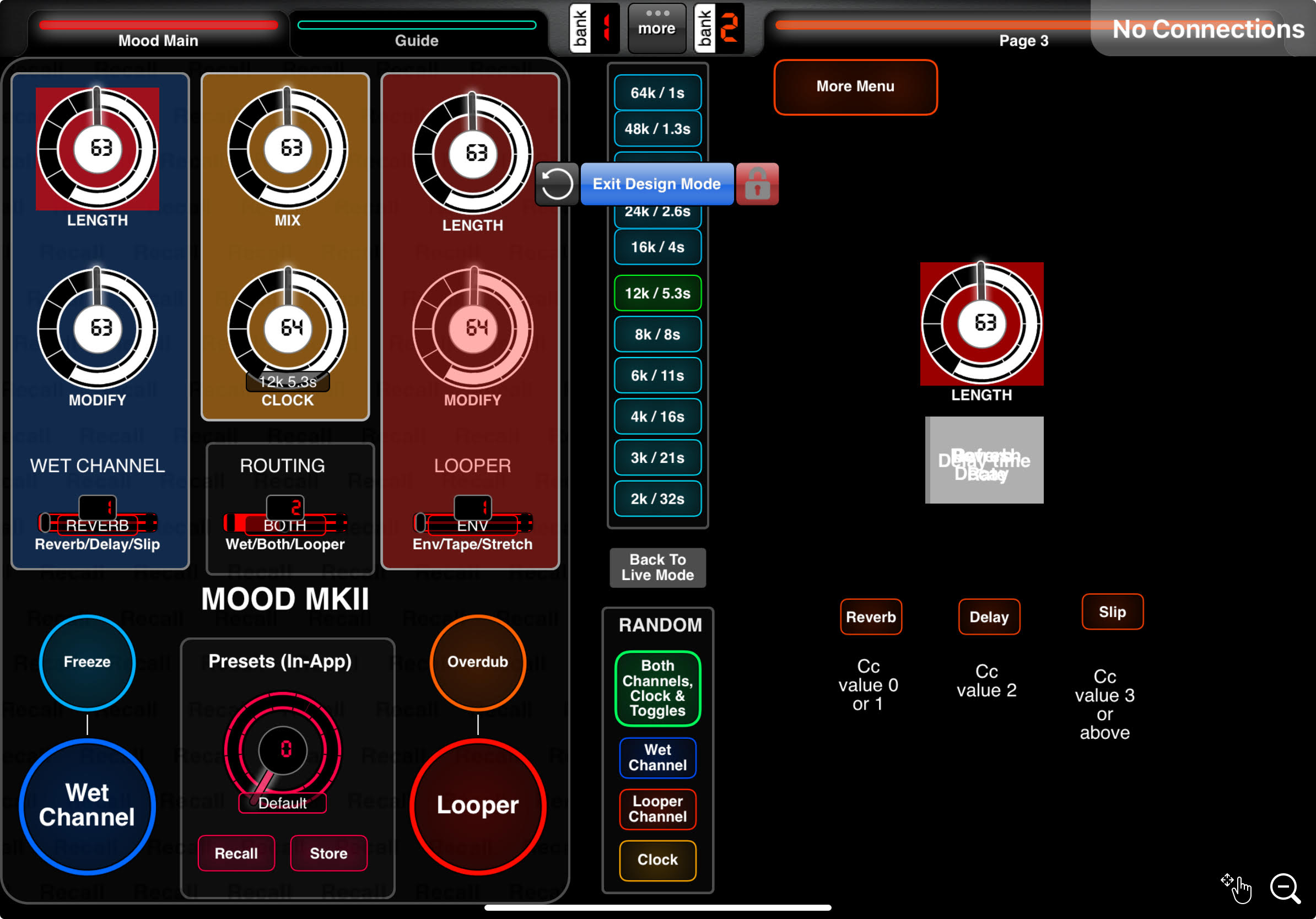

In the attached file you'll see the first page of the old layout for main controls on the left. On the right is my attempt to try and get this working. As you'll see the mode selection on the pedal is a toggle switch and there is only an on CC value

Cheers!

Downloads: 287
2023-09-19-Mood MKII.mididesigner
Downloads: 287

Images


Answer 1

1.  https://mididesigner.com/wiki/doku.php/manual:08_relationships_2#button_groups

2.  In our backlog (https://mididesigner.com/support/requests/).  As a workaround, hide the control label, use a stand alone label with label value source set.

Answer 2

1.  https://mididesigner.com/wiki/doku.php/manual:08_relationships_2#button_groups

2.  In our backlog (https://mididesigner.com/support/requests/).  As a workaround, hide the control label, use a stand alone label with label value source set.
