Layout for the KORG DW 8000by andyv

Question

Silver

MIDI Target Manufacturer(s): Korg

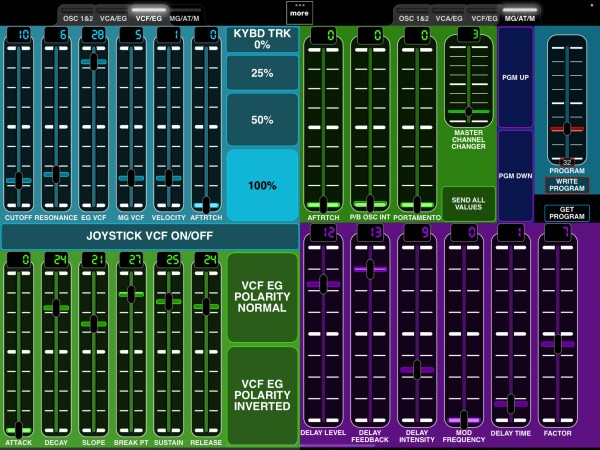

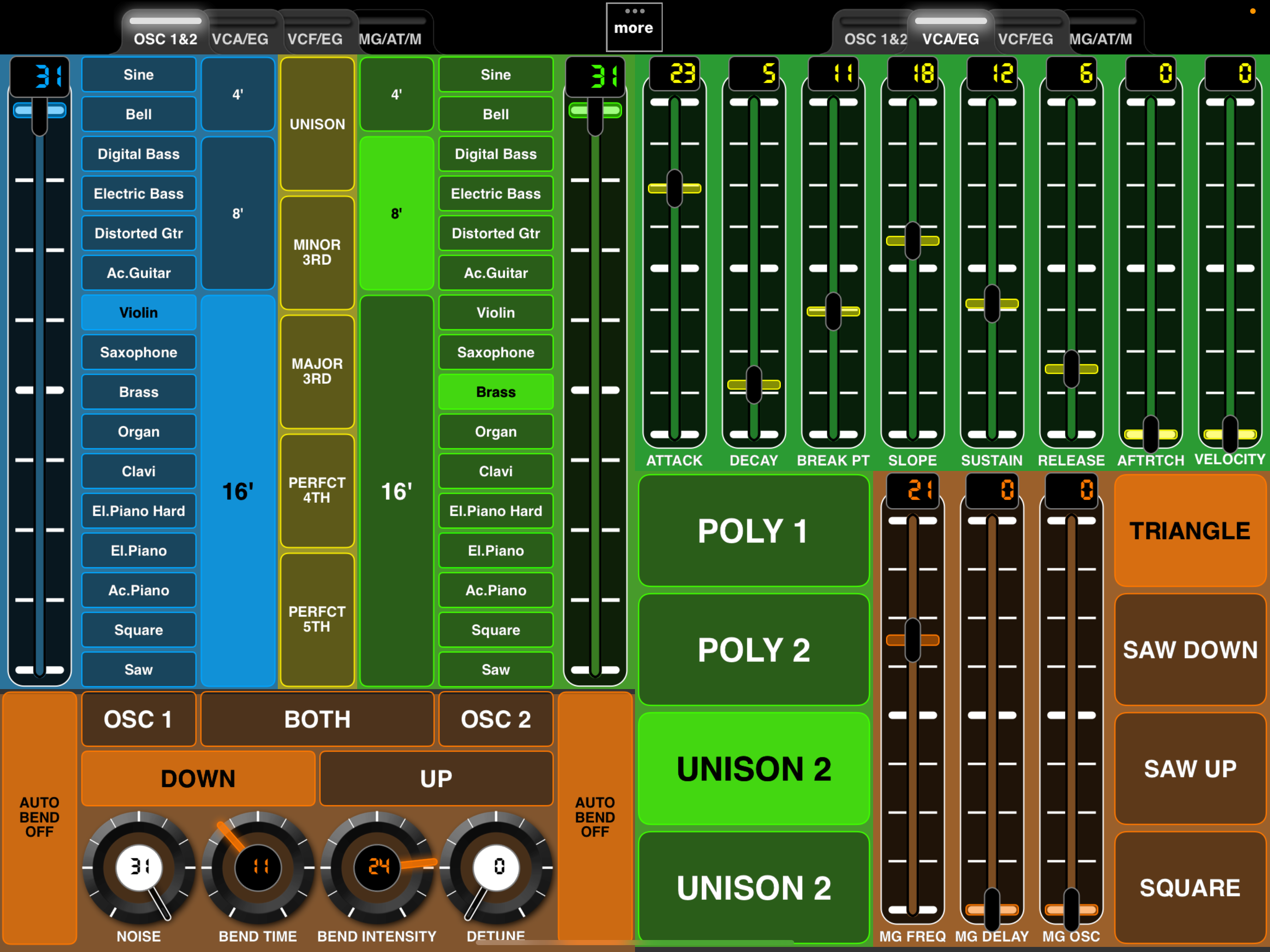

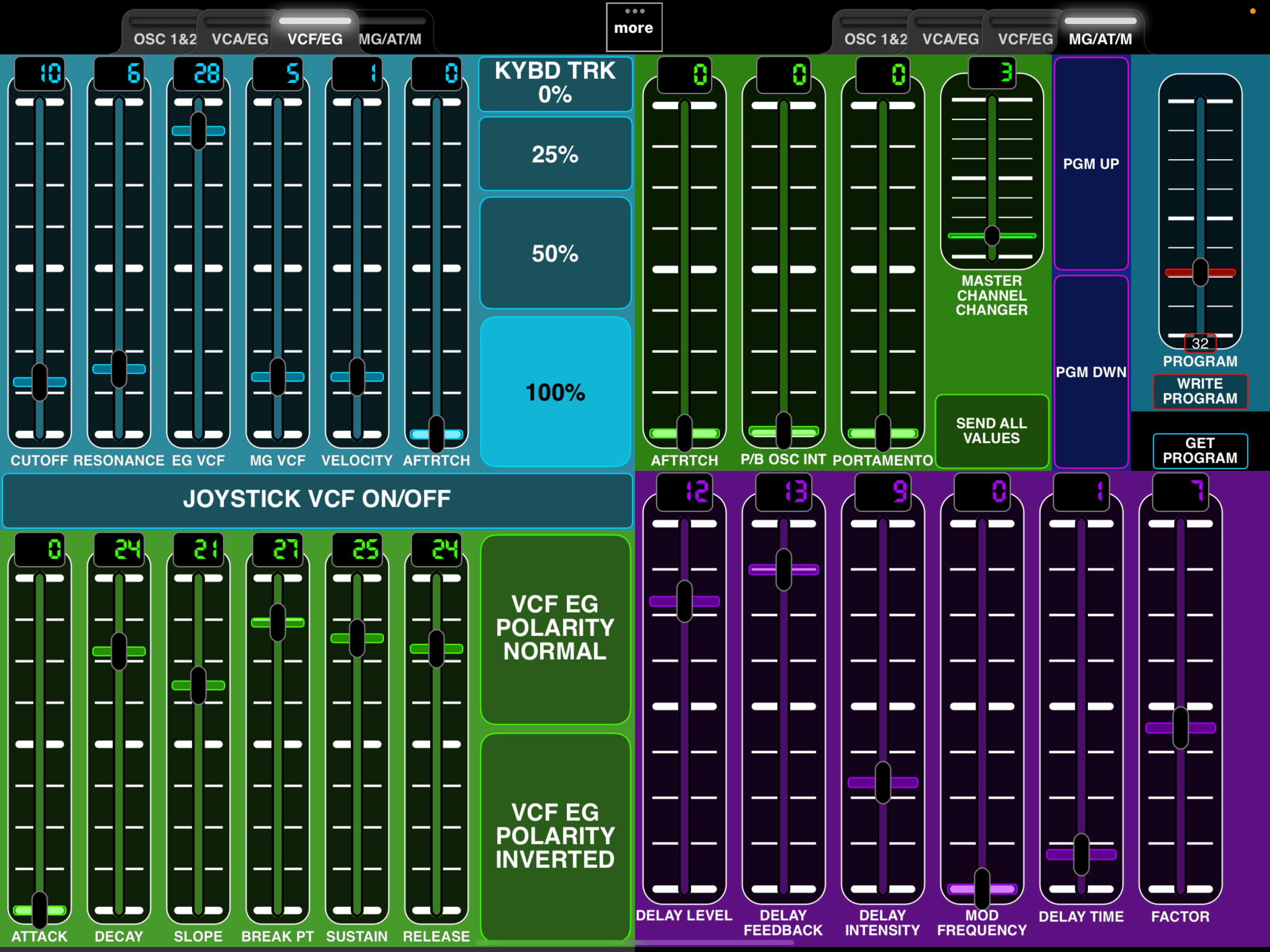

Here is an adaptation of the EX8000 layout originally from user ‘popup’.

 This layout is for the keyboard version, the DW 8000.

 All midi controls are set to receive on channel 4.  Unfortunately I have not been able to figure out how to make a channel changer control work with the system exclusive messages that the DW 8000 receives for parameter changes see picture below.   If anyone has a workaround for the channel changer function please post it here.

Cheers!

andyv

Downloads: 603
Layout for the KORG DW 8000 Rev A - Here’s the latest revision to my layout for DW8000. This adds the capability to request a parameter dump as well as save all parameters to the selected patch. Cheers andyv
Downloads: 61

Images

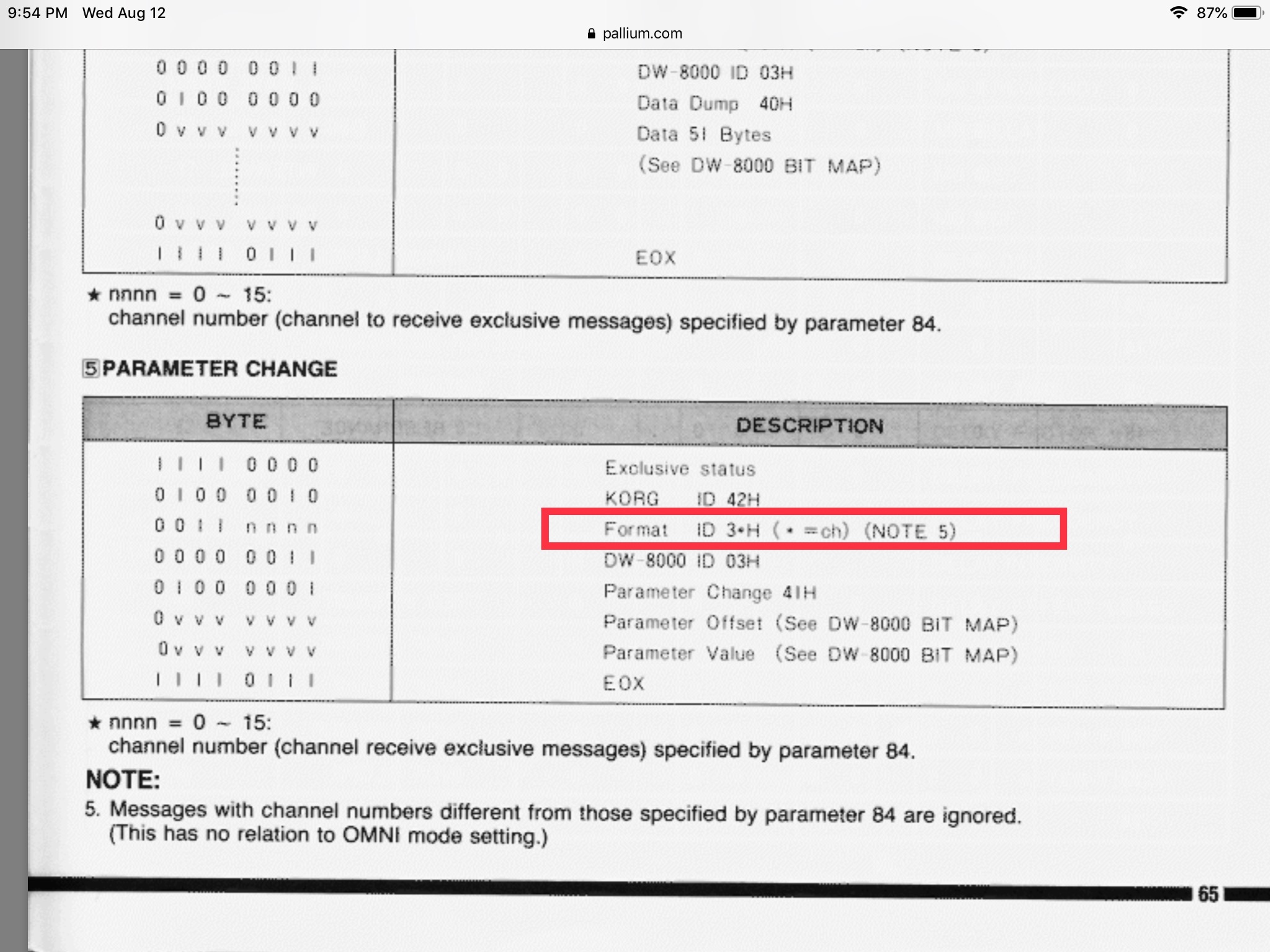

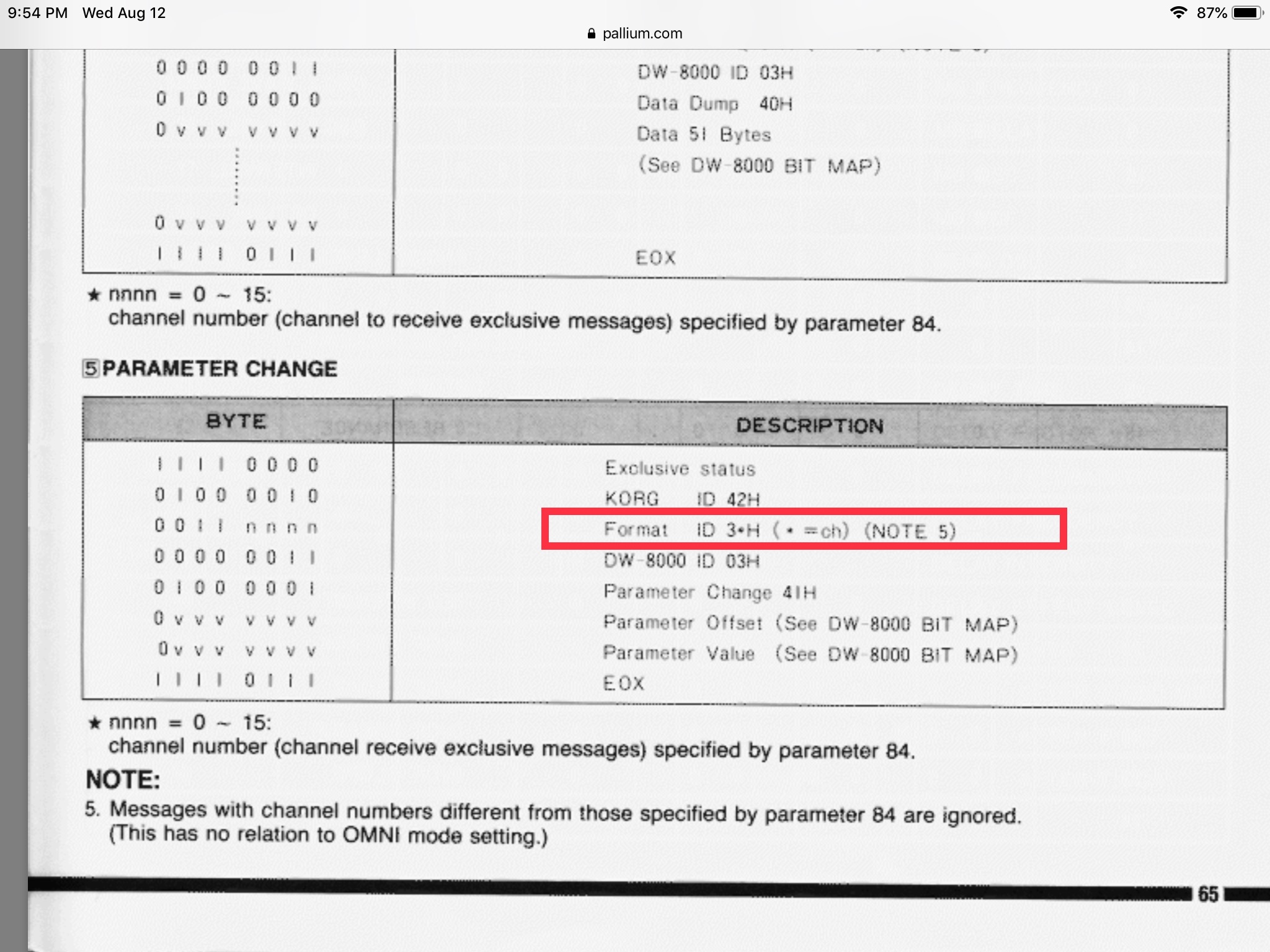

DW8000 ParameterChange sysex



Comments

Thanks for sharing, this looks great! I'll comment on the answer to the question about channel changers too.

Answer 1

The documentation shows F0 42 3n 03 41 xx yy F7.  Translated to DMP2 speak: 42 L 03 41 xx V, where xx is the parameter number.

The channel format is shown as 3nh, or 30 to 3F.  So the channel changer for this control needs to have a midi min of 48, max of 63, 16 ticks, display 1-16

I did not see a traditional channel changer for cc controls.  But but if you have one, it could be combined with a supercontrol.  Settings for this super control will be Midi 0 - 127, 16 ticks, display 1-16.

Comments

This answer is great. Just my repetitive notes: set up a layout with a Channel Changer and a single sysex knob to see how they work, i.e., lab it.

Answer 2

The documentation shows F0 42 3n 03 41 xx yy F7.  Translated to DMP2 speak: 42 L 03 41 xx V, where xx is the parameter number.

The channel format is shown as 3nh, or 30 to 3F.  So the channel changer for this control needs to have a midi min of 48, max of 63, 16 ticks, display 1-16

I did not see a traditional channel changer for cc controls.  But but if you have one, it could be combined with a supercontrol.  Settings for this super control will be Midi 0 - 127, 16 ticks, display 1-16.
