Layout for the KORG DW 8000 - MIDI Designer Q&A

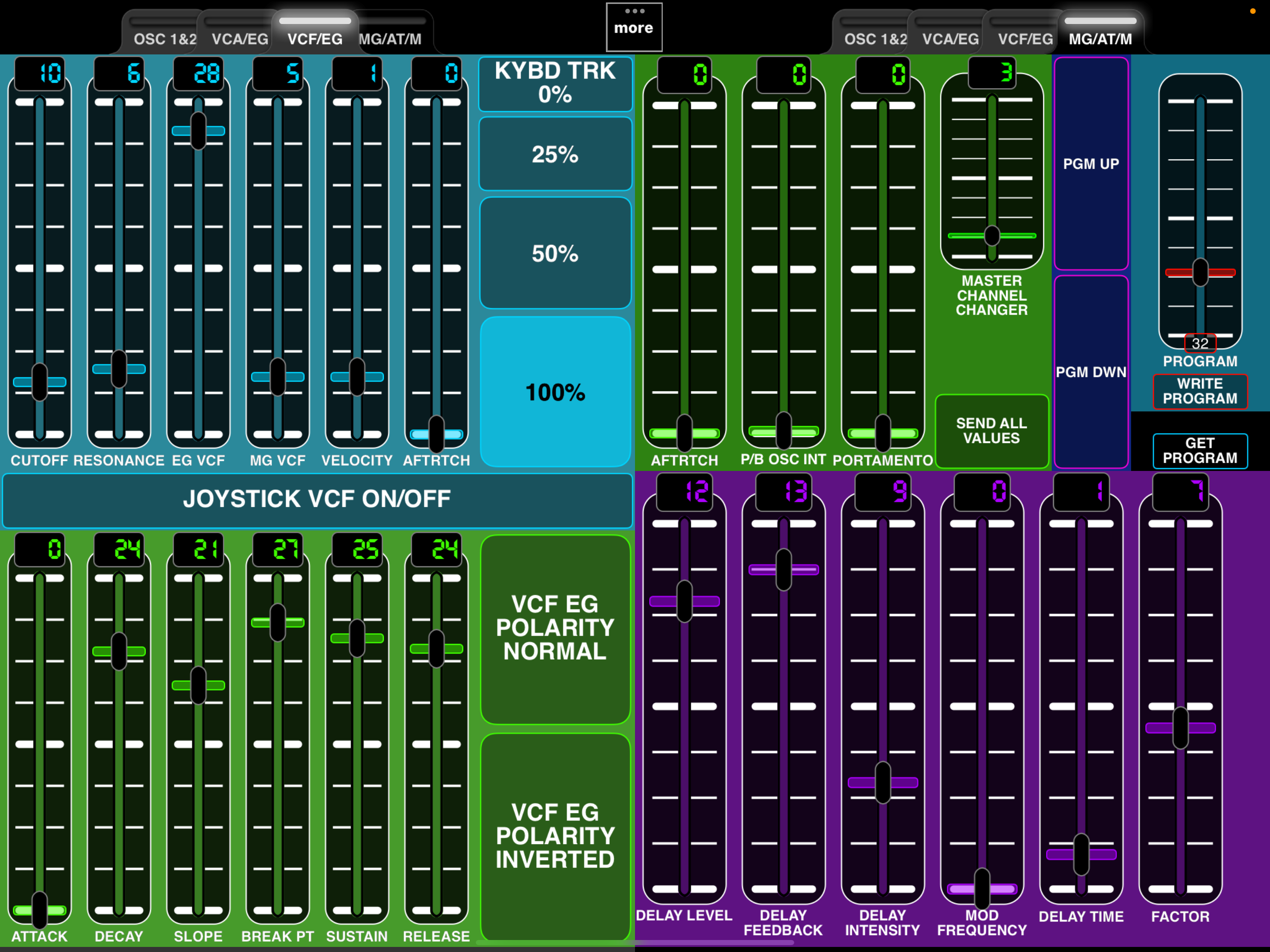

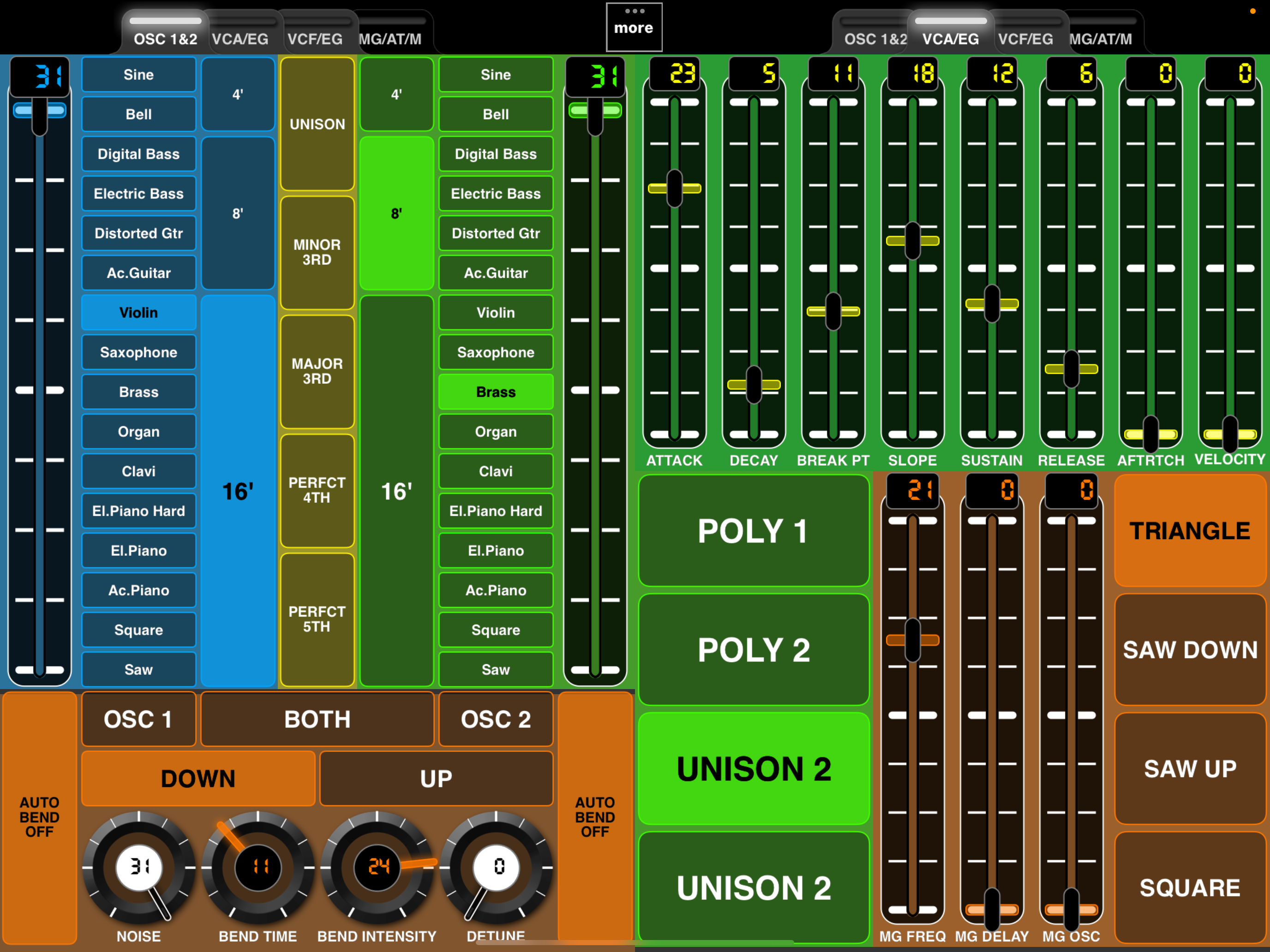

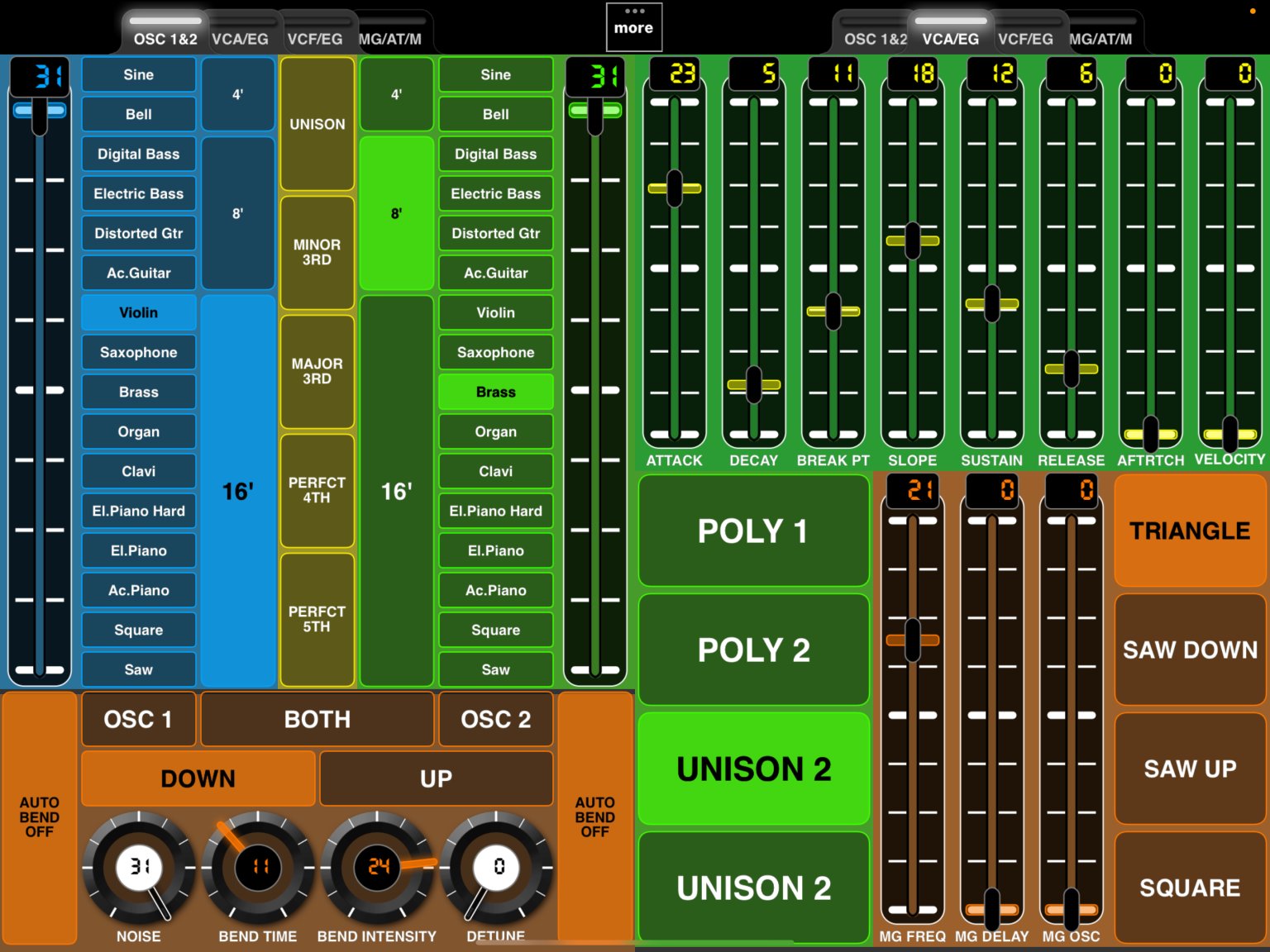

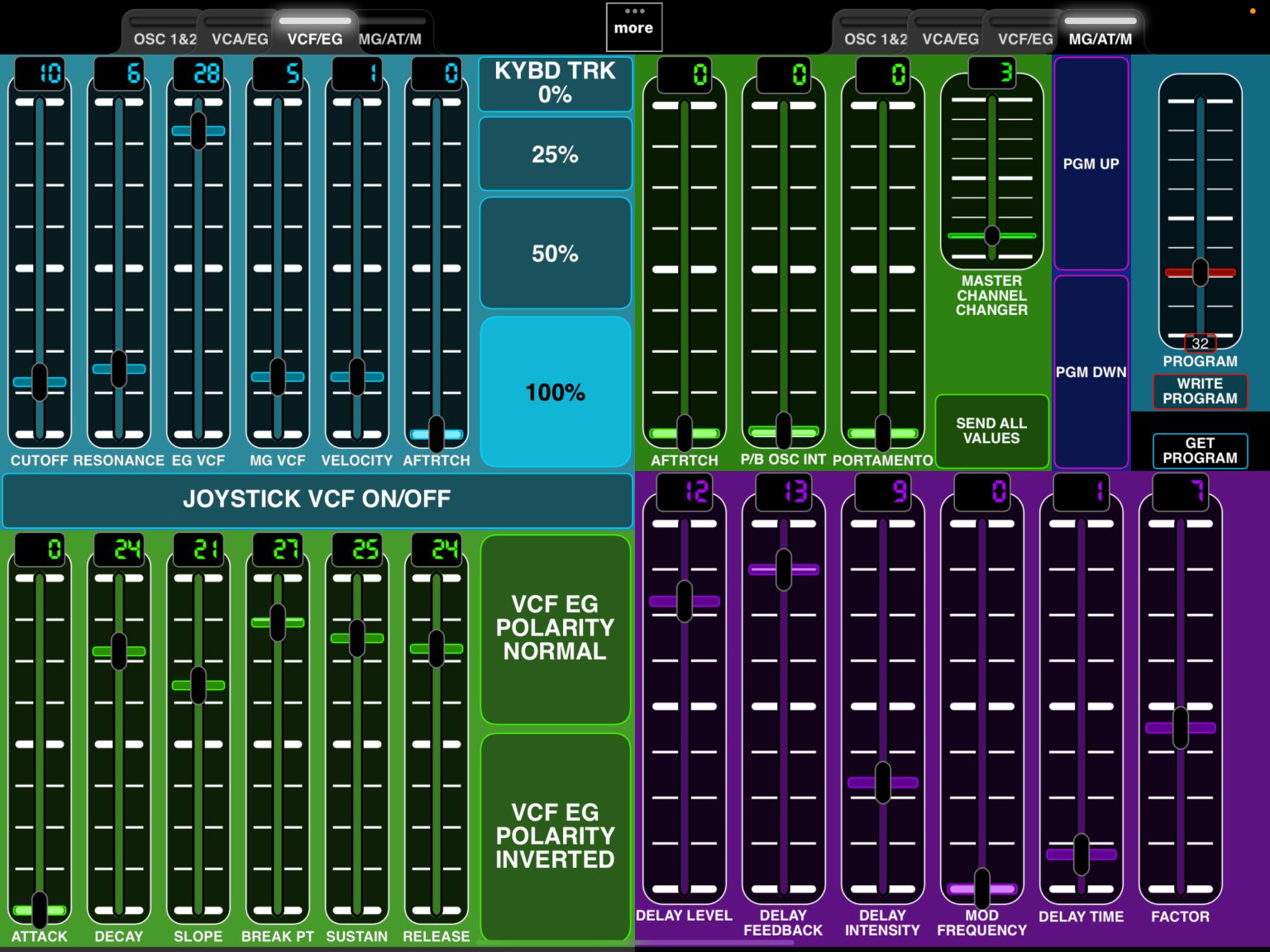

Rating: SilverLayout for the KORG DW 8000
by
andyv

+1 vote
Rating: Silver
Silver
asked Aug 13, 2020 in Community Shares by andyv (330 points)
Thanks for sharing, this looks great! I'll comment on the answer to the question about channel changers too.

1 Answer

0 votes

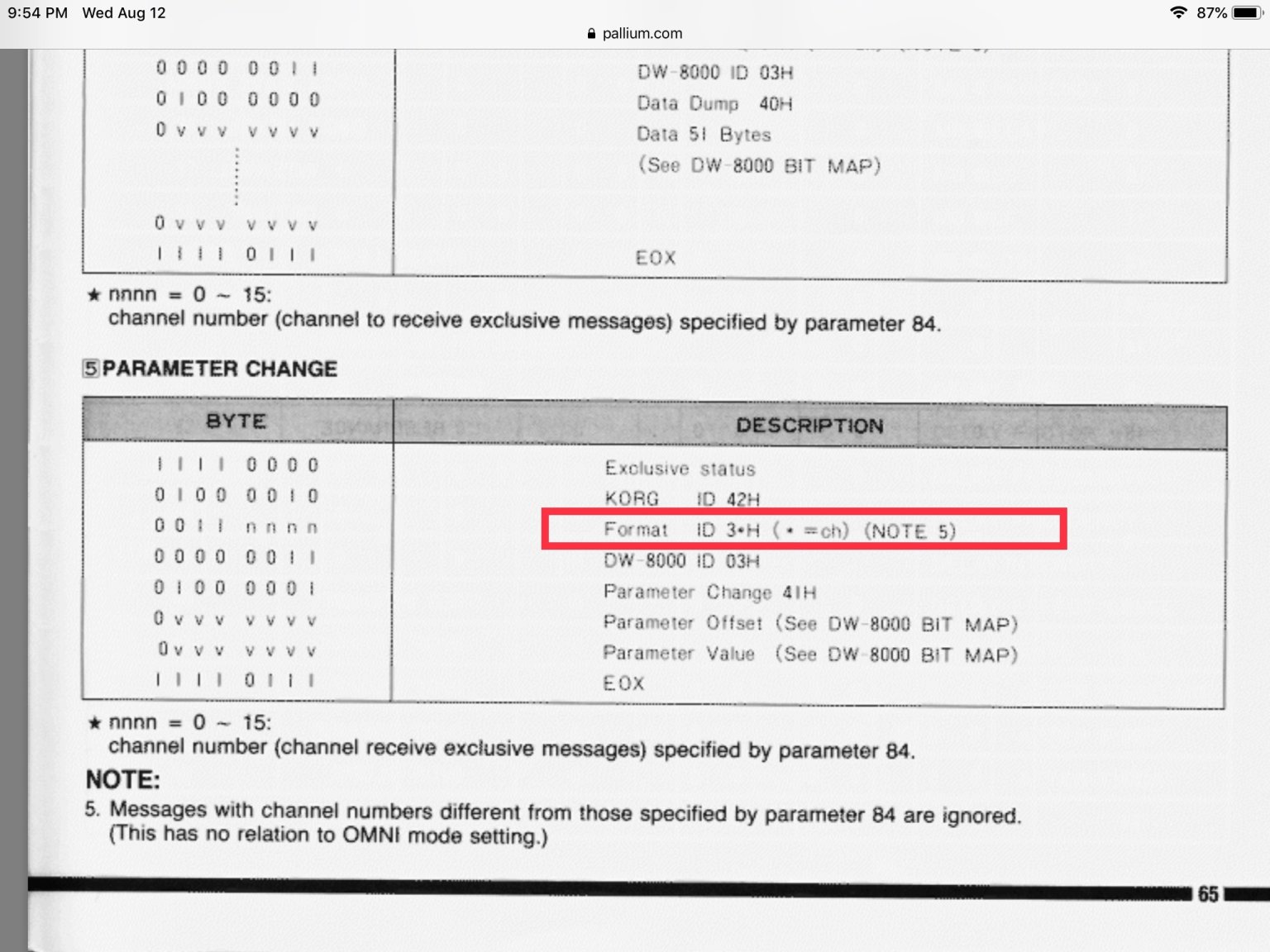

The documentation shows F0 42 3n 03 41 xx yy F7.  Translated to DMP2 speak: 42 L 03 41 xx V, where xx is the parameter number.

The channel format is shown as 3nh, or 30 to 3F.  So the channel changer for this control needs to have a midi min of 48, max of 63, 16 ticks, display 1-16

I did not see a traditional channel changer for cc controls.  But but if you have one, it could be combined with a supercontrol.  Settings for this super control will be Midi 0 - 127, 16 ticks, display 1-16.
answered Aug 14, 2020 by jkhiser (9,340 points)
This answer is great. Just my repetitive notes: set up a layout with a Channel Changer and a single sysex knob to see how they work, i.e., lab it.
...
