MIDI Target Manufacturer(s): Chase Bliss
How to use: 1) Install Midi Designer from the Apple App store 2) Download the layout file below and load it into the app 3) Open app menu -> config -> save layout. Optional - but it will save you a bit of time if you are switching layouts in future. This layout is set to midi channel 8 (info on changing this below)
UPDATES:
- 15th March: Fixed follow Midi Clock toggle
Connecting to the pedals:
- Wired: Plug your iPad/iPhone into a USB enabled midi device that’s hooked up to a Chase Bliss compatible Midi box. I have tested this with a HX Stomp.
- Bluetooth: I highly recommend the CME Widi jack. Use a midi box that's switchable to work with Chase Bliss pedals (Ring active). Because it's switchable you can then use any stereo TRS cable. I am using the Disaster Area Midi Box 4. Do not try using a Widi jack plugged directly into the pedal's midi input - it won't work because the TRS cable CME use is wired up the standard way.
Midi Channels: You can change these by going into design mode. Then double tapping each tab and going to the controls pane. Repeat the process for each of the tabs and banks
Presets:
- Saving in-app presets: Use the ticker to pick the slot -> Hit Save -> Label your preset
- Recalling in-app presets: Use quick toggle buttons below slider.
- Labelling preset toggles: 1) Go into 'Design Mode' 2) Tap the padlock to uncheck 'Others' (to allow changes) 3) Double tap the toggle to bring up a menu where you can title your preset button (if already unlocked you can skip the second action)
IMPORTANT:
- If you are adding in-app grouped presets, make sure you save your layout at the end of a session. This will write them to the layout file. Open the App Menu -> Tap Config -> Then tap Save Layout in the Actions Tab
- If you happen to open design mode you'll notice there's a lot of panels with controls that are hidden in play mode ( the yellow boxes). Don't delete them - they are super or sub controls, and necessary for mapping and functionality to work. Feel free to tweak other controls though - e.g if you want to change a colour/size, move them elsewhere or switch out a dial of a fader etc.
Me on Instagram: https://www.instagram.com/yaaasounds/
Disclaimers
- Chase Bliss have given me a thumbs up, but note this is a non-official layout.
- I am not connected to Chase Bliss, and I don't work for Midi Designer. I made this for my personal use, and thought I'd post it here so other people can enjoy using it
- For Midi Designer Pro app issues please contact the Midi Designer support team
- For issues with pedal hardware or software please contact Chase Bliss.
Images

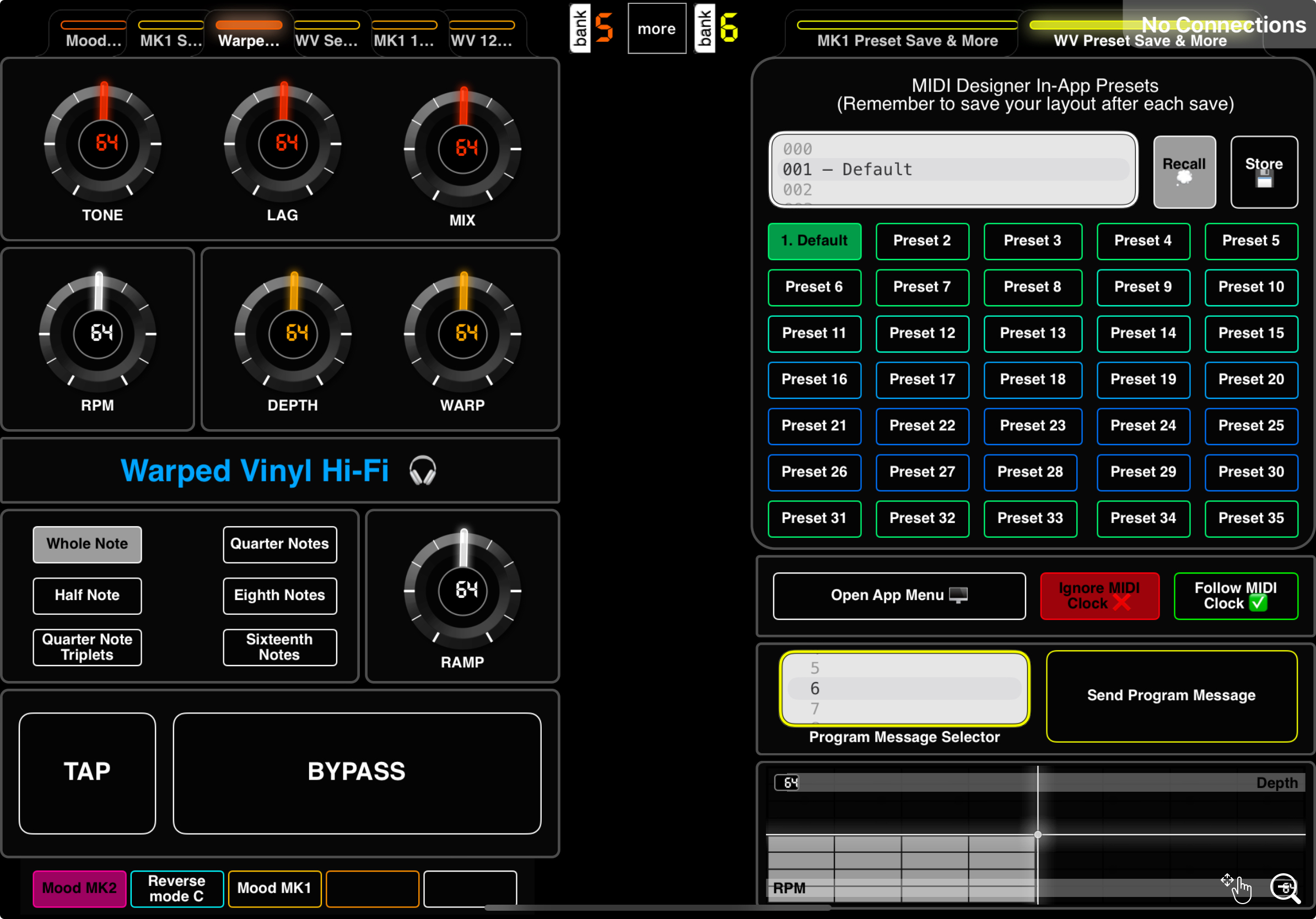

Chase Bliss Warped Vinyl Hi-Fi
