MIDI Target Manufacturer(s): Chase Bliss
Here is a layout to control the Chase Bliss Audio Gen Loss MkII pedal.
Huge thanks to yasir for the inspiration ! I used the layout he made for the Mood MkII, and learned a lot, using it as a base and modifying it to fit with the Gen Loss MkII. Checkout his other layouts too.
Few usage notes (copied from yasir mood mkII layout):

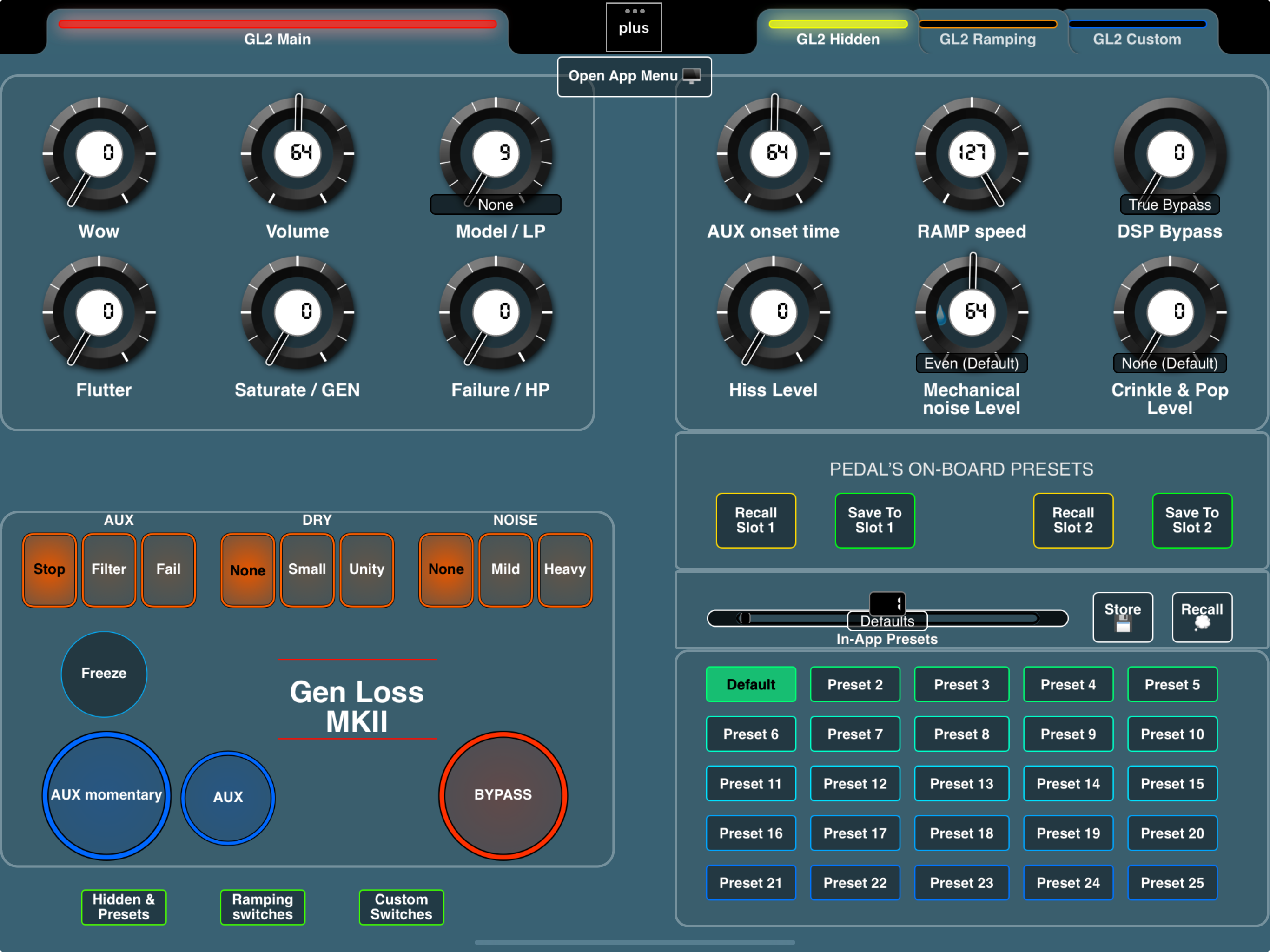

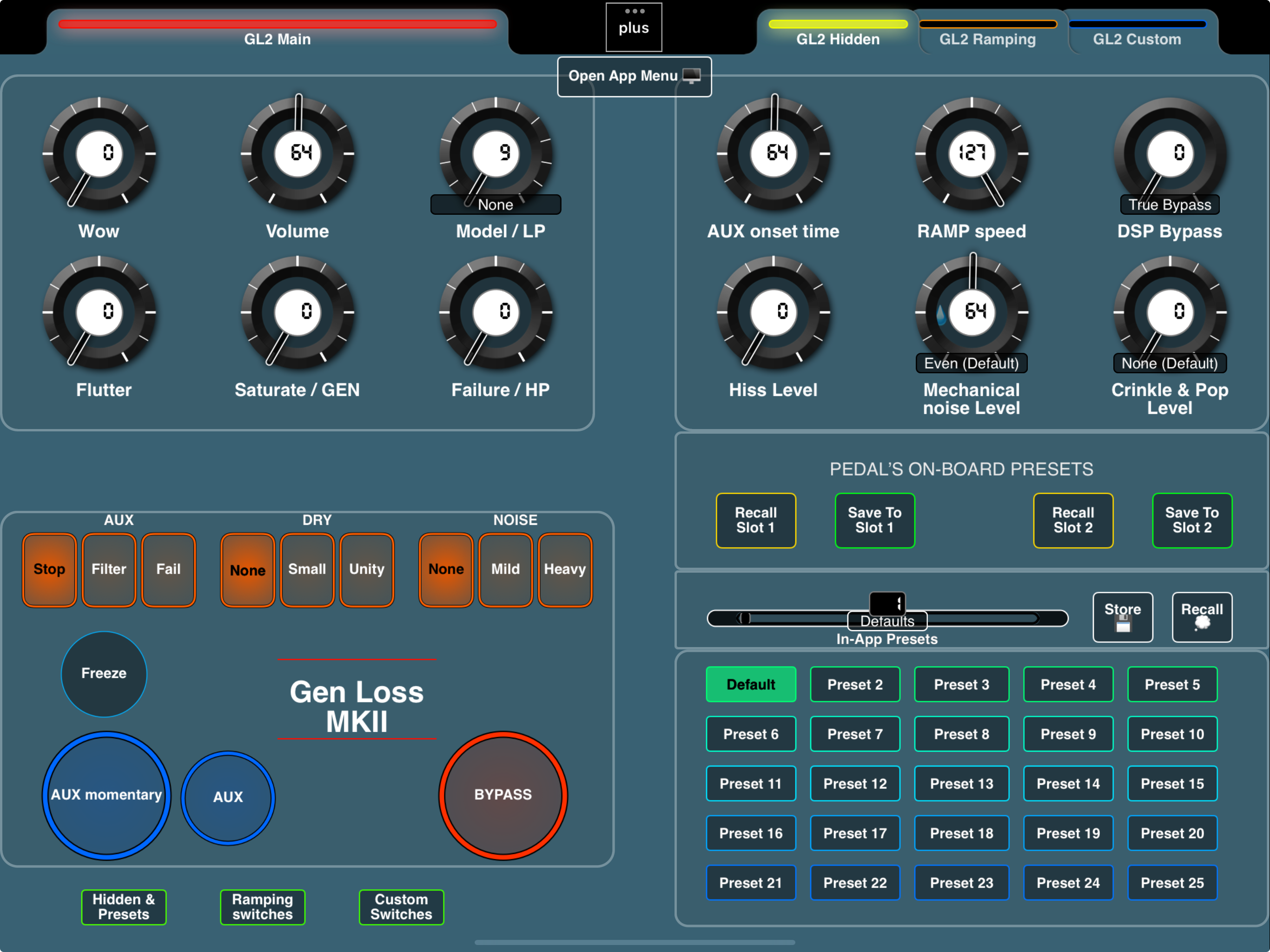

Saving in-app presets: Use the slider to pick the slot -> Hit Save -> Label your preset
Recalling in-app presets:
- Option 1 (Most useful): Use quick toggle buttons below slider.
- If you want to label the toggles: 1) Go into 'Design Mode' 2) Tap the padlock to uncheck 'Others' (to allow changes) 3) Double tap the toggle to bring up a menu where you can title your preset button (if already unlocked you can skip the second action)
- Option 2: Use the slider to go to the preset slot. Then tap 'Recall'.
IMPORTANT:
- If you are adding in-app presets, make sure you save your layout at the end of a session. This will write them to the layout file. Open the App Menu -> Tap Config -> Then tap Save Layout in the Actions Tab
- If you happen to open design mode you'll notice there's a lot of panels with controls that are hidden in play mode ( the yellow boxes). Don't delete them - they are super or sub controls, and necessary for mapping and functionality to work. Feel free to tweak other controls though - e.g if you want to change a colour/size, move them elsewhere or switch out a dial of a fader etc.
Dip Switches: These work by sliding your finger over the control from left to right.
----
Midi Channel: It is set to 6. You can change it by going into design mode. Then double tapping each tab and going to the controls pane. Repeat the process for each tabs with controls on them.
