I would like to choose the styles of my Tyros via Sysex

Question

MIDI Target Manufacturer(s): Yamaha

Hello,
I would like to be able to choose the styles of my Tyros via Sysex ;
Style : F0 43 73 7C 11 00 16 01 00 F7
            F0 43 73 7C 11 00 16 dd dd F7
            F0 43 73 7C 11 00 16 (Bank) (N°) F7
I'd like to use one multiple label to change the bank and another to select the style N° in its respective bank.
How can I create a relationship between these two labels via the super controls so that when I choose (for example) Bank 0 I can choose Style N°s from 1 to 50, for Bank 1 > Style N°s from 1 to 50 and so on.
NB: the Style No. must be set to 1 when I change bank.
The screenshots are in the jpg files.

Thank you in advance for all your help.

Downloads: 54
LAYOU Yamaha Tyros 1 HPC.mididesigner
Downloads: 24

Images

Style Bank

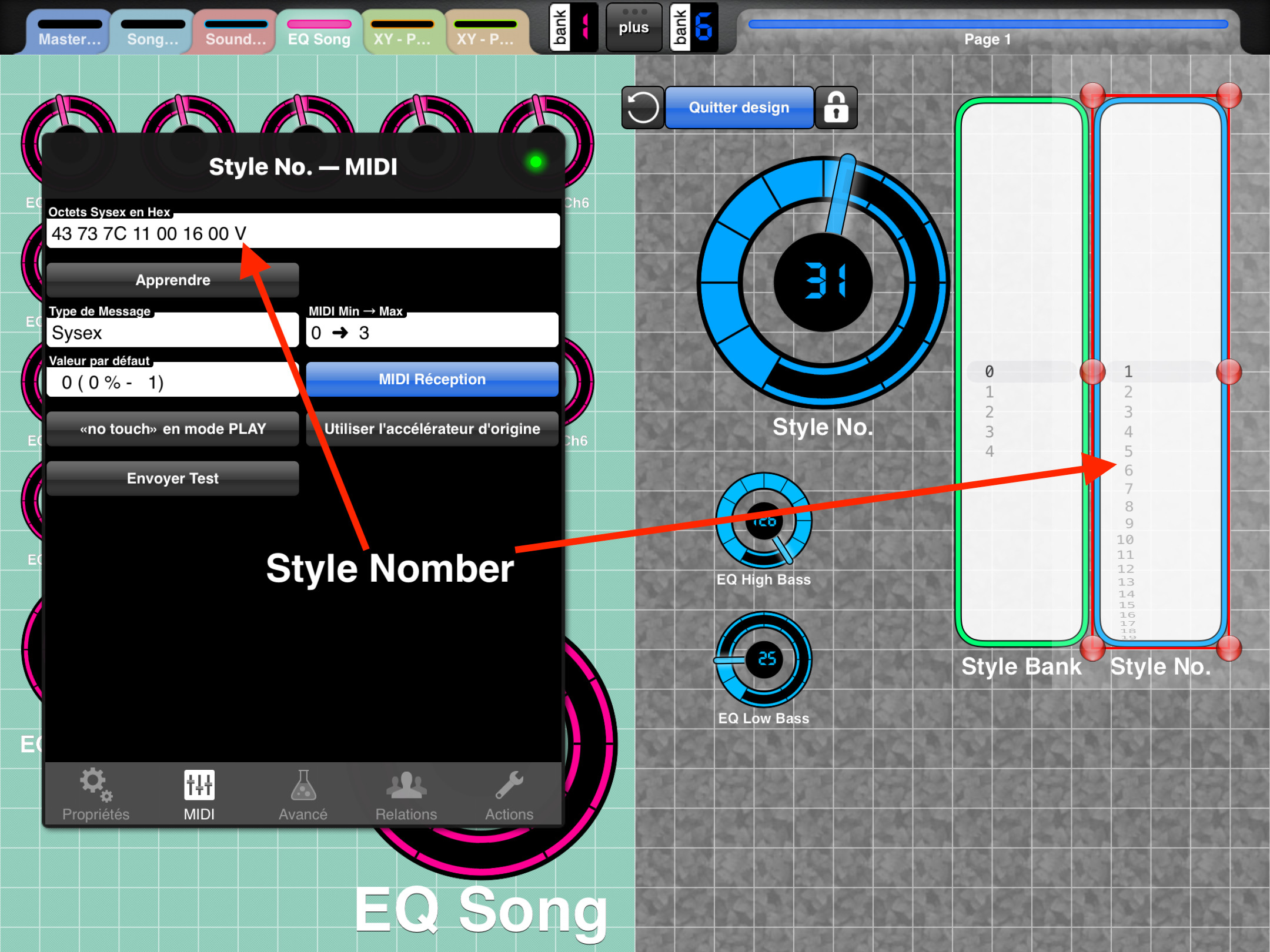

Style Nomber

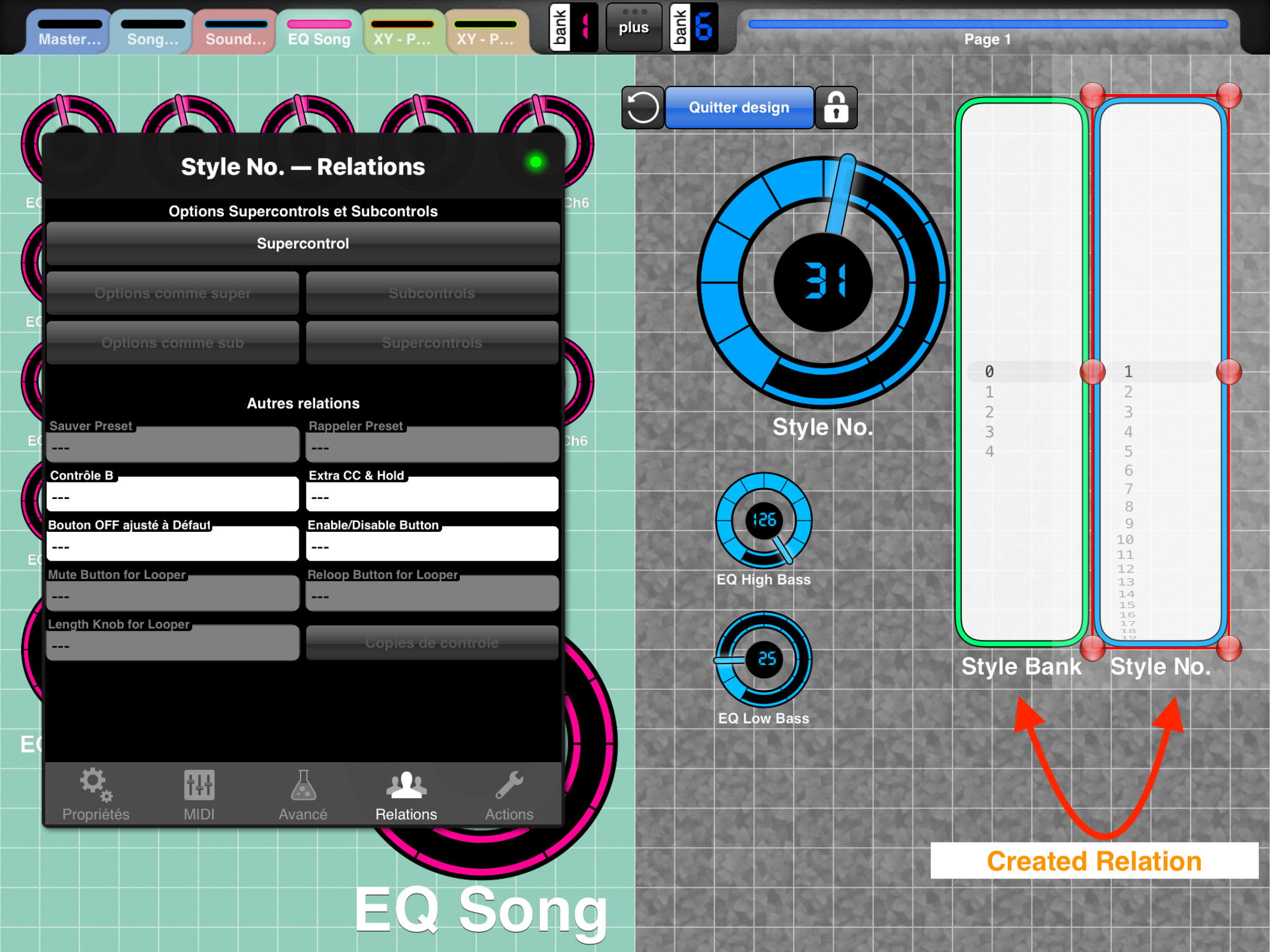

Supercontrols

Comments

So you want the choices for the second picker to reflect the position of the first picker? Initially I can’t think of a workaround to do it, but others might have a workaround, at least not one that allows for different sets of named ticks to be displayed. If it’s just a MIDI thing on the other hand I think channel changer can do what you need DRAFT

---

I modified the sysex in Style bank
Byte N°8 > L, Byte 09 > 01: I want Style Nomber to change to 01 each time I change bank.
43 73 7C 11 00 16 L 01
and in Style N°
Byte 08 > L, Byte 09 > V
43 73 7C 11 00 16 L V
How can I change the channel N° in the "Style Bank" label?
and how do I get this channel No. into Style No.?

---

Hi, there,
Could you please edit the Layout file for me (attached) as I can't get it to work.
Depending on what you suggest as a solution.
Thanks in advance

Answer 1

Change BANK type to Channel Changer (do not accept the recommendation to change MIDI values and ticks).
- Do not accept the prompt to change values and ticks
- Make STYLE a subcontrol of BANK

STYLE SysEx value should be 43 73 7C 11 00 16 L V

To have STYLE reset each time BANK is changed:
- create a new button, no MIDI transmit/receive
- BANK - select this button under EXTRA CC and HOLD
- STYLE - select this button under BUTTON OFF RESETS TO DEFAULT, select the desired reset value on the MIDI tab

Once this is working, you can HIDE the reset button in play mode, or leave it visible as a reset button

Comments

Hi, there,
Could you please edit the Layout file for me (attached) as I can't get it to work.
Depending on what you suggest as a solution.
Thanks in advance

---

The uploaded file is only presets. Need the layout file to take a look.

---

Hello jkhiser,
I hadn't seen your message.
Here it is, I've uploaded the correct Layout file

---

one correction above - the bank control has to be a channel changer to pass the L value

Answer 2

Change BANK type to Channel Changer (do not accept the recommendation to change MIDI values and ticks).
- Do not accept the prompt to change values and ticks
- Make STYLE a subcontrol of BANK

STYLE SysEx value should be 43 73 7C 11 00 16 L V

To have STYLE reset each time BANK is changed:
- create a new button, no MIDI transmit/receive
- BANK - select this button under EXTRA CC and HOLD
- STYLE - select this button under BUTTON OFF RESETS TO DEFAULT, select the desired reset value on the MIDI tab

Once this is working, you can HIDE the reset button in play mode, or leave it visible as a reset button
