Auto Build StreamByter SysEx Bulk Data Message Decode

Question

MIDI Target Manufacturer(s): Original, Generic

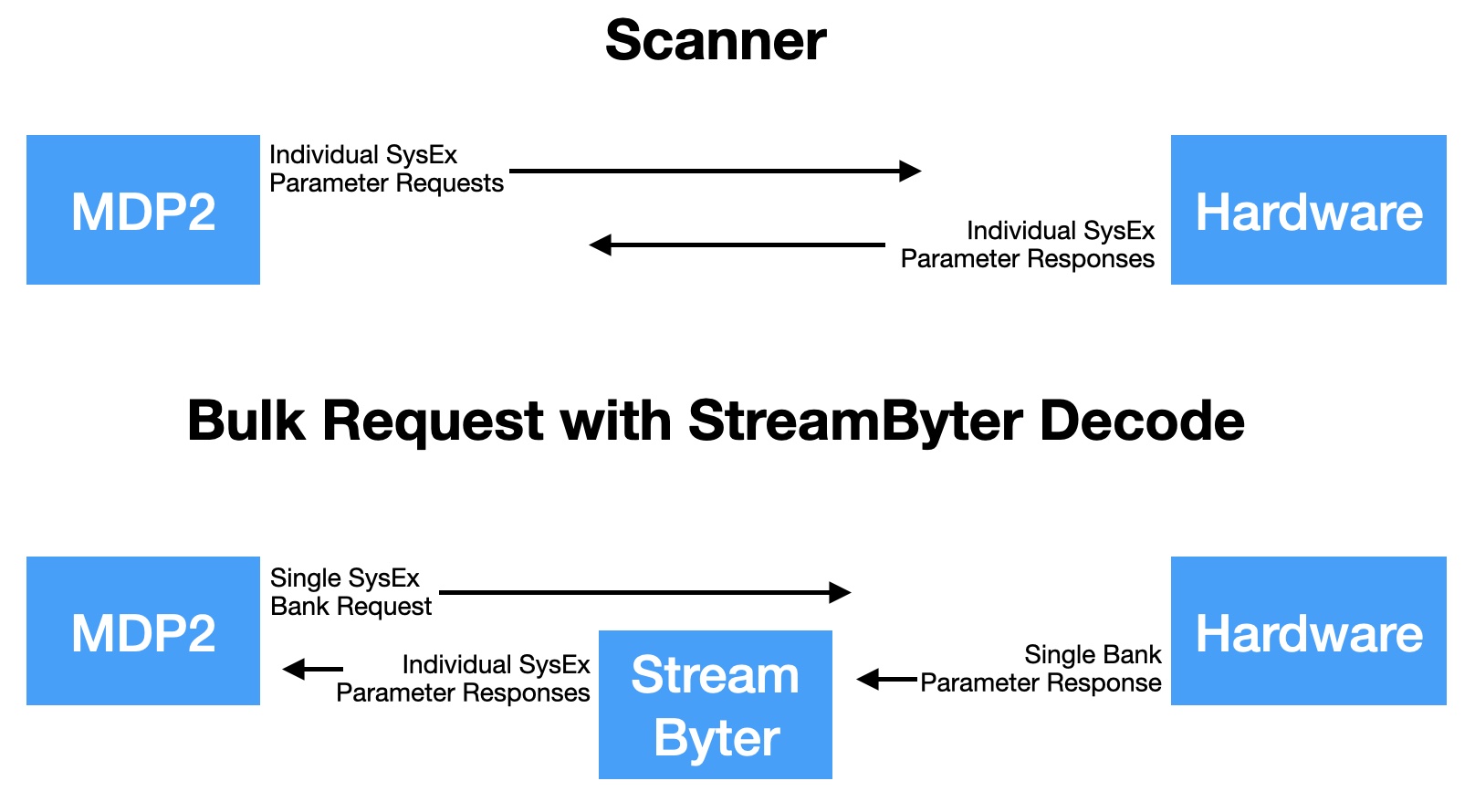

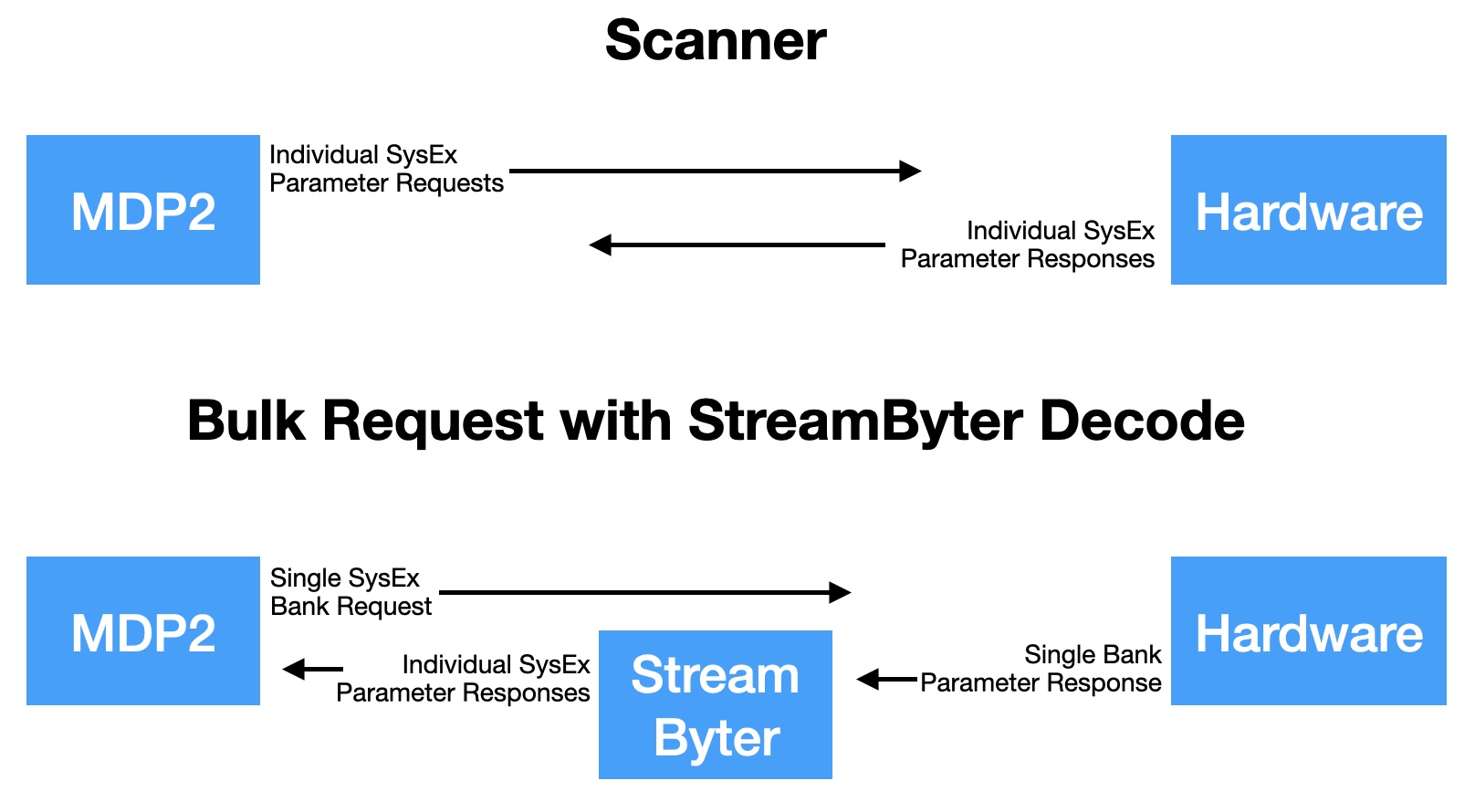

MDP2 layout functionality is improved when controls can be preset to match the hardware settings.  For hardware using SysEx control, you can build a SysEx scanner that queries individual parameter values or request a bulk dump.  In either case, there is detailed work to code either the scanner values or the individual StreamByter decode messages.

midiDr.com/qa/6964 discusses how to build a scanner to query the individual parameters.

This spreadsheet auto-builds the necessary StreamByter code to decode a bulk message, hopefully simplifying use of the bulk dump approach.

Instructions are in the spreadsheet, including sample wrapper StreamByter code necessary to implement.

This is in Numbers format, as I develop on a Mac.  I have no way to ensure that converting to Excel produces the same results.

Downloads: 285
StreamByter Auto Build.numbers.zip - This is a Numbers spreadsheet.
Downloads: 285

Images

SB Auto Build 0.jpg

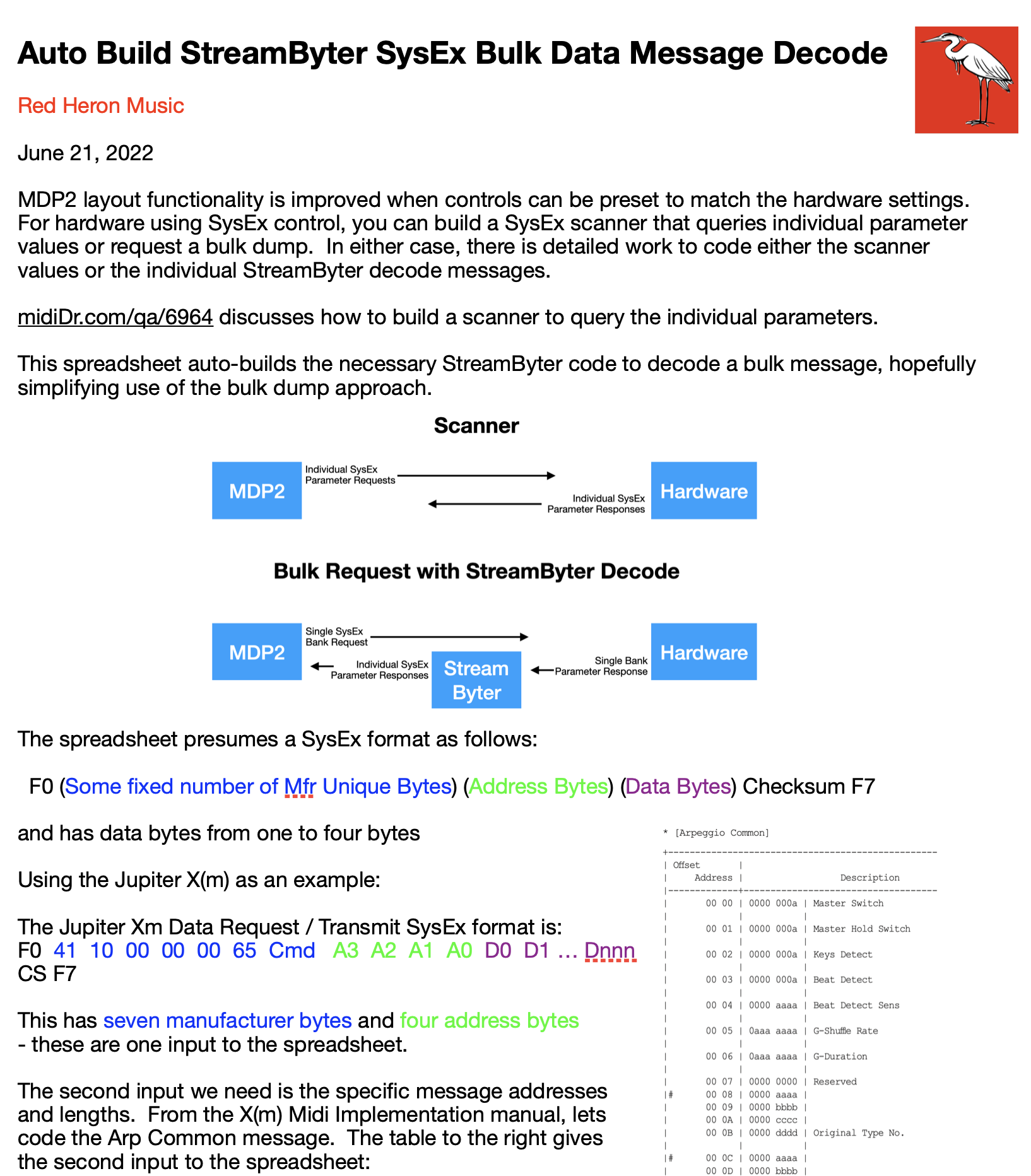

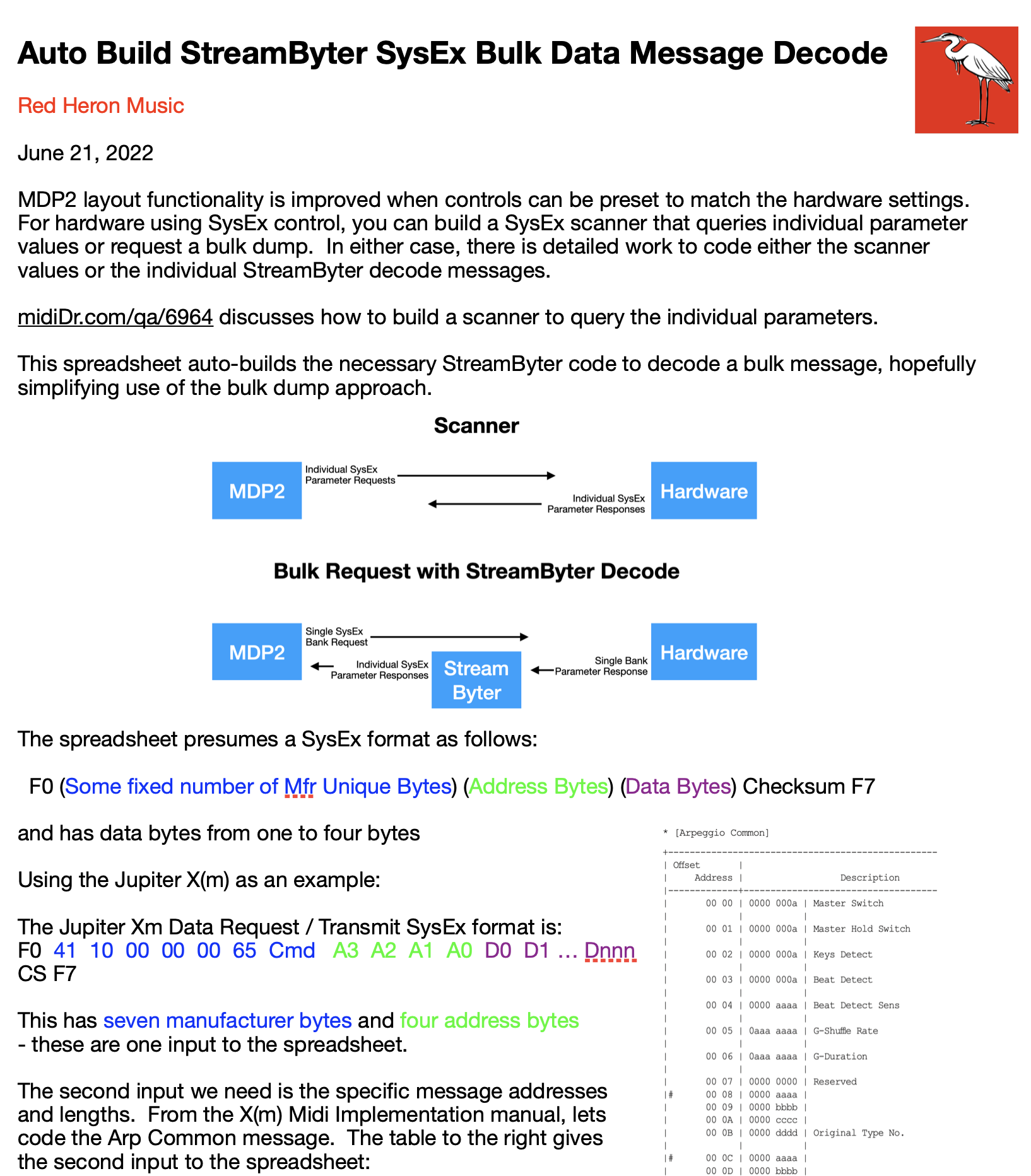

Instructions

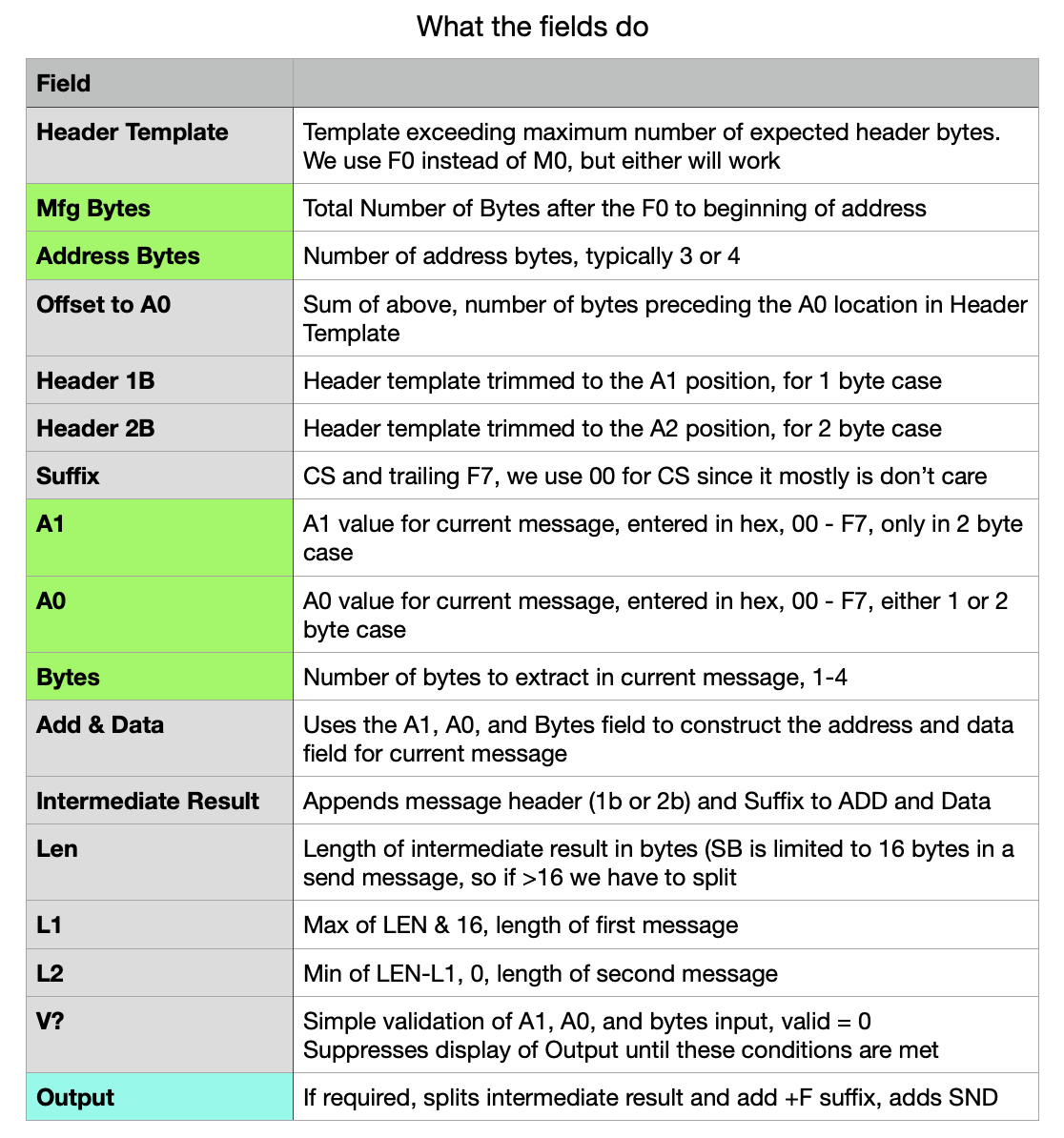

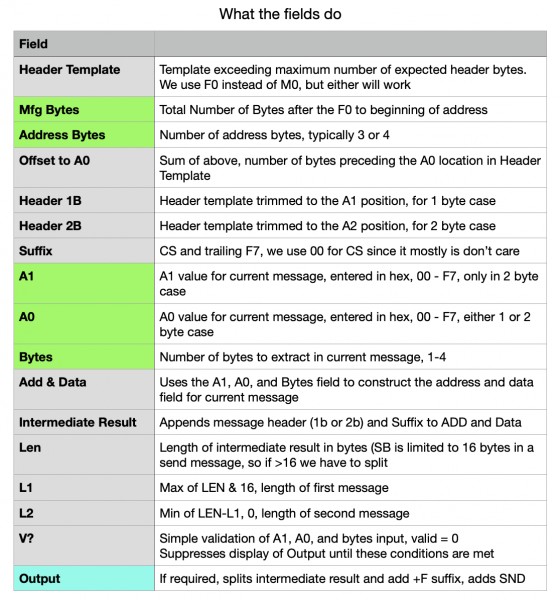

Field explanation - green is input, blue is output

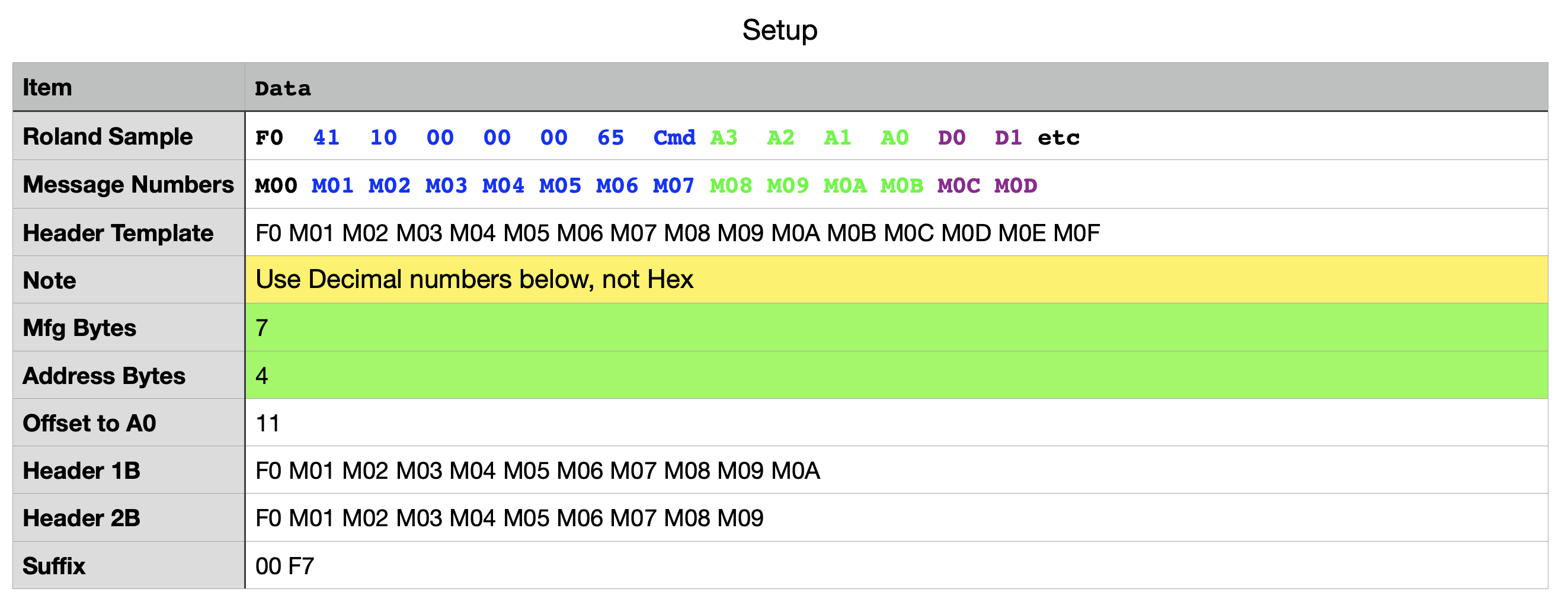

Setup message format

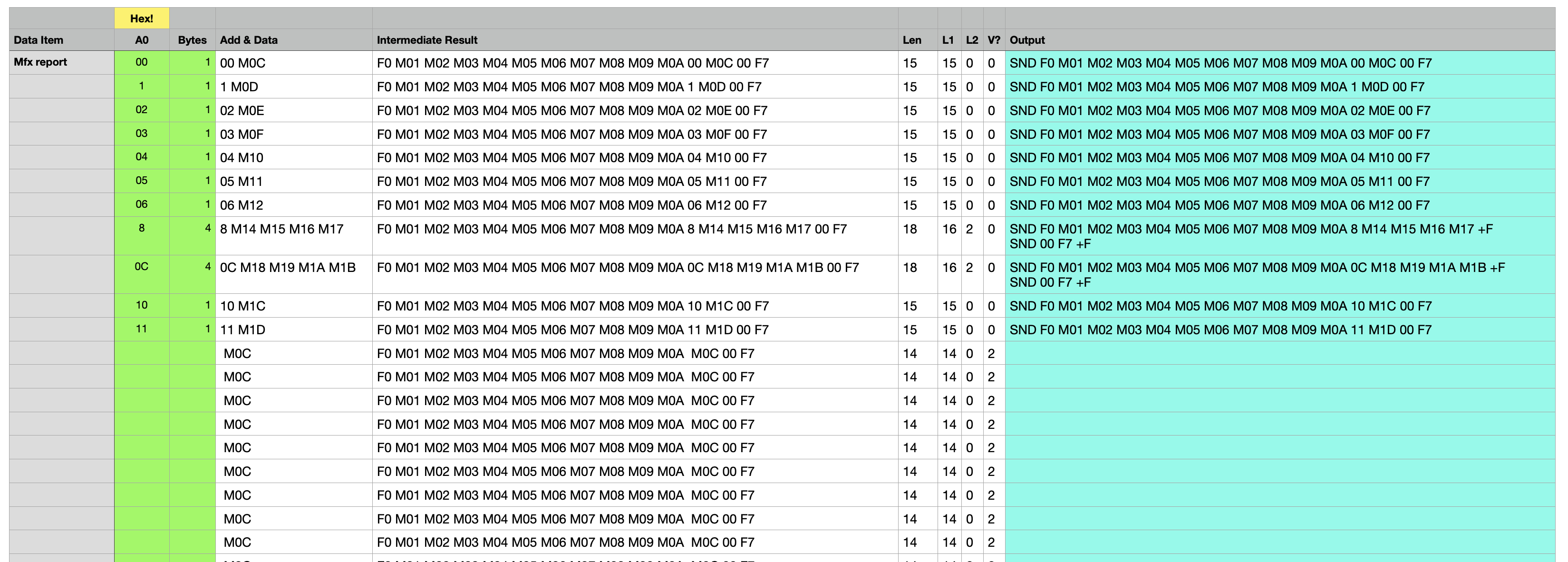

Enter addresses and lengths, copy output

Comments

Thanks for sharing this. It's the kind of resource that will prove its utility over time. It looks extensive, amazing and awesome.
