Layout: Jupiter X-Xm ToneWheel Organ Emulationby jkhiser

Question

Gold

MIDI Target Manufacturer(s): Roland

• ZEN-Core emulation of Tone Wheel Organ, with live drawbars and percussion controls
• Customizable organ settings.  Adjust drawbar tuning, noise, key click, etc.  Editor for VK Rotary Tone Mfx
• ~230 fixed drawbar presets, including many classic settings, 24 user presets

This layout sets up three ZEN-Core Tones in a Scene to emulate a Tone Wheel organ.  Nine oscillators provide drawbars, plus one each for percussion and TW noise.  The drawbars, percussion, and rotary speed can be controlled via midi.

The layout also provides an 838 + 4Up ZEN-Core organ tone.

You can save 9 drawbar organs in a scene & 3 tones, or craft a tone with 4 drawbars, or 3 drawbars & percussion.

Downloads: 812
Jupiter X-Xm ToneWheel 1.00
Downloads: 812

Images

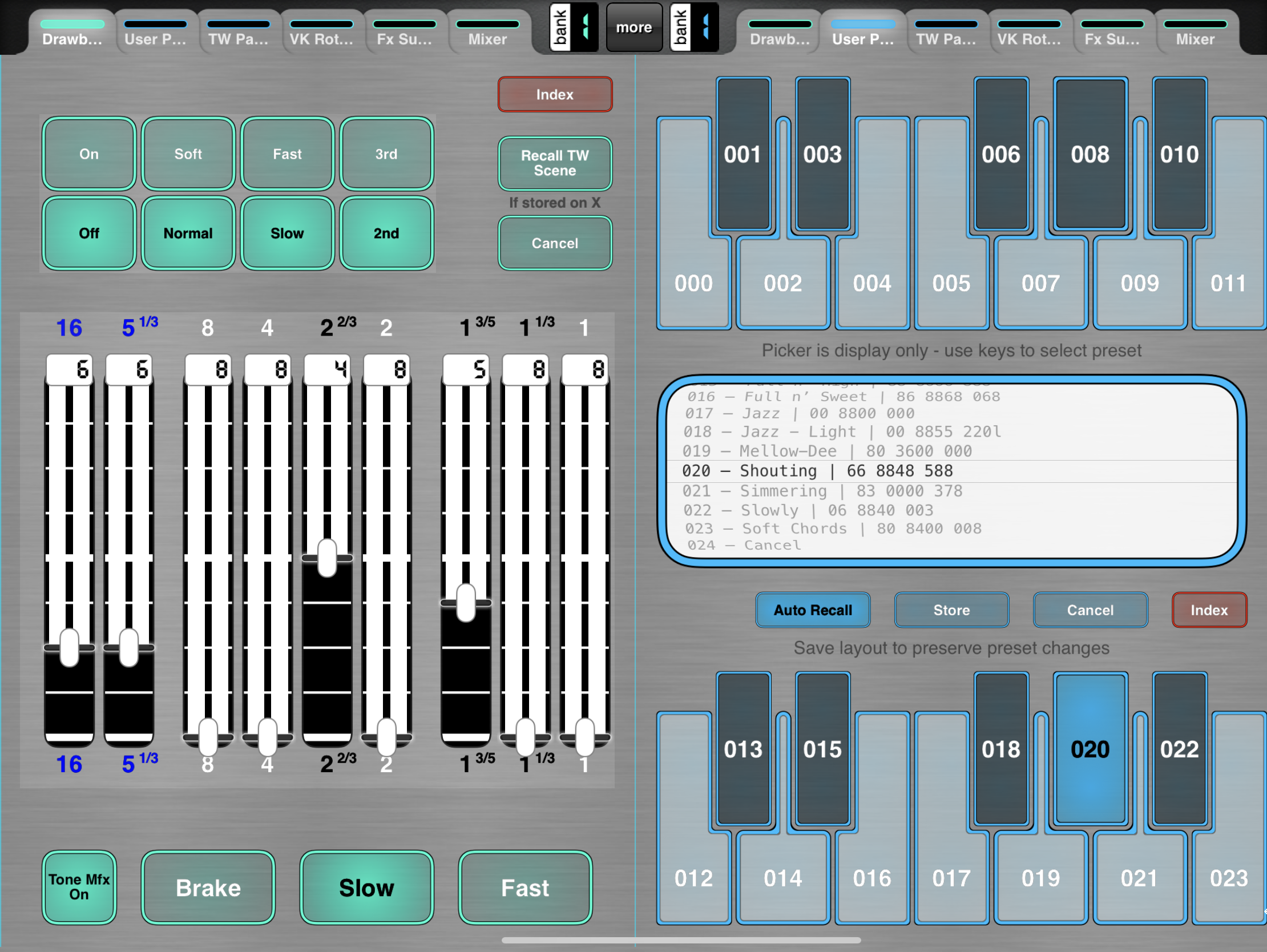

Drawbars, percussion, rotary controls | 24 User presets in style of old organ reverse keys

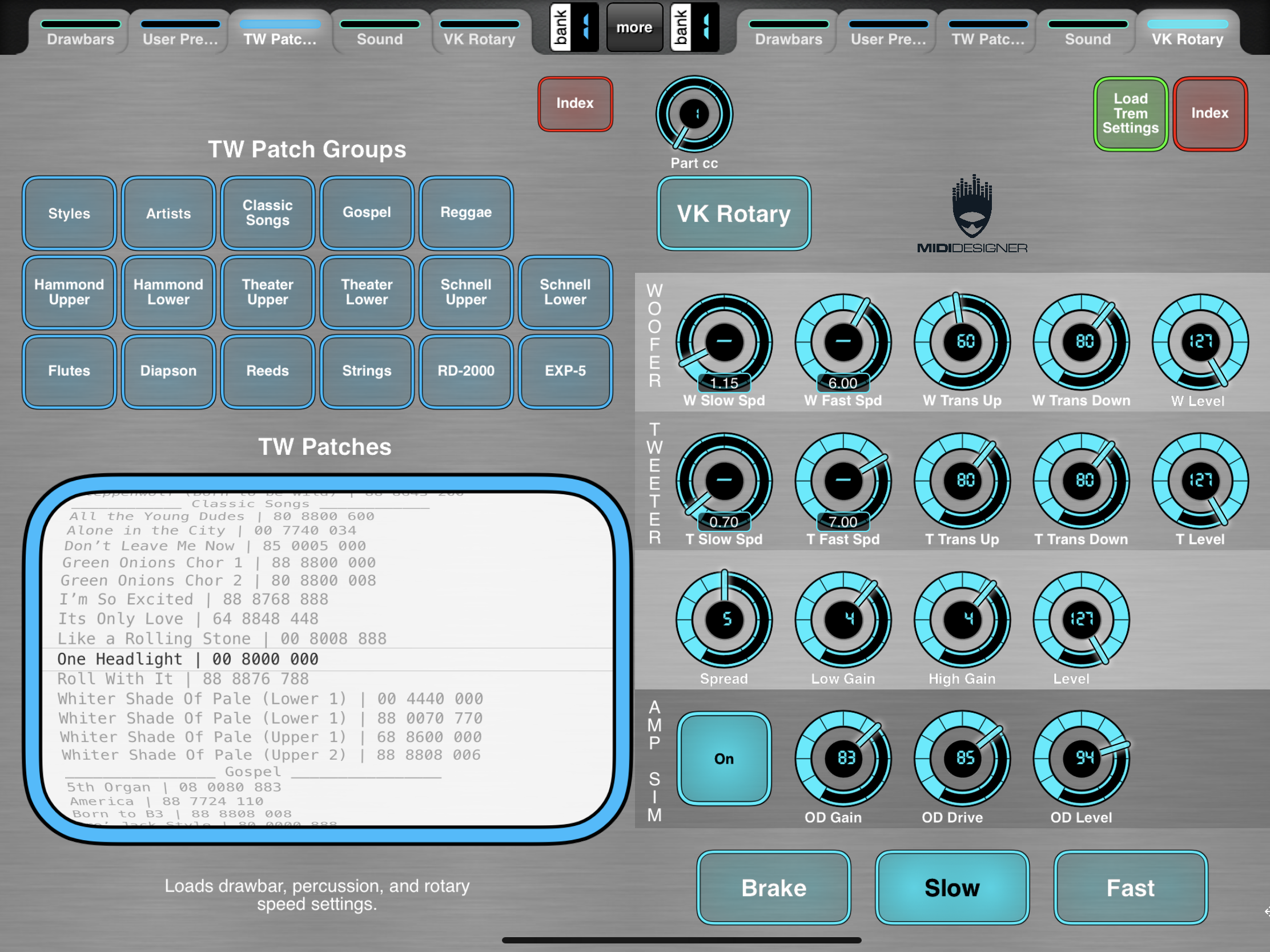

230+ classic organ presets | VK Rotary Editor

Organ Drawbar Tuning (w presets | Organ Design (w presets)

Setup Page, load scene & tones, other settings | Load 838+4Up Tone, remap percussion

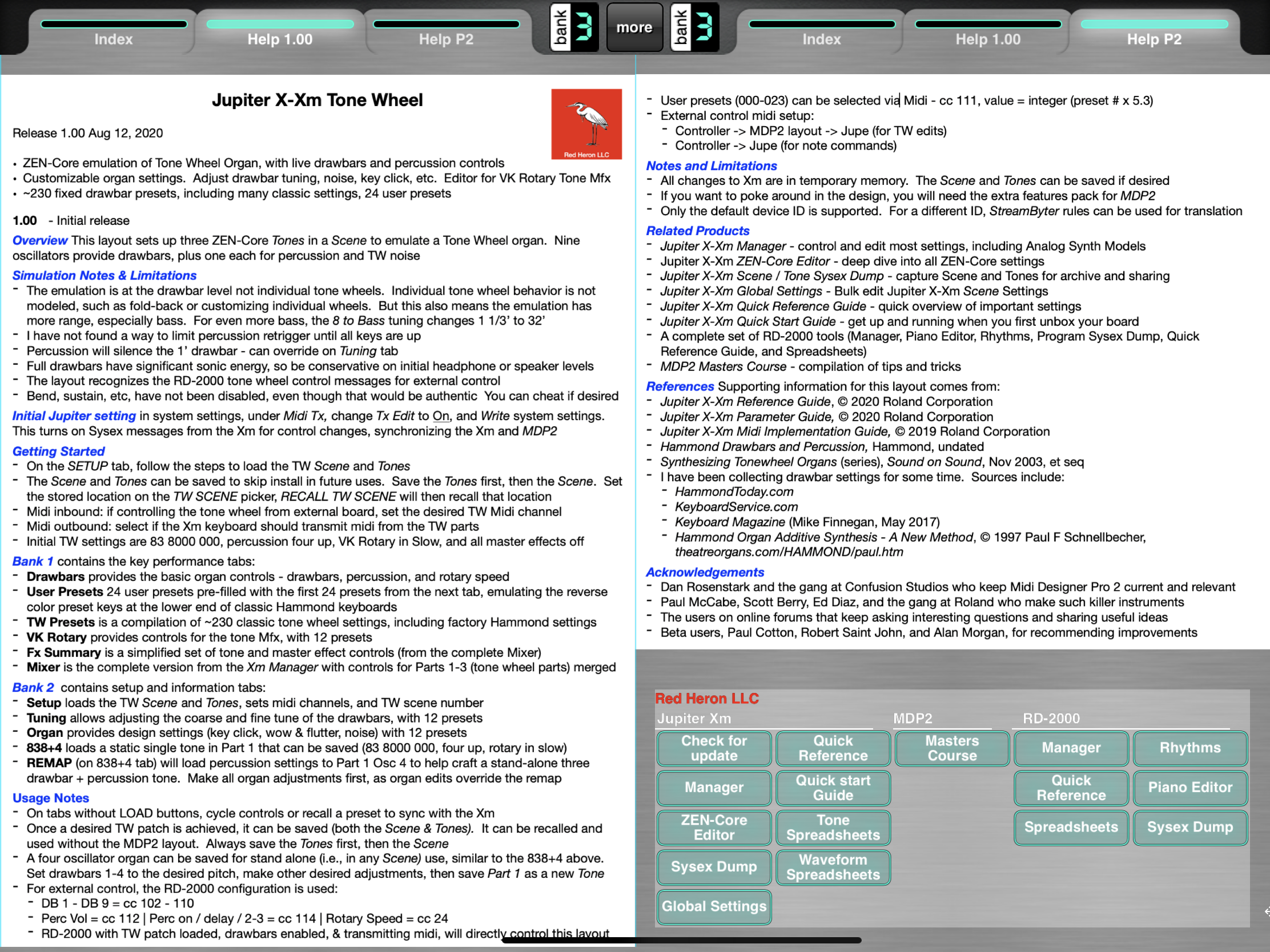

Help
