Novation MiniNova Synth Editor | Full (98%) Engine Access by haQ attaQby jakobhaq

Question

Gold

MIDI Target Manufacturer(s): Novation

NOTE! This template was made for iPad and will not display properly on iPhone

Hello there MiniNova lover, Jakob haQ from haQ attaQ here. I want to thank you for checking out this midi controller template and I hope you spread the word about it to other MiniNova users. This one is one of the biggest ones I’ve made so far during all my years working with synthesizers. I spent about 8-10 hours each day that I worked on this. About 40 days in total spread out over the year (2018) amounting to about 350 hours of hard core template building.

Now I tried to make this template 100% complete but was unable to due to some functions not working correctly, or some functions that just didn't make any sense to map out.

Here’s what’s missing:
Modulation ctrl
Breath ctrl
Expression ctrl
Keyboard octave switch
Vocoder spectrum resampling ctrl
Chorder keyboard ctrl
Tweaks ctrl menu
Global MIDI channel selector
Patch bank selector
Patch/Preset selector

You can find out more about my reasoning regarding why I left out some controllers in this video where I’m going through the template:

-ISSUES-
There are some issues when controlling the template from the MiniNova itself related to some of the buttons (buttons using the NRPN address MSB 0 - LSB 122). When activating these buttons from the MN interface all of the buttons on the template with this address will activate. It’s a real pain. I could fix this by deactivating the “MIDI read” option for these buttons, but I haven’t done that yet because I’m still pondering adding a “fetch patch data” option for the template. I order for such a function to work I need all controllers to have the “MIDI read” activated.

The only way of getting around this completely right now since these buttons do read MIDI, is to not connect a midi in cable from the iPad to the MIDI out on the MN at all. All programming has to be done from this MIDI Designer Pro template. I’ll look into this issue and I hope there’s another way of solving it in the future.

/Jakob HaQ
haQ attaQ

Downloads: 3435
Novation MiniNova Synth Editor controll for iPad - Ver6.0
Downloads: 3437

Images

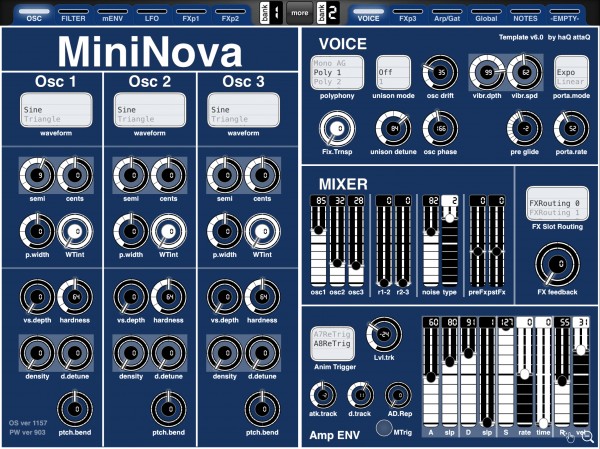

MiniNova synth editor for ipad - Osc and Voicing pages.png

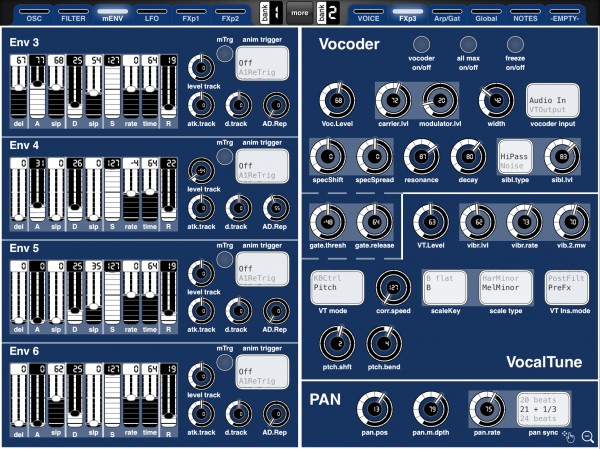

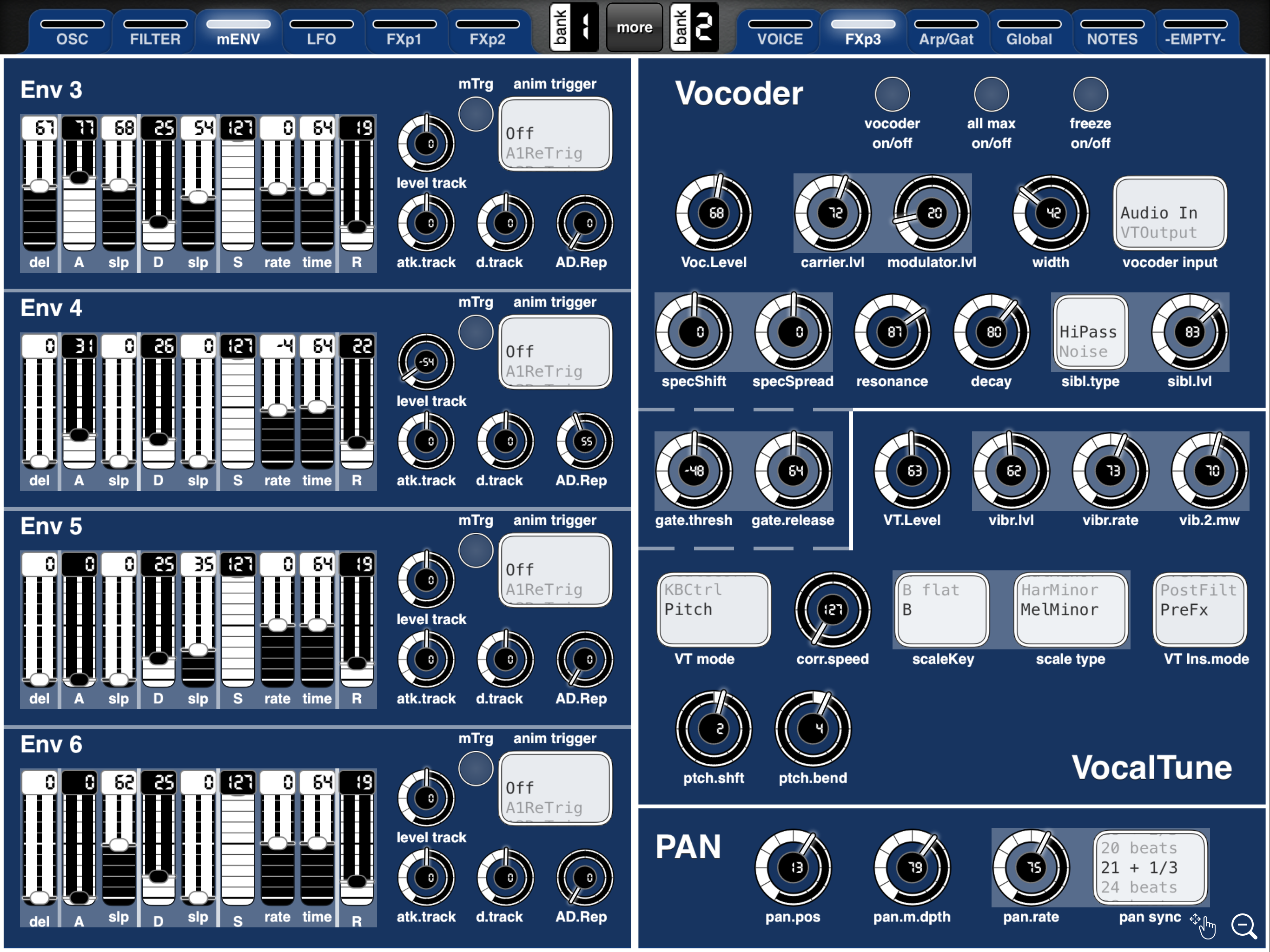

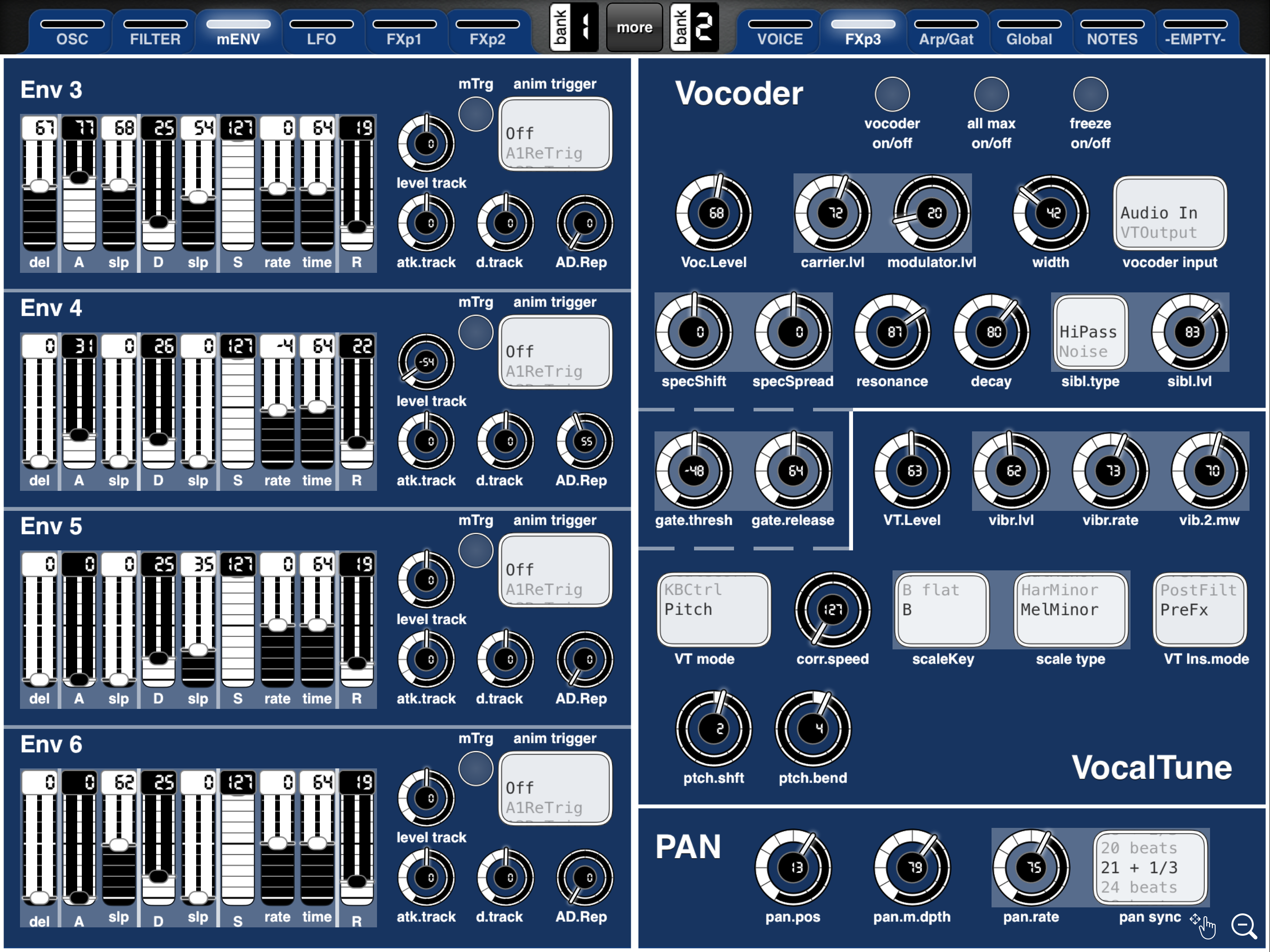

MiniNova synth editor for ipad - ModEnv and Fxpage3.png

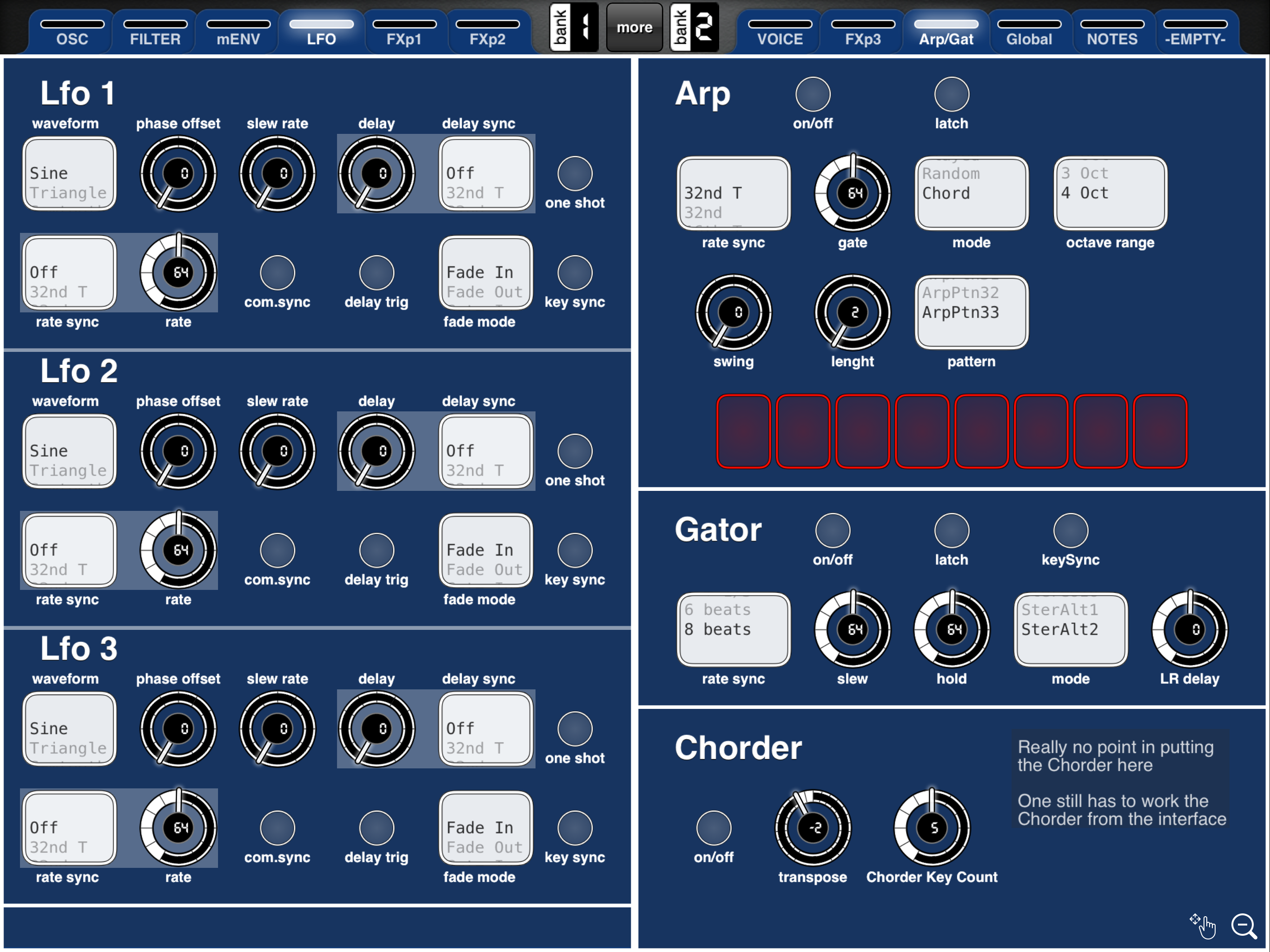

MiniNova synth editor for ipad - LFO and ArpGate pages.png

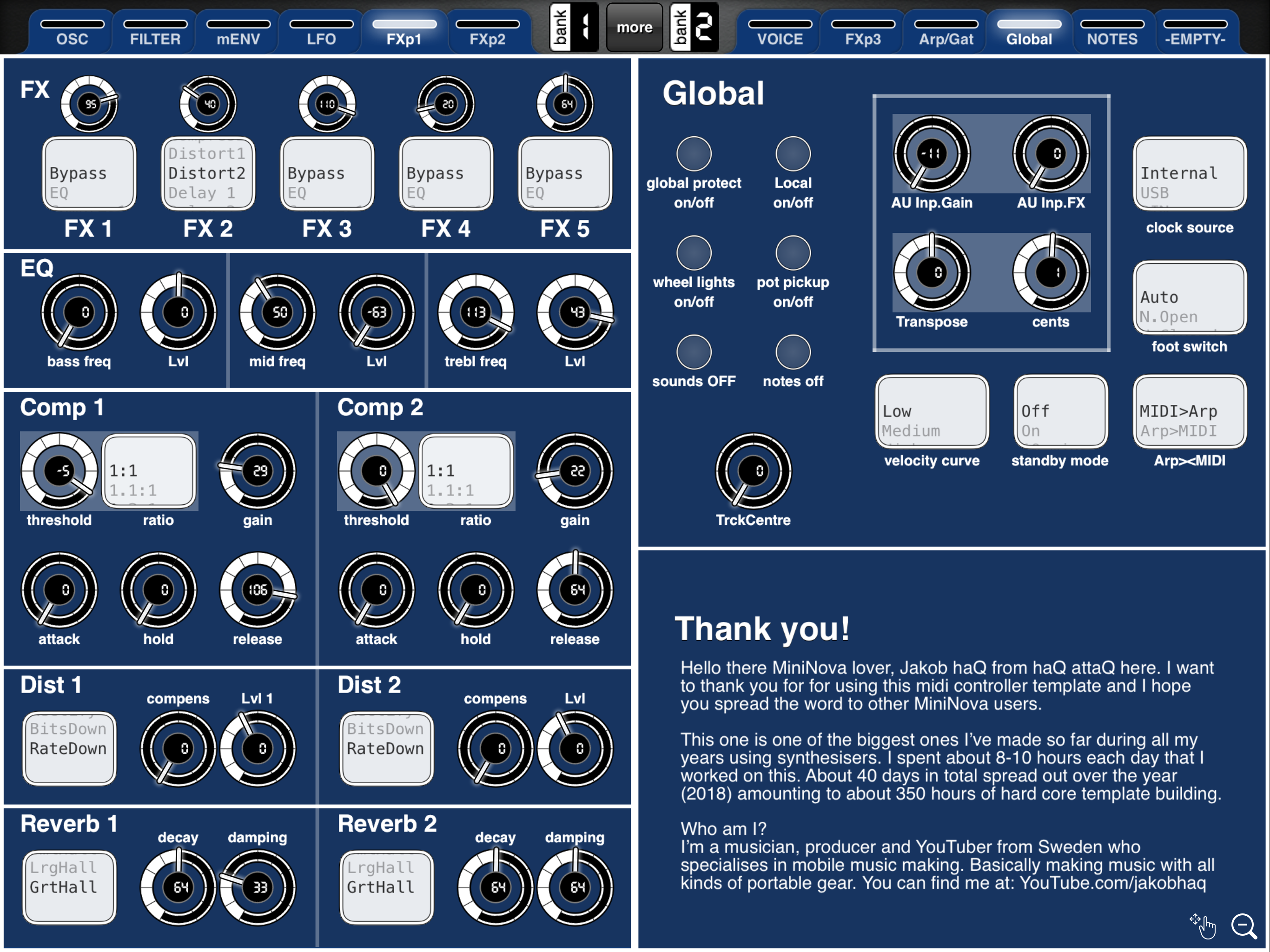

MiniNova synth editor for ipad - FXpage1 and Global.png

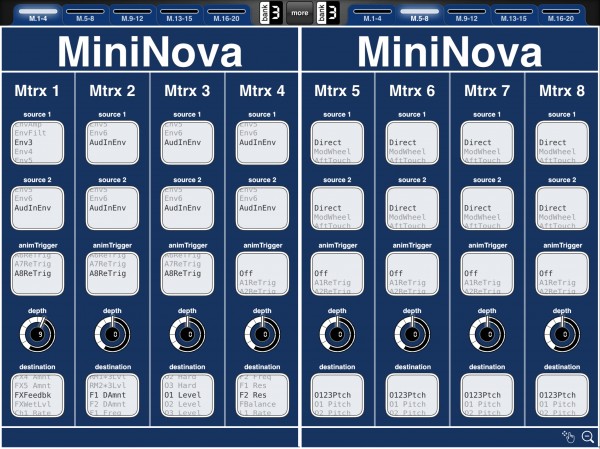

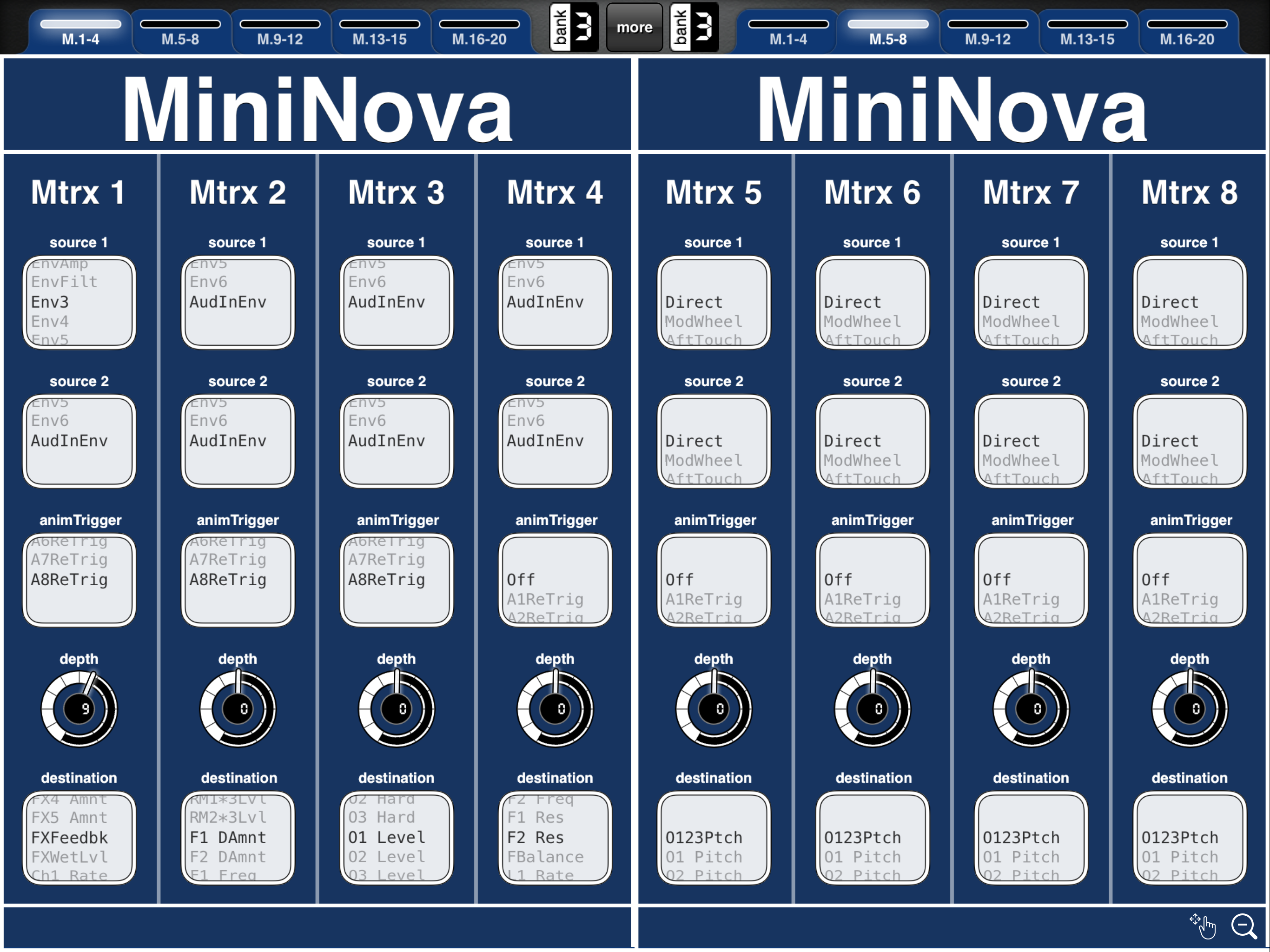

MiniNova synth editor for ipad - ModRouting Matrixes.png
