MIDI Target Manufacturer(s): IK Multimedia
MIDI Designer Pro 2 Control Surface for IK Multimedia UNO Synth by haQ attaQ
IMPORTANT: Template was made for iPad and will not display properly when loaded on iPhone!
There are a lot of features and function inside UNO Synth and only a limited amount of them are accessible through the user interface. This template digs deeper and gives us access to stuff like:
- LFO waveform modulation for OSC 1 & 2
- LFO pulse width modulation for OSC 1 & 2
- FILTER ENV waveform modulation for OSC 1 & 2
- FILTER ENV pulse width modulation for OSC 1 & 2
- FILTER KEY TRACK ON/OFF
- Full ADSR FILTER ENV
- Full ADSR AMP ENV
- DIVE RANGE
- SCOOP RANGE
- ARP GATE LENGHT
- SEQ SWING

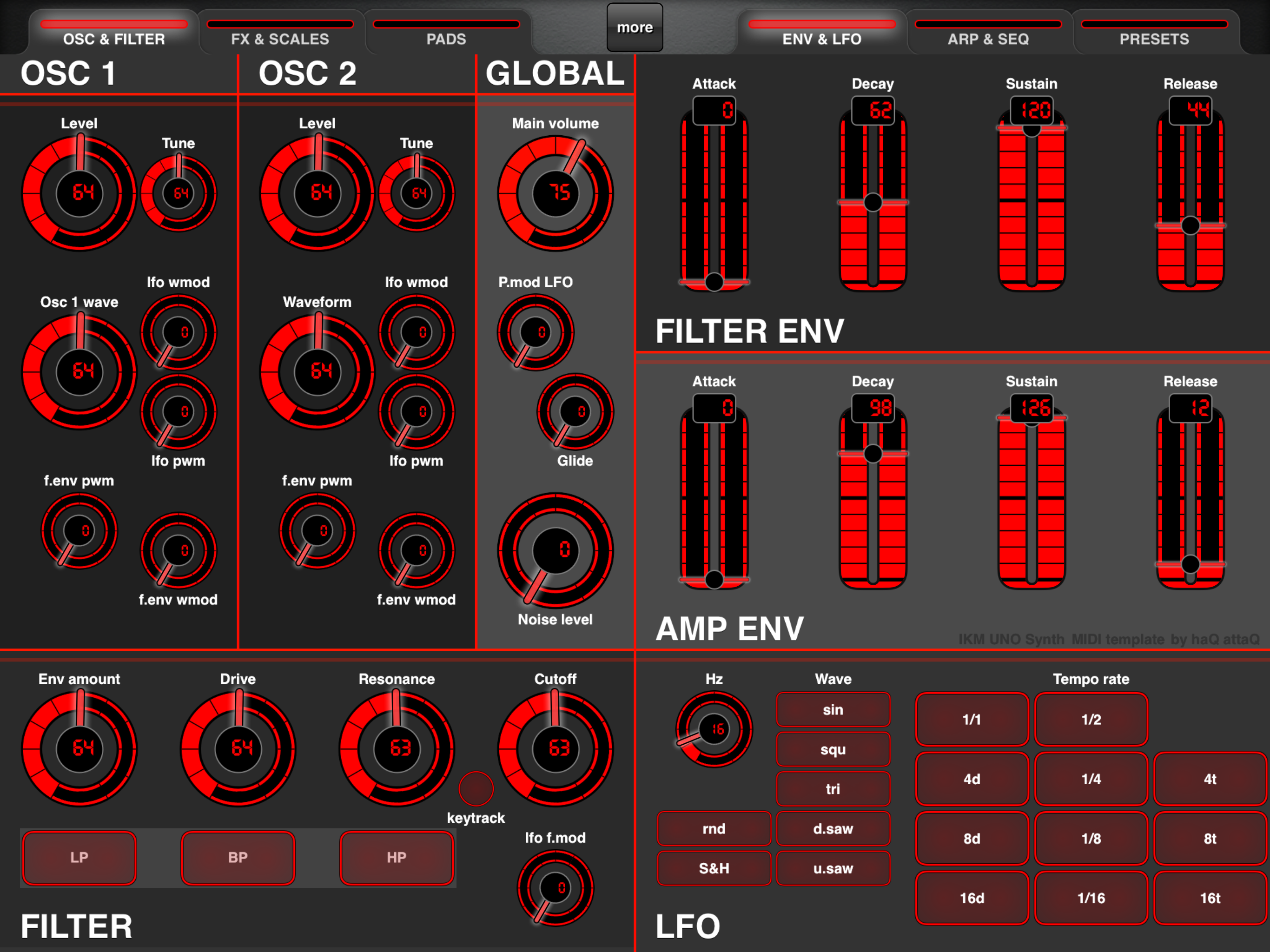

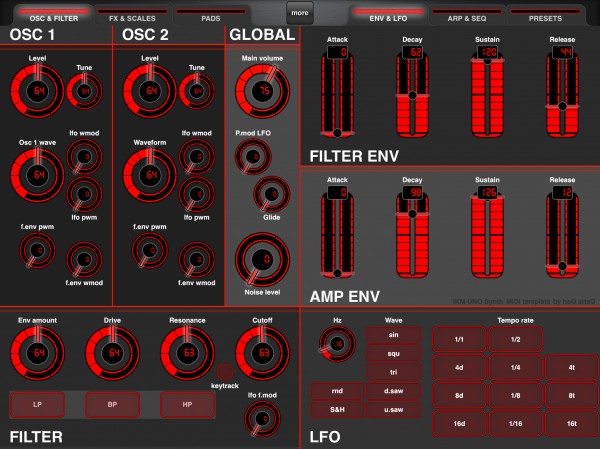

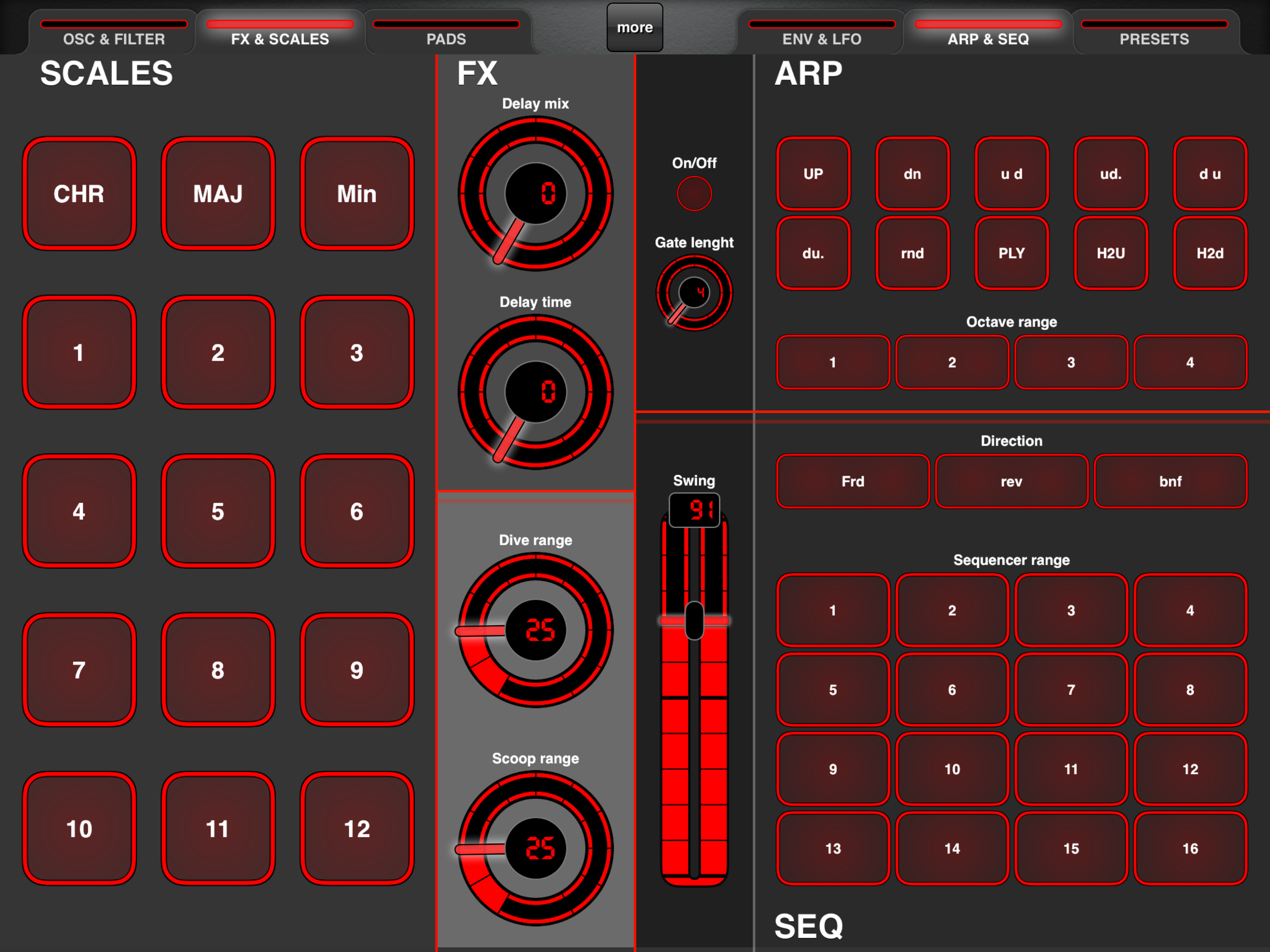

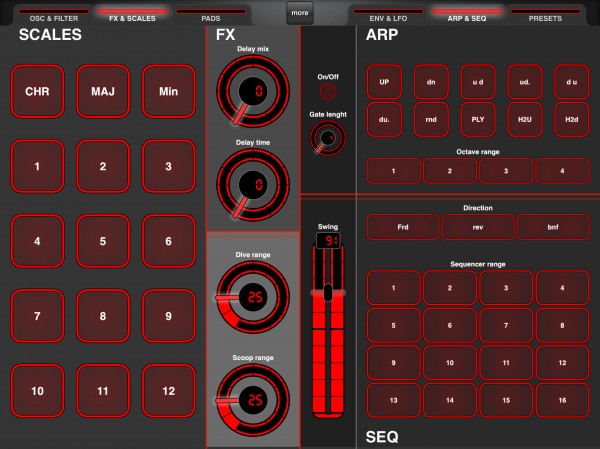

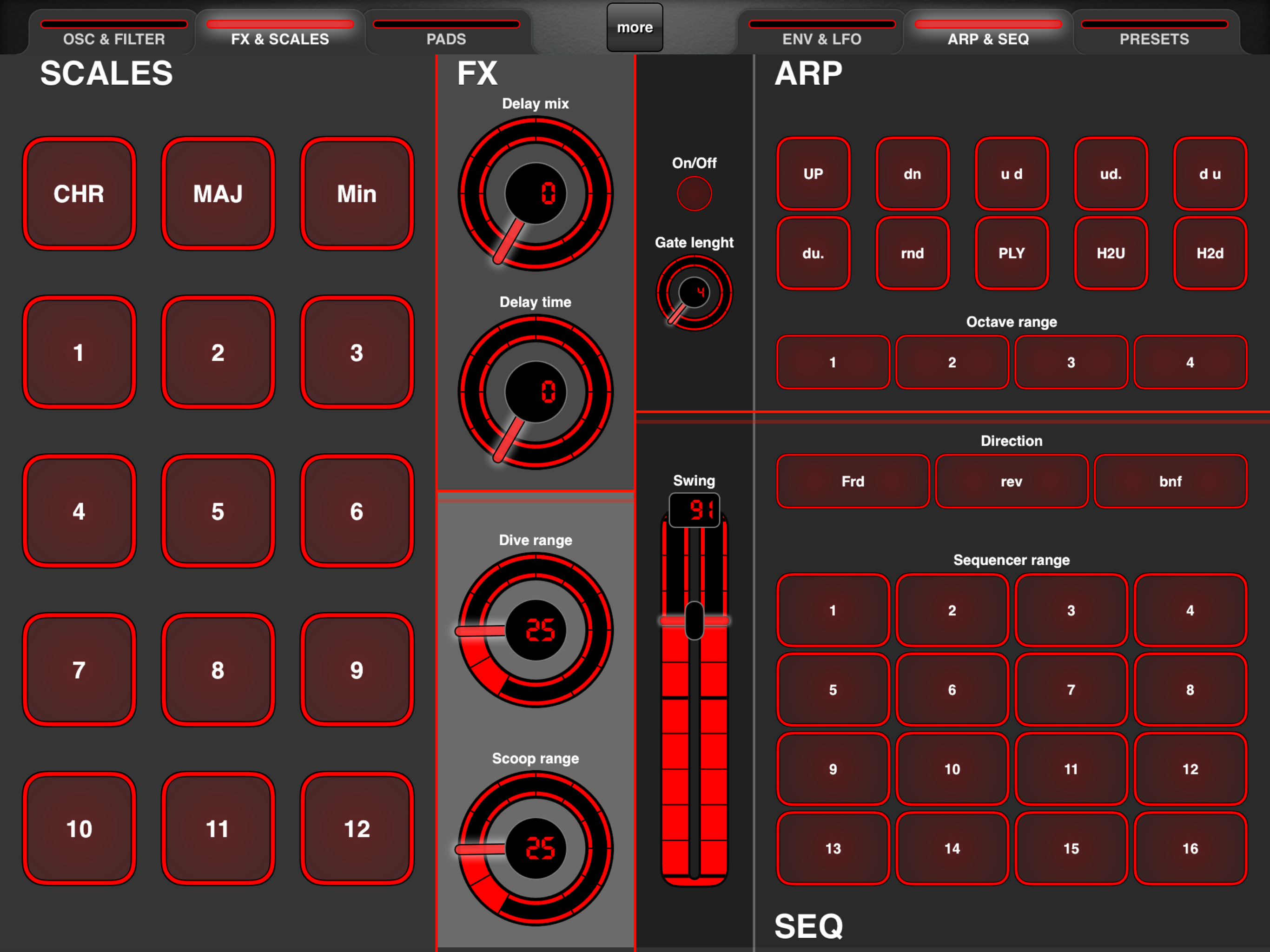

The available UI controls have been added to the template and broken up for easier use like, direct control of OSC levels (including NOISE level), three button filter mode switch, LFO tempo rate and waveform selector buttons, SCALE buttons, ARP direction and octave buttons, SEQ direction and range buttons, DELAY knob controls, GLIDE/PORTAMENTO knob and I’ve also added two “performance” PAD controllers for the filter.
Here’s a video of me going through the template

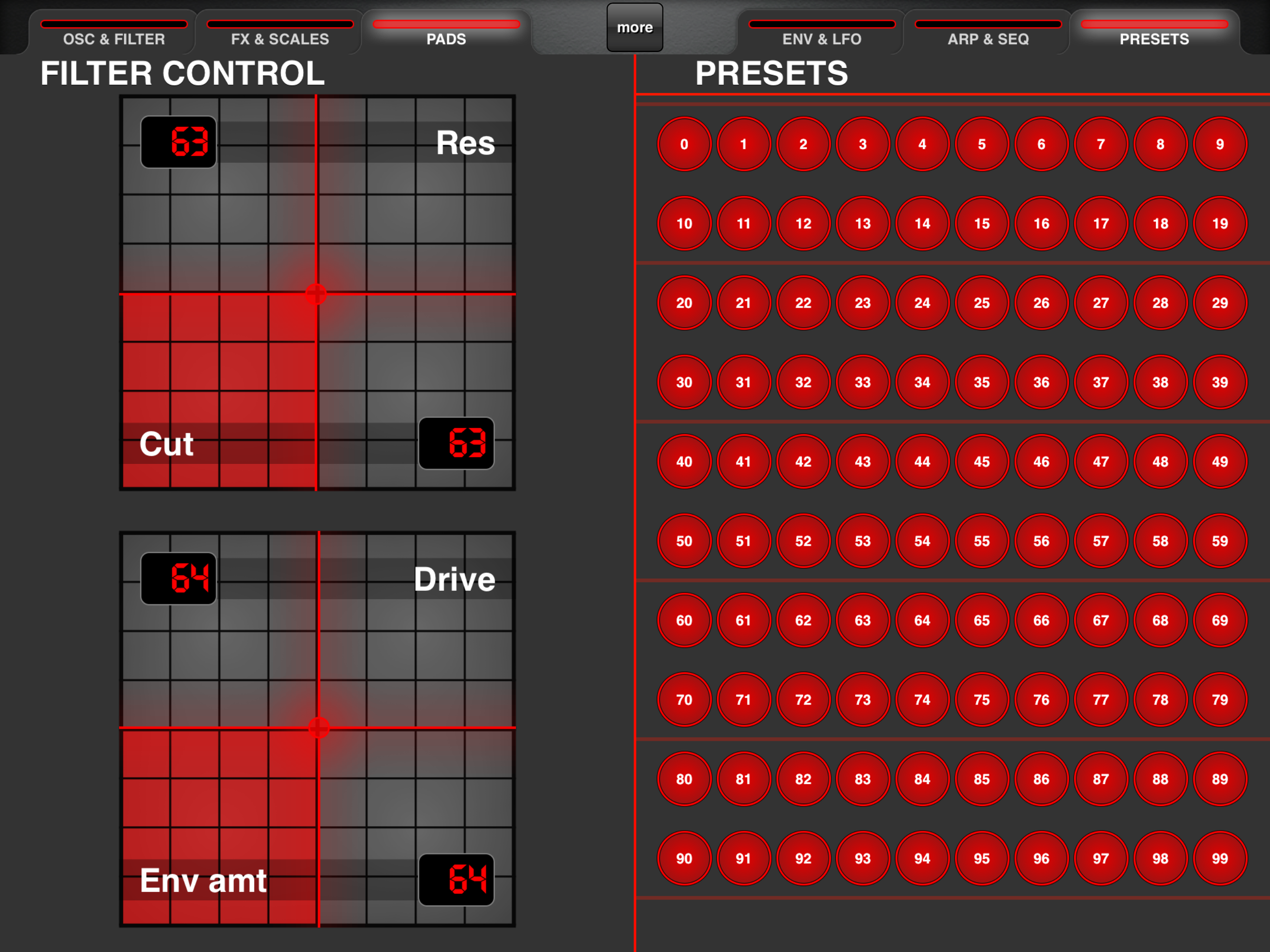

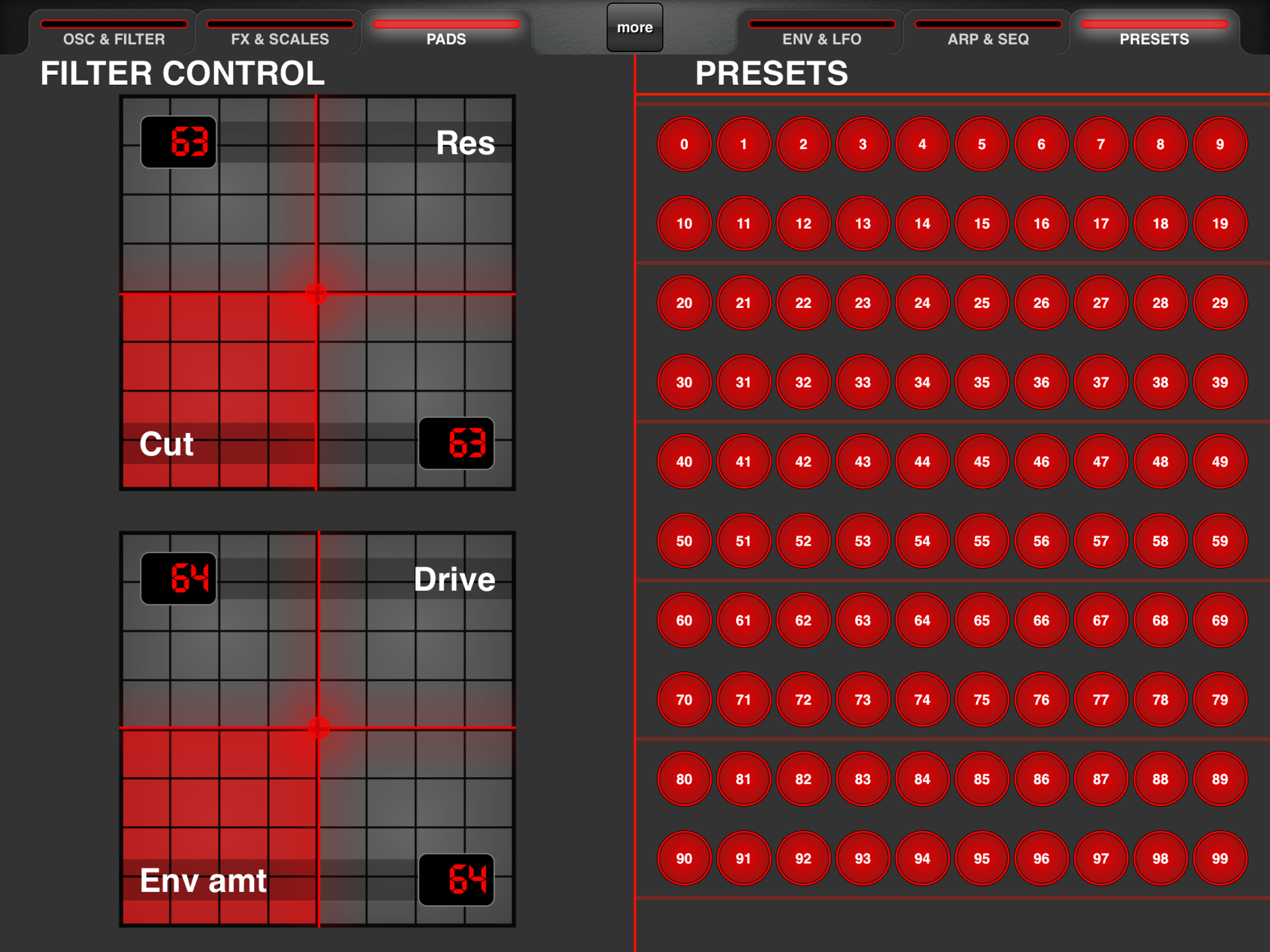

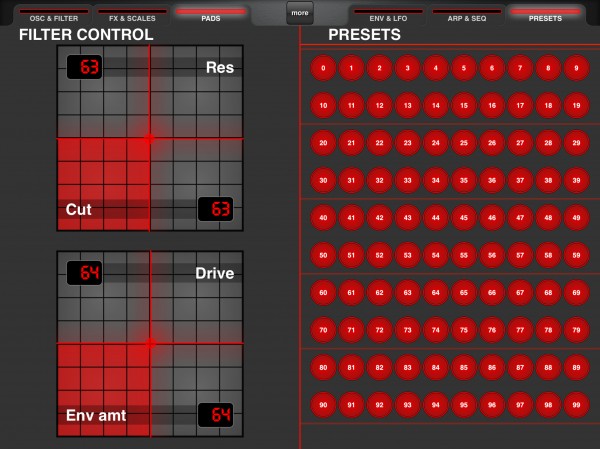

There’s also a preset selector page however, selecting presets through this interface can be a bit slow.
There is some stuff I didn’t add because they’re easily access through the UNO Synth UI like: On/Off switches for DIVE, SCOOP, VIBR, WAH, TREM and HOLD.
There’s also stuff I couldn’t add at all due to those features not being accessible through MIDI: SEQ play/stop, SEQ note/step programming, TEMPO/Bpm control, and Global OCTAVE switch.
