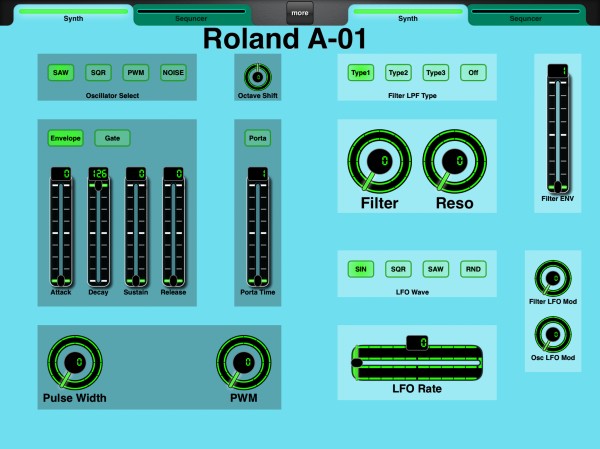

LAYOUT: Roland A-01 Controller+Generatorby cb-legacy

Question

Bronze

MIDI Target Manufacturer(s): Roland

Connect to MidiDesigner using Bluetooth LE from the A-01 by enabling it so that the blue LED is flashing then press the Bluetooth Midi connect button from the app and find the A-01 from the drop down menu.

The advantage of using system exclusive messages is that many parameters become available and combined with MidiDesigner, become easily accessible. The sequencer of the A-01 can trigger another piece of hardware via a Midi Din cable and using sysex messages can adjust many more parameters than what is represented on the small LCD.

This is work in progress and there will be improvements in the future.

N.b. When using the sequencer be sure to start with a blank sequence to sync with visual feedback.

Downloads: 650
LAYOUT: Roland A-01 Controller+Generator - When using the sequencer be sure to start with a blank sequence to sync with visual feedback. Gate length and velocity are sent over Midi and have no effect on the internal synth tone.
Downloads: 650

Images


Comments

HI there, nice work. I changed the name and added a link... to the right thing, I think? Also, there are two attachments. Are they the same? Thanks for sharing!

---

Thank you!
I have just uploaded version 2 and done some house cleaning. Best wishes

---

Thanks... this is your second layout... big ups! For the curious, your other layout: http://mididesigner.com/qa/4805 for the A3000 Remote.

---

Hey , great to see this layout. Will test it next days. Soon i will have layouts for all my hardware. Thank you for this.
