Call for Layouts: Roland VG-99 - MIDI Designer Q&A

Rating: GoldCall for Layouts: Roland VG-99

+1 vote
Rating: Gold
asked Nov 1, 2012 in Community Shares by erikbojerik (250 points)
edited Oct 2, 2016 by MIDI Designer Team (Dan)

1 Answer

+1 vote

LAYOUT: A MIDI Controller for the Roland VG-99 V-Guitar System by erikbojerik

MIDI Target Manufacturer(s): Roland
Summary: When Paul Hanson took the stage to introduce the VG-99 V-Guitar System at the Winter NAMM show 2007, the audience was amazed. That amazement continues even now. For many guitarists, the VG-99 is the guitar system that showed how Roland’s modeling technology could be musically relevant and even mind-blowing.

But this 8″ by 16″ box with a small LCD screen and a bunch of knobs and buttons is not ideal for realtime control. So, when Erik Hauri became a MIDI Designer Pro user in October 2012, his first project was to make a layout for the VG99. The MIDI controller he created is very pleasing to look at, but even more pleasurable to use. Great choice of color palette, spacing, fonts, and extensive use of XY pads are among the smart decisions that make this MIDI controller work.

We’re very lucky to have Erik bring us this welcome addition to MIDI Designer’s presence in the world of guitar.
Rating: Gold

Here is a control surface for the Roland VG-99 for you MIDI guitarists.  This is but a subset of the tweeks available on the 99, I have attempted to narrow it down to the ones that would be most obvious to adjust in a live situation that fit on adjacent pages.  Note that the 99 has only 16 control assigns (each one with a secondary assign that is ganged to the first one, for a total of 32), so you need to pick & choose which parameters on the VG you want to assign to a CC# and connect with the control surface.

If you make any cool adjustments to the layout, post them here so we can stay updated.

Downloads: 1595
Roland VG-99 Control Surface v.1.1 (admin mod) - Administrator modified the One Big Page and bank position of the pages. No other changes to layout at all.
Downloads: 798

Original Layout, Roland VG-99 Control Surface (Old) - this has some issues with One Big Page
Downloads: 798

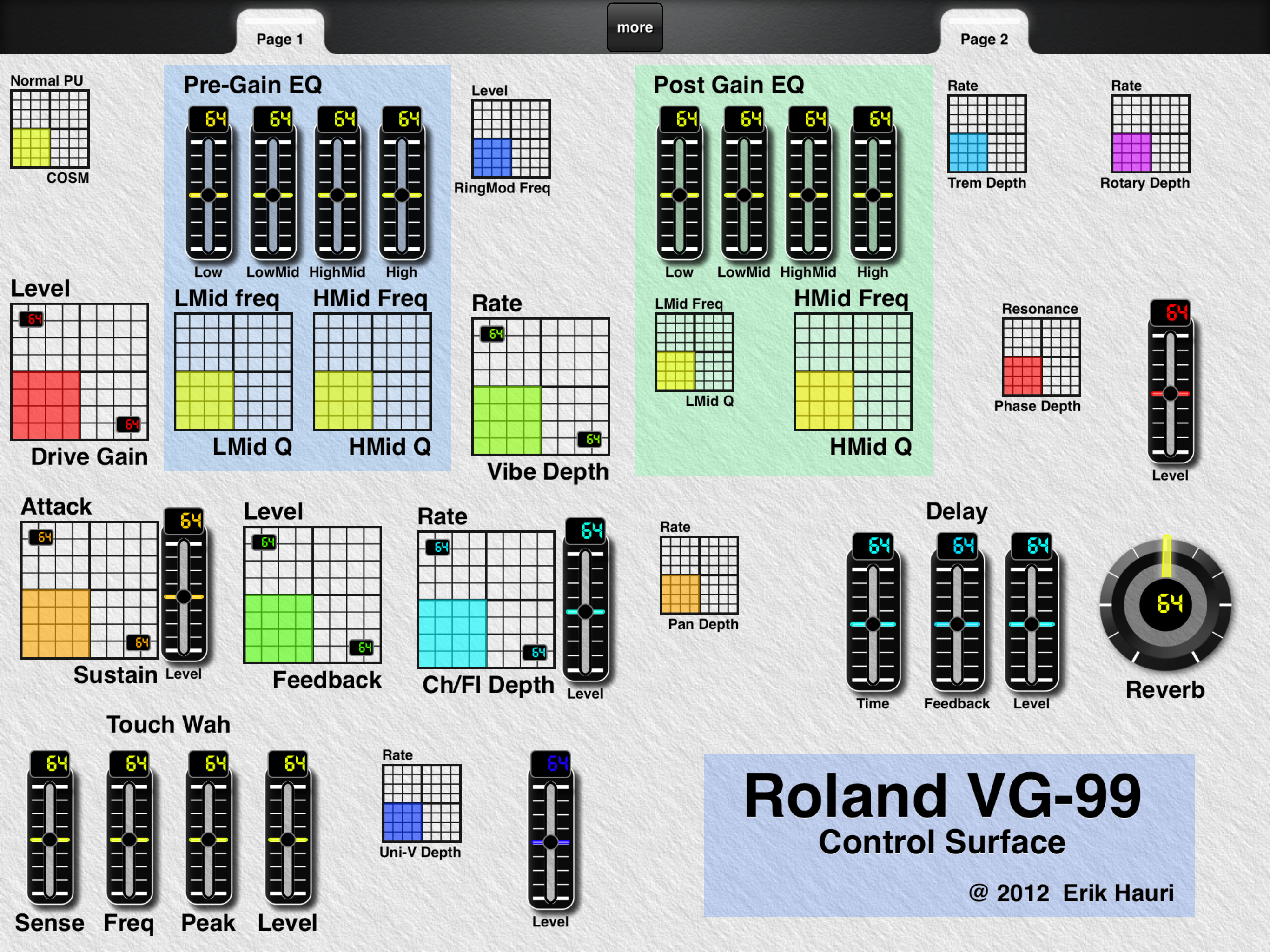

Roland VG-99 Layout with Classic Look
Roland VG-99 Layout with Classic Look

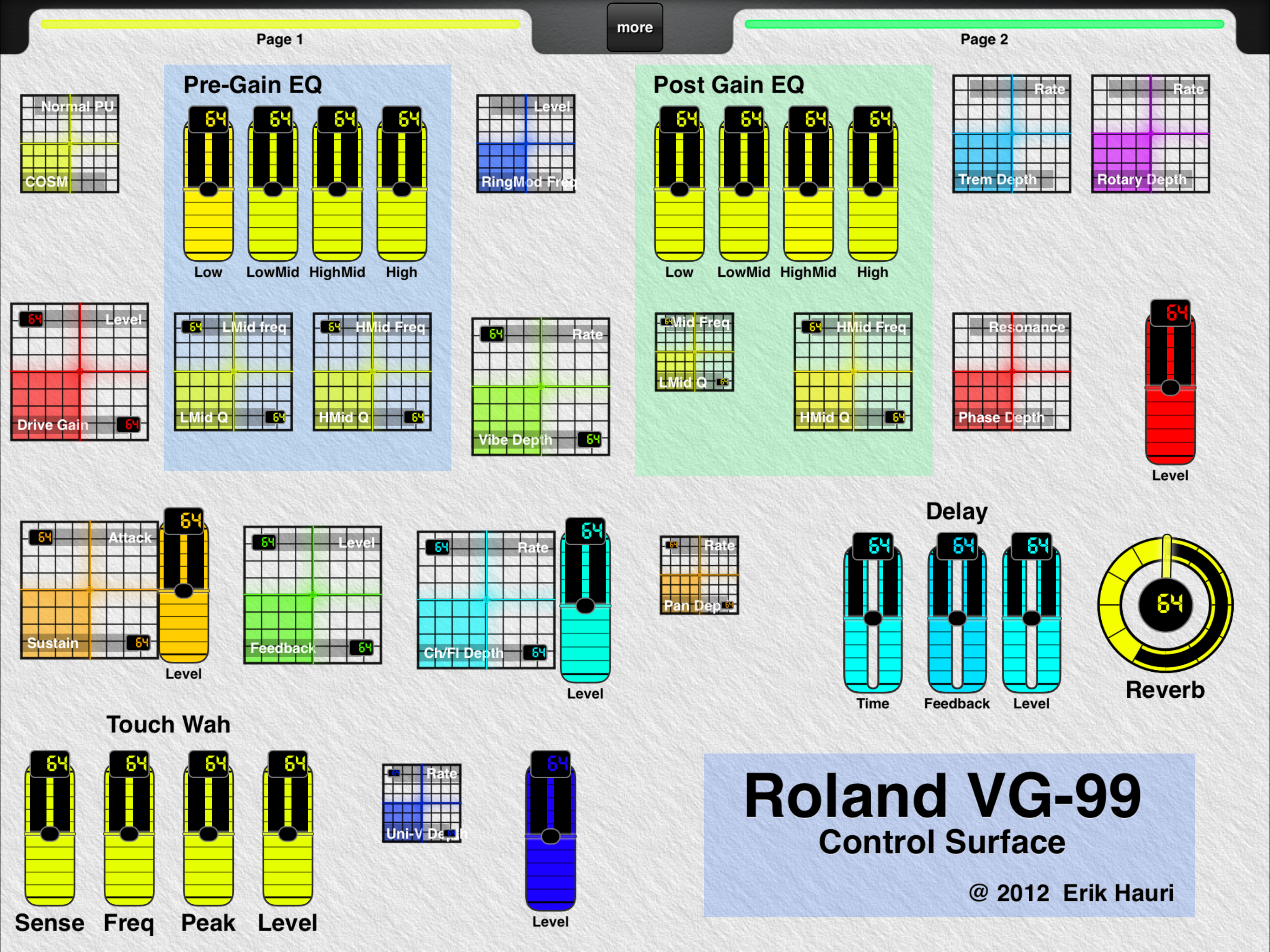

Roland VG-99 with Glow Look (slightly modified)
Roland VG-99 with Glow Look (slightly modified)

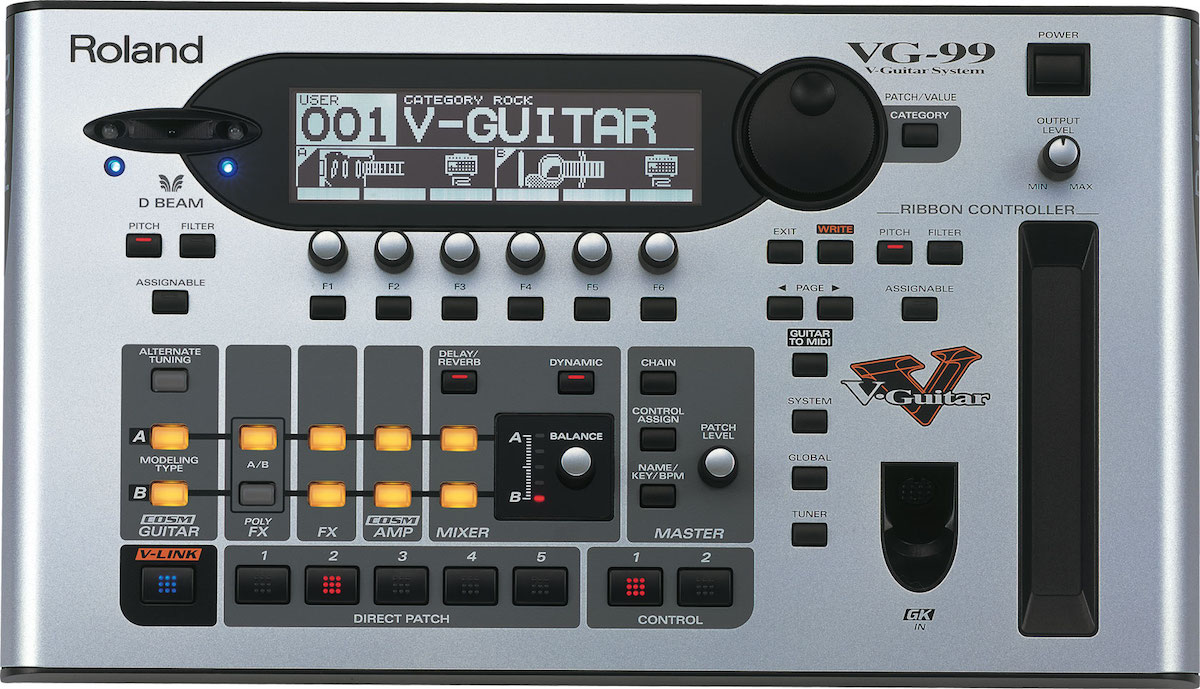

Roland VG-99
Roland VG-99
answered Nov 1, 2012 by erikbojerik (250 points)
edited Aug 11, 2016 by MIDI Designer Team (Dan)
Incredible, thank you!
