Transpose and octave transpose in 1.6.1

Question

I've seen that Octave and Step Transpose are part of MIDI Designer 1.6.1.

How do I use them?

Answer 1

1. Create button or buttons that send note-on (or control change).
2. Create a knob.

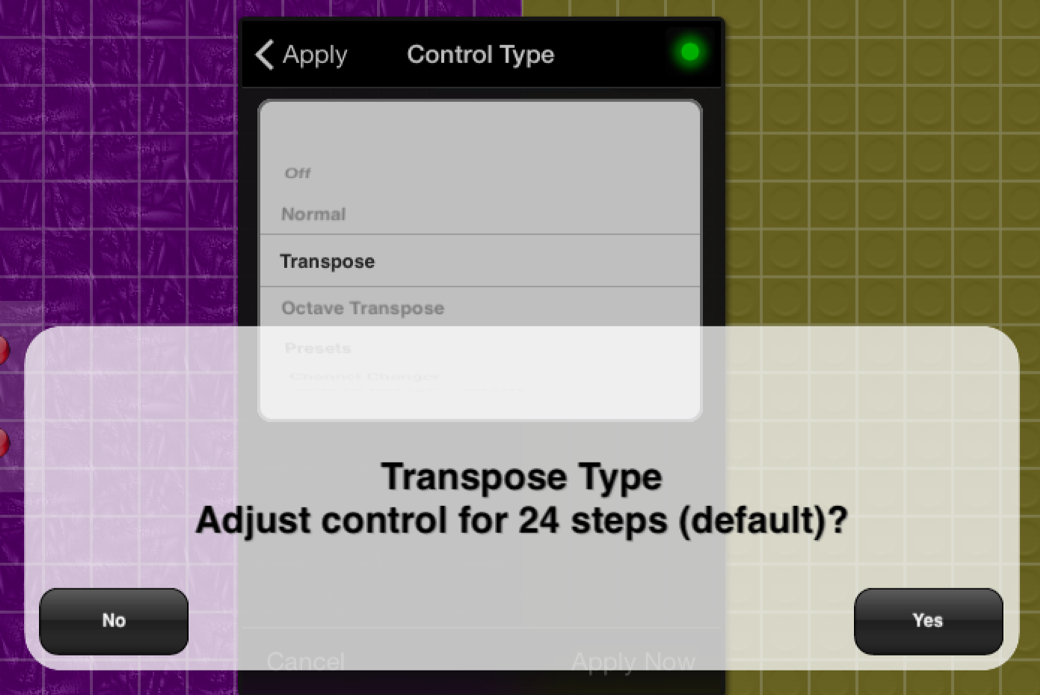

3. Set its Subtype to Transpose.



4. Accept the default transpose steps (affects the display min/max, number of ticks, MIDI Min/Max and default value)
5. Make the button or buttons subcontrols of the Transpose knob
6. That's it!

The steps are identical for Octave Transpose (except for #3, of course), and THEY MAY BE COMBINED.

How Does It Work?

The transpose knob centers around the default MIDI value. Each value above is a transpose up, and each MIDI value below is a transpose down. You can always make another transpose knob that shows how the values should look by accepting the defaults.

I Want Buttons That Say + and -

Easy enough, see Steppers: http://mididesigner.com/qa/170/create-down-pair-buttons-set-thru-program-change-other-values

I Need Discrete Buttons

Check it out here: http://mididesigner.com/qa/2868/transpose-in-midi-designer-with-buttons



Answer 2

1. Create button or buttons that send note-on (or control change).
2. Create a knob.
3. Set its Subtype to Transpose.



4. Accept the default transpose steps (affects the display min/max, number of ticks, MIDI Min/Max and default value)
5. Make the button or buttons subcontrols of the Transpose knob
6. That's it!

The steps are identical for Octave Transpose (except for #3, of course), and THEY MAY BE COMBINED.

How Does It Work?

The transpose knob centers around the default MIDI value. Each value above is a transpose up, and each MIDI value below is a transpose down. You can always make another transpose knob that shows how the values should look by accepting the defaults.

I Want Buttons That Say + and -

Easy enough, see Steppers: http://mididesigner.com/qa/170/create-down-pair-buttons-set-thru-program-change-other-values

I Need Discrete Buttons

Check it out here: http://mididesigner.com/qa/2868/transpose-in-midi-designer-with-buttons
