This layout controls Moog
Summary: Moog Minitaur carries the Taurus bass tradition into a compact two-oscillator synth. Bass Desk gives its filter, envelopes, tuning and modulation room to breathe across five independent pages.
Small box. Serious low end.

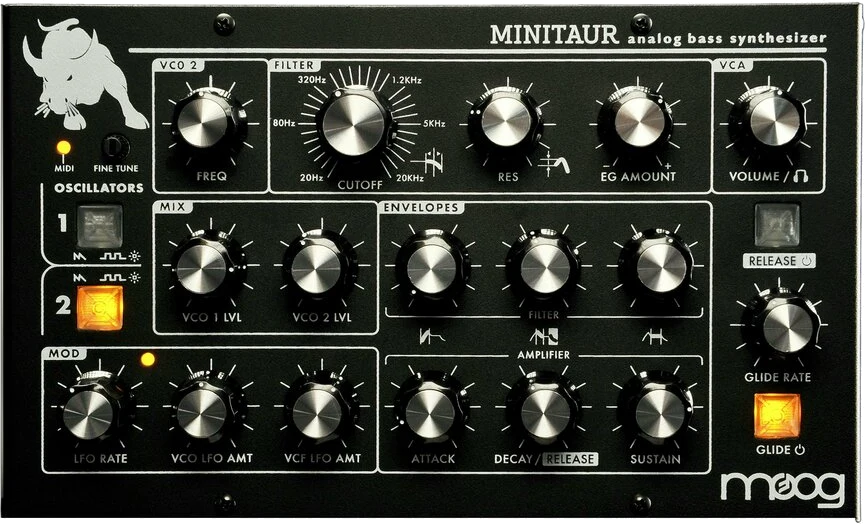

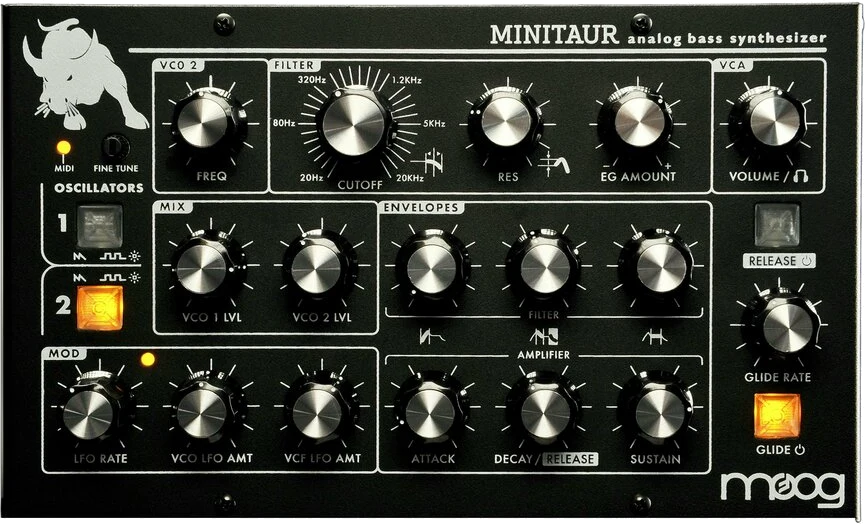

Minitaur packs Moog’s Taurus bass lineage into a compact steel box: two saw and square oscillators, a classic ladder filter, and deeper settings tucked behind MIDI.

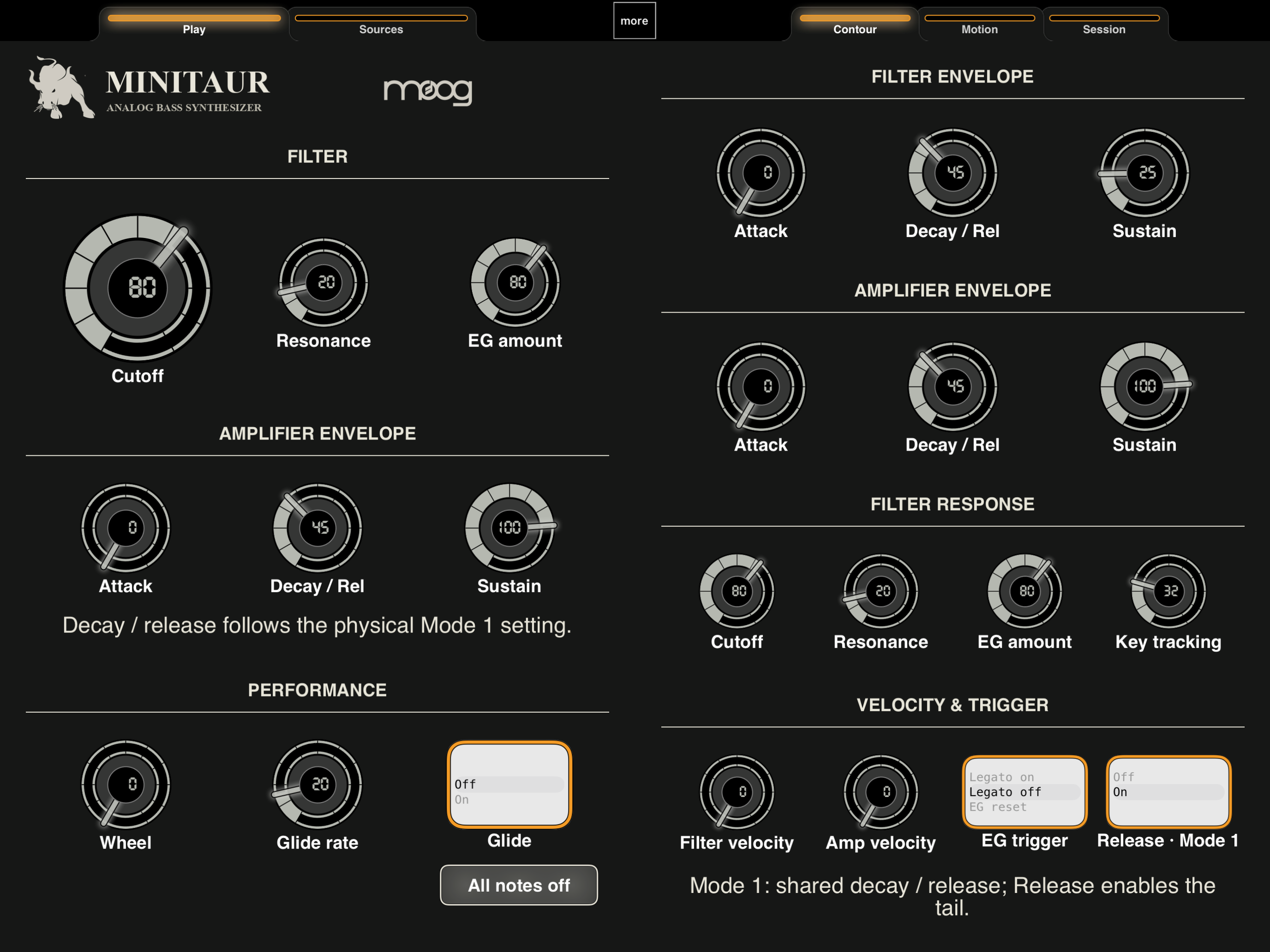

Bass Desk gives that tight panel room to breathe. Keep the big cutoff control under your fingers while shaping envelopes, tuning oscillators, or dialing in modulation.

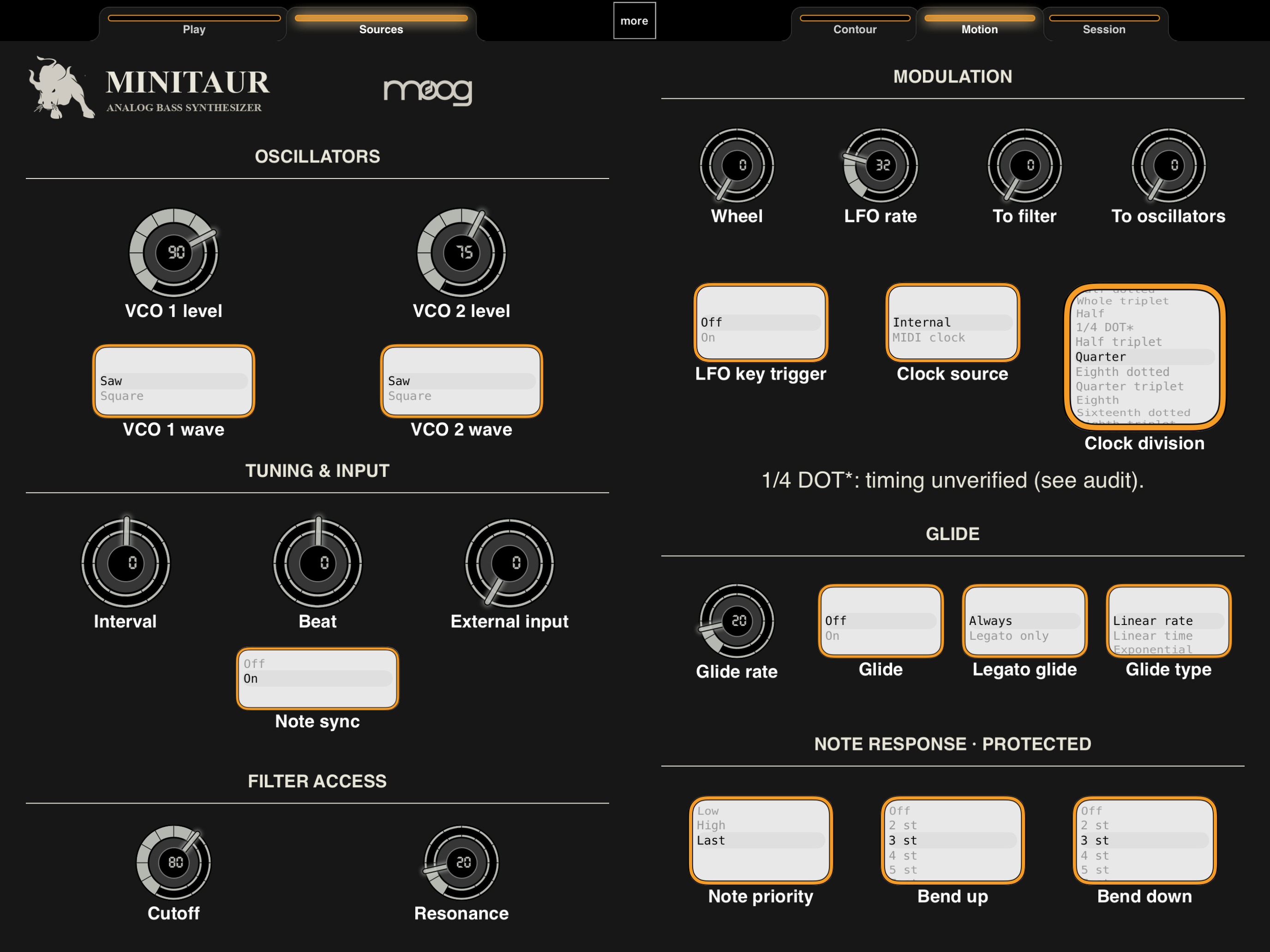

Five independent half-pages, including Session, let you mix and match the controls you want side by side.
Best on iPad or Mac; also perfectly usable on iPhone.
Explore Minitaur on Moog’s website.
Notes

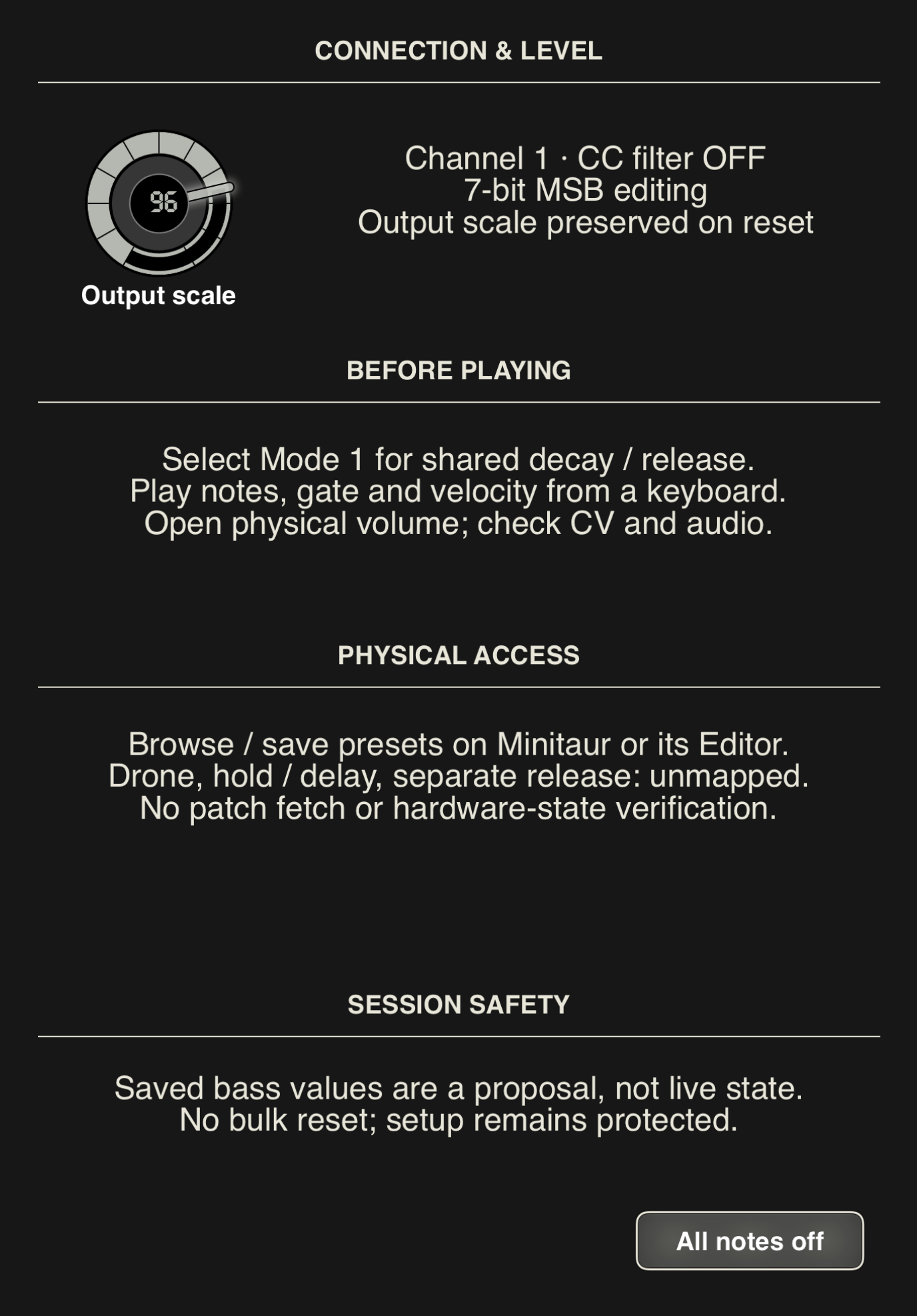

Connect on MIDI channel 1, turn the MIDI CC filter off, and select envelope Mode 1. Play from your keyboard or sequencer. Filter Contour (Filter Envelope Amount) now has a signed percentage readout around zero. Documented percentage scales and existing musical choices are retained; uncalibrated continuous scales use relative 0–99 positions. MIDI correspondences and proposed centers remain estimates. At the lowest Filter Envelope Amount setting, the small label reads −100% while the large numeric readout bottoms out at −99. Existing startup MIDI positions are preserved as controller starting points. This layout does not fetch patches or synchronize presets; browse and save with Minitaur or its Editor. Built from Moog’s user guide and MIDI documentation without physical hardware testing. Own one? Try it and tell us how it plays.
Change Log
1.4 — 2026-11-05: Remove chrome backplates and restore the original knob appearance.
1.3 — 2026-11-05: Add chrome backplates behind knobs, aligned to each control.
1.2 — 2026-11-05: Audit Named Ticks and update Display Min/Max and Display Zero for Filter Envelope Amount, keyboard tracking, sustain, and relative rate readouts.
1.1 — 2026-11-01: Clearer labels and help; simplified Session page.
1.0 — 2026-10-26: Initial release.
