This layout controls Sequential Circuits
Summary: Sequential’s compact five-voice analog polysynth gets a spacious six-page editor with two large XY Pads, Subcontrols, Control Copies and Named Ticks for sound design and performance.
Small synth. Big Sequential spirit.

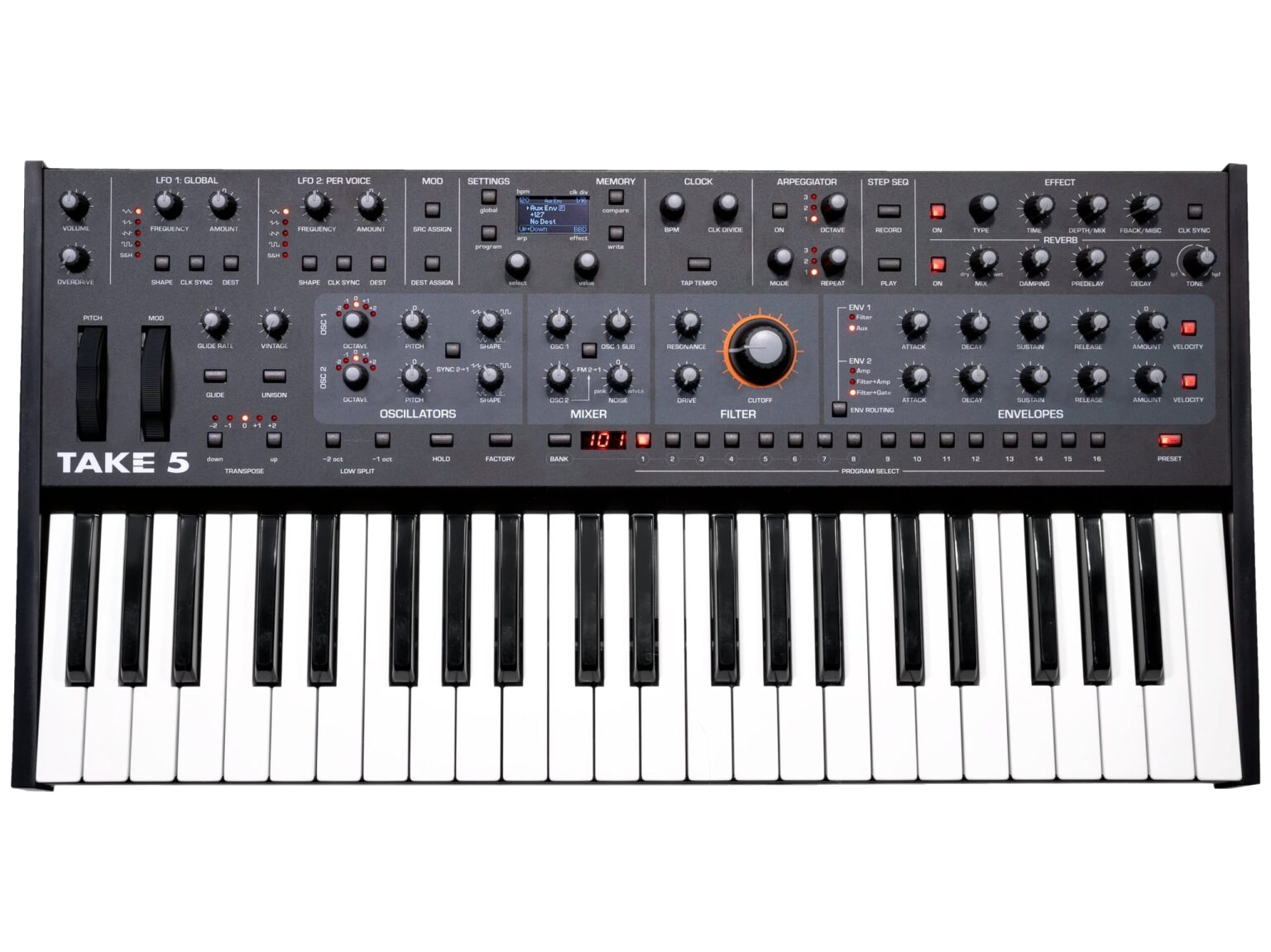

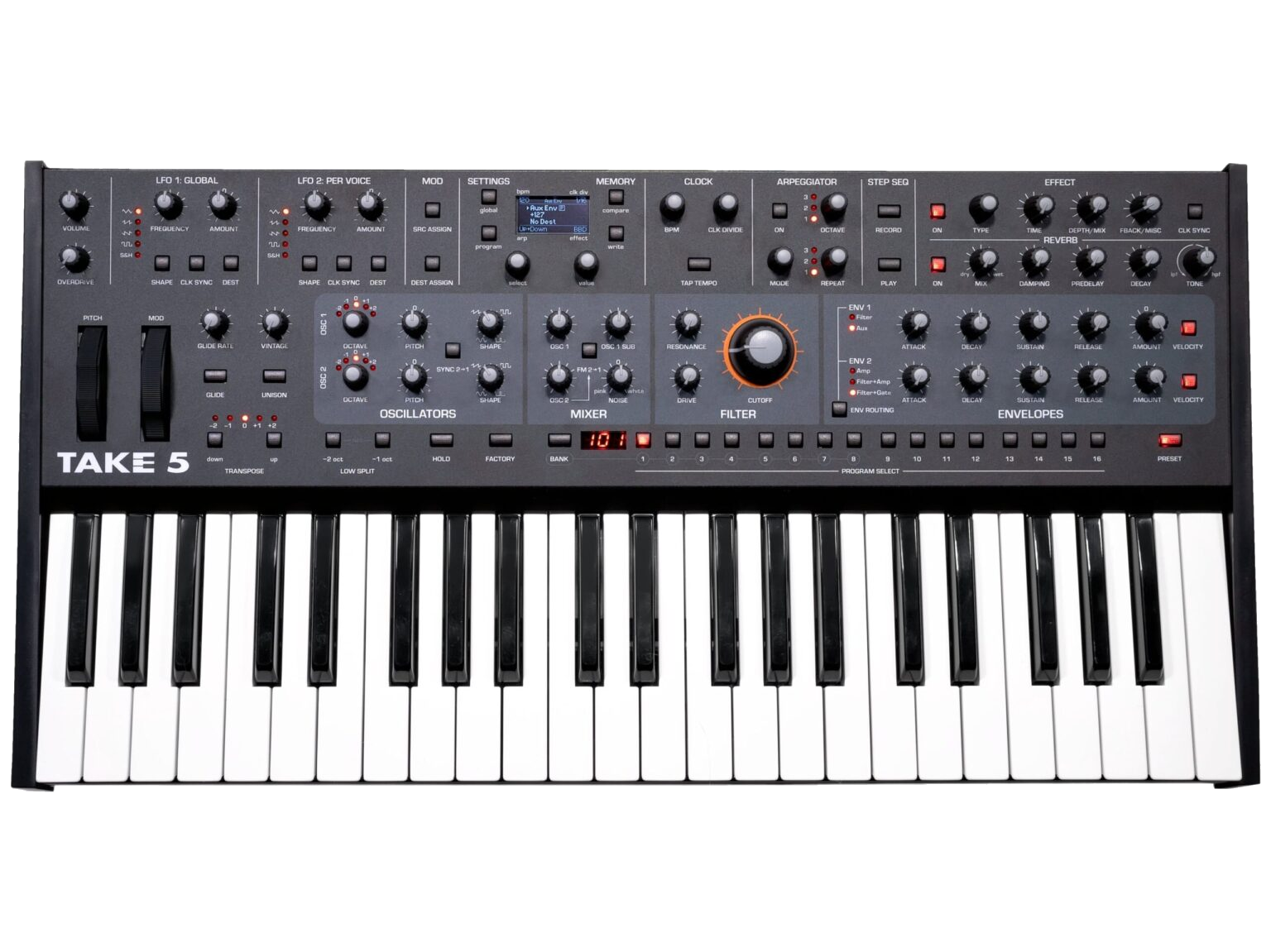

Introduced in 2021, the Take 5 packs five analog voices and a Prophet-5 Rev 4-derived filter into a compact keyboard.

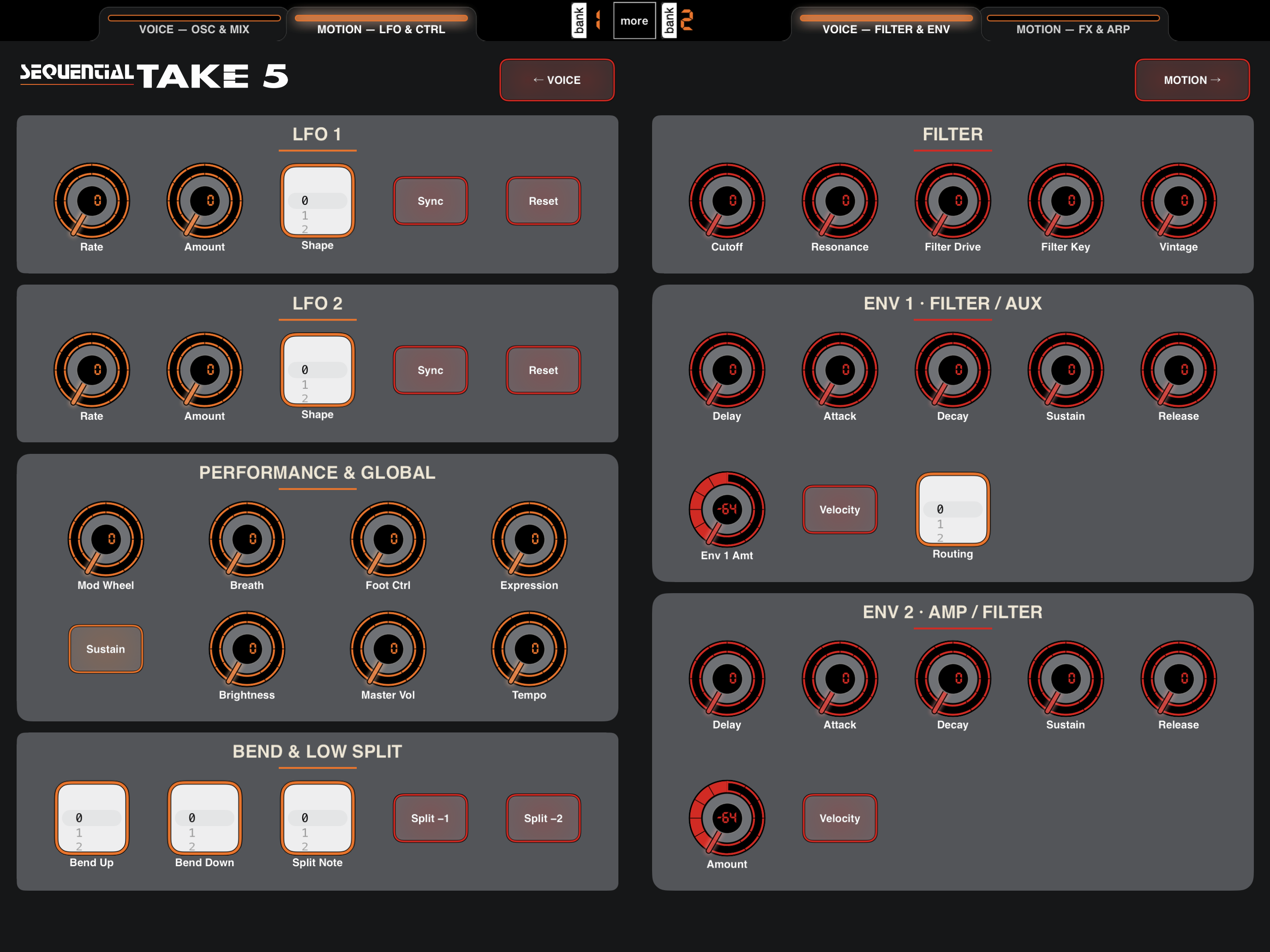

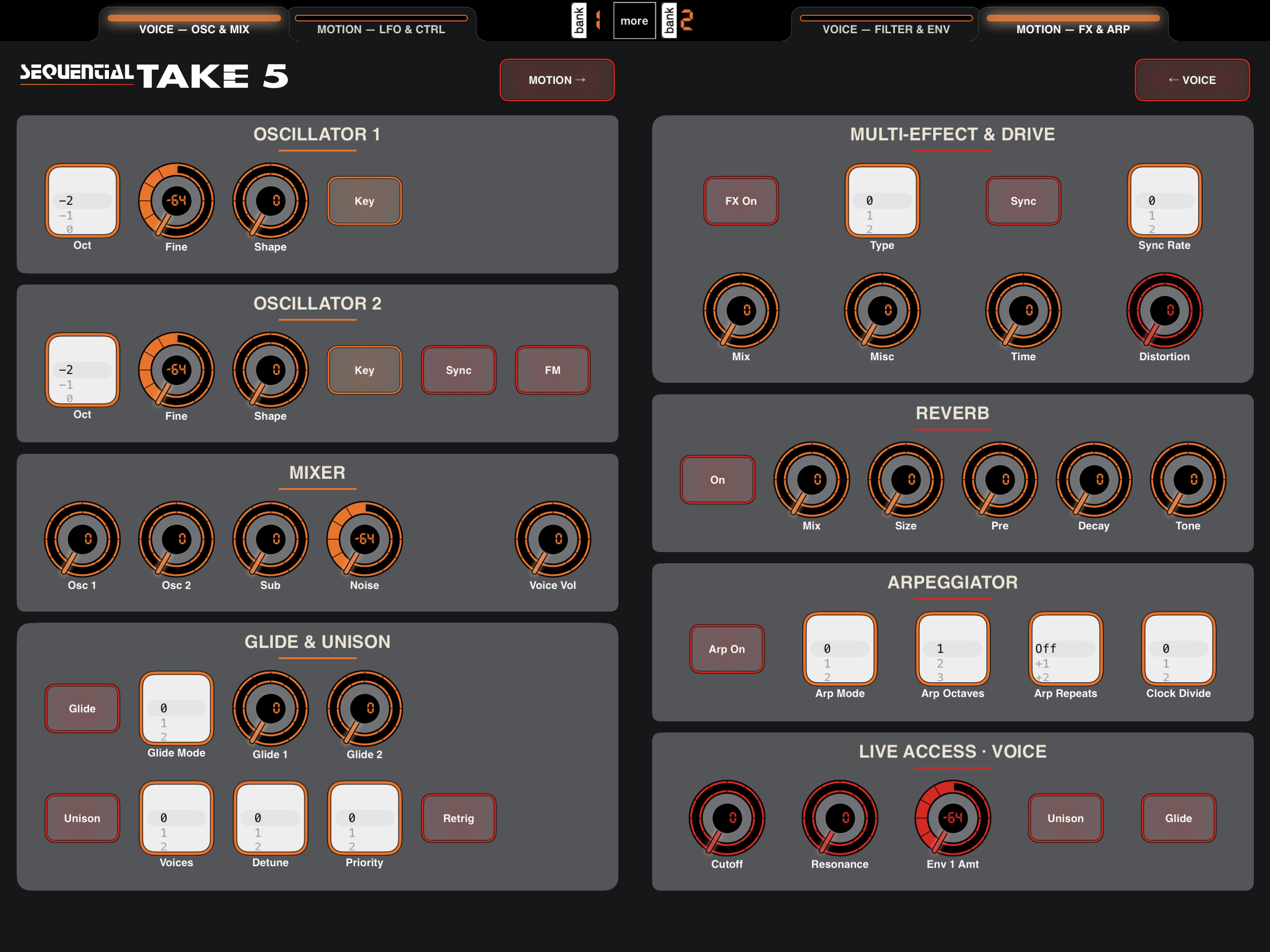

Explore 86 CC controls across six independent half-pages. Keep oscillators, envelopes, modulation and effects beside the controls you want to play. Two large XY Pads pair Cutoff with Resonance and Amp Attack with Release, driving the original parameters through Subcontrols. Control Copies keep the individual Knobs available below the XY Pads and on their editing Pages. Named Ticks label sound choices; Display Min/Max and Display Zero give the readouts useful ranges and centers.
Genuine Sequential and Take 5 wordmarks frame the editor; red and orange accents echo the instrument. Best on iPad or Mac; also perfectly usable on iPhone.
Explore Take 5 on Sequential’s website.
Notes
Connect your Take 5 on MIDI channel 1 and enable MIDI CC send/receive. Named waveforms and routing choices follow the instrument guide; some code mappings and signed centers remain estimates. Unknown choice codes stay numbered. Uncalibrated continuous controls use relative 0–99 positions; Program Volume keeps its documented 0–127 scale. Use 0/127 for Sustain Pedal messages; intermediate received sustain values have a known limitation. Saved positions are controller starting points, not a fetched patch. This is an editor, not a librarian; physical hardware verification remains pending. Photo: Sequential. The Amp Envelope pad controls Env 2; its destination follows the existing Routing setting.
We created this layout from Sequential’s user guide and MIDI documentation. Own a Take 5? Please test it and tell us what works and what needs fixing.
Change Log
1.4 — 2026-11-06: Add two larger XY Pads controlling Cutoff / Resonance and Amp Attack / Release through Subcontrols, retain individual knobs, add an independent performance pair, and place manufacturer / target logos on the outer headers.
1.3 — 2026-11-05: Update Named Ticks for sound choices and Clock Divide. Audit and update Display Min/Max and Display Zero across the layout.
1.2 — 2026-11-01: Clearer labels and help; refined panel spacing.
1.1 — 2026-10-27: Independent page mixing, taller pickers and cleaner headers.
1.0 — 2026-10-26: Initial release.
