Numeric Input Keypadsby jkhiser

Question

Silver

MIDI Target Manufacturer(s): Original, Generic

Onscreen keypad to select exact control value
 - Additional precision for large range controls
 - Alternate input method

NO StreamByter coding required - just configure two additional controls
- action button - sends the entered numbers to StreamByter module
  - unique ID
  - min, & max values
- SreamByter calculates the scaled MIDI value
- receive control - receives the scaled value
  - match action unique ID
  - supercontrol of layout object control

Custom keyboard actions can be defined
- e.g., split single input to Bank MSB and Program Change (included)
- custom actions do require SB coding

This version replaces the beta version previously shared.  Compared to beta,
- uses standard MD supercontrols - (make similar, update MIDI values, select desired subcontrols)
- can configure controls on the fly
- no SB knowledge required other than pasting the provided code into the SB output rules field (if needed)
- matters only behind the scene, but greatly simplifies the SB code - all the special cases collapse into a general case.

Thanks to willspence for asking a question about input keypads.

(Note - the headers were simplified in 1.01, after the video)

Downloads: 275
Keypad 1.01b.mididesigner - adds additional examples, minor cleanup, some missing channel changer relationships
Downloads: 105

Keypad 1.01.rtf.zip
Downloads: 72

Keypad 0.2.mididesigner - Obsolete beta version - for reference only
Downloads: 96

Images

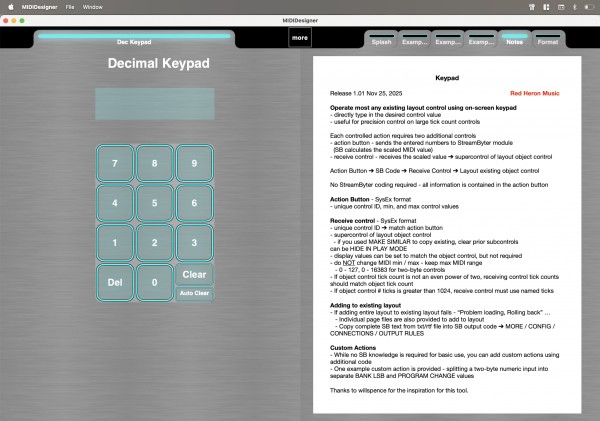

Keypad and usage notes

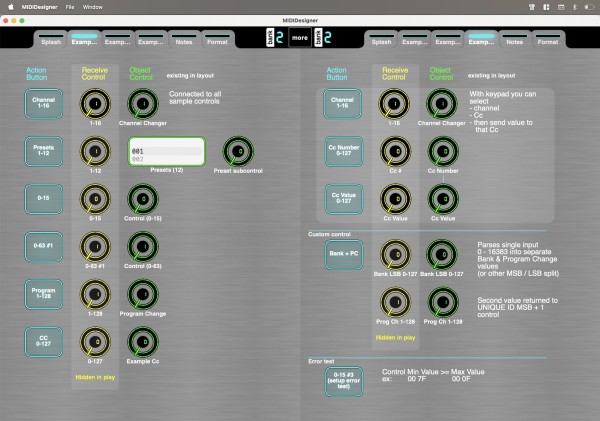

Sample keypad controls

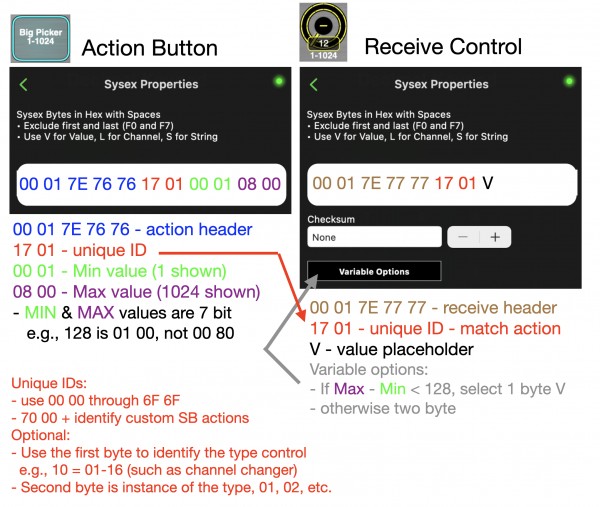

Keypad control formats

Comments

Amazing! I love seeing how far StreamByter is taking the app.
