MIDI Target Manufacturer(s): Chase Bliss

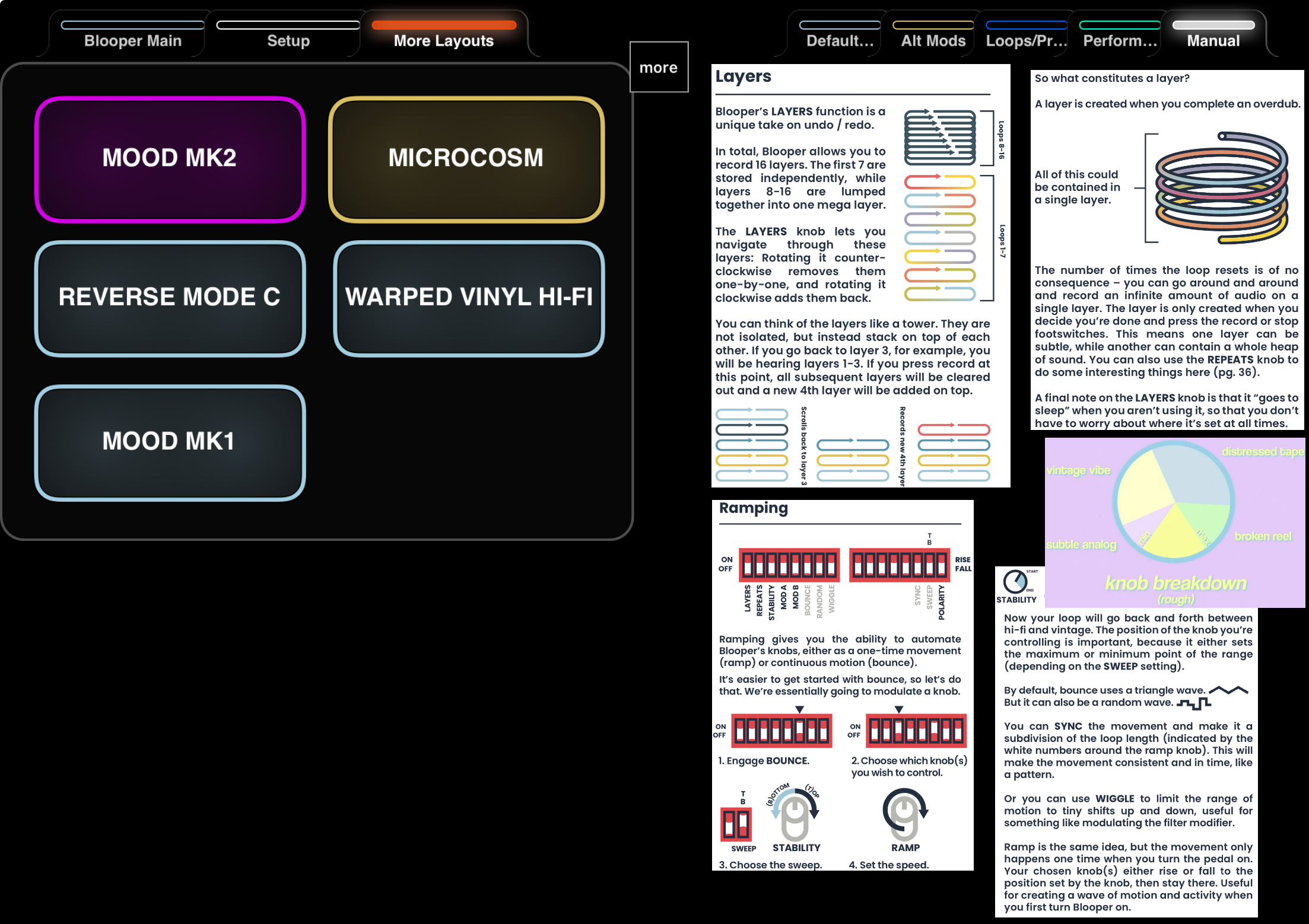

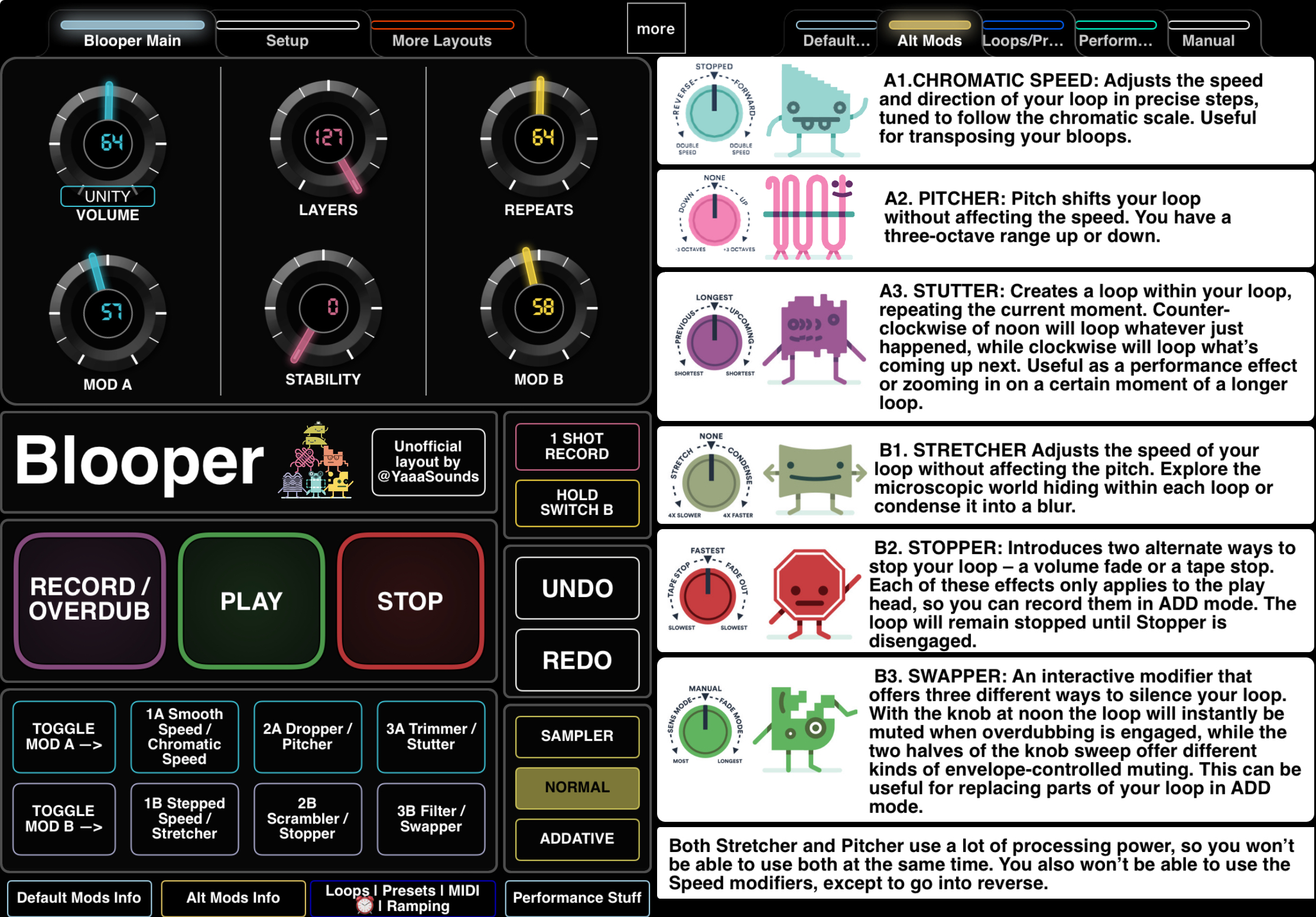

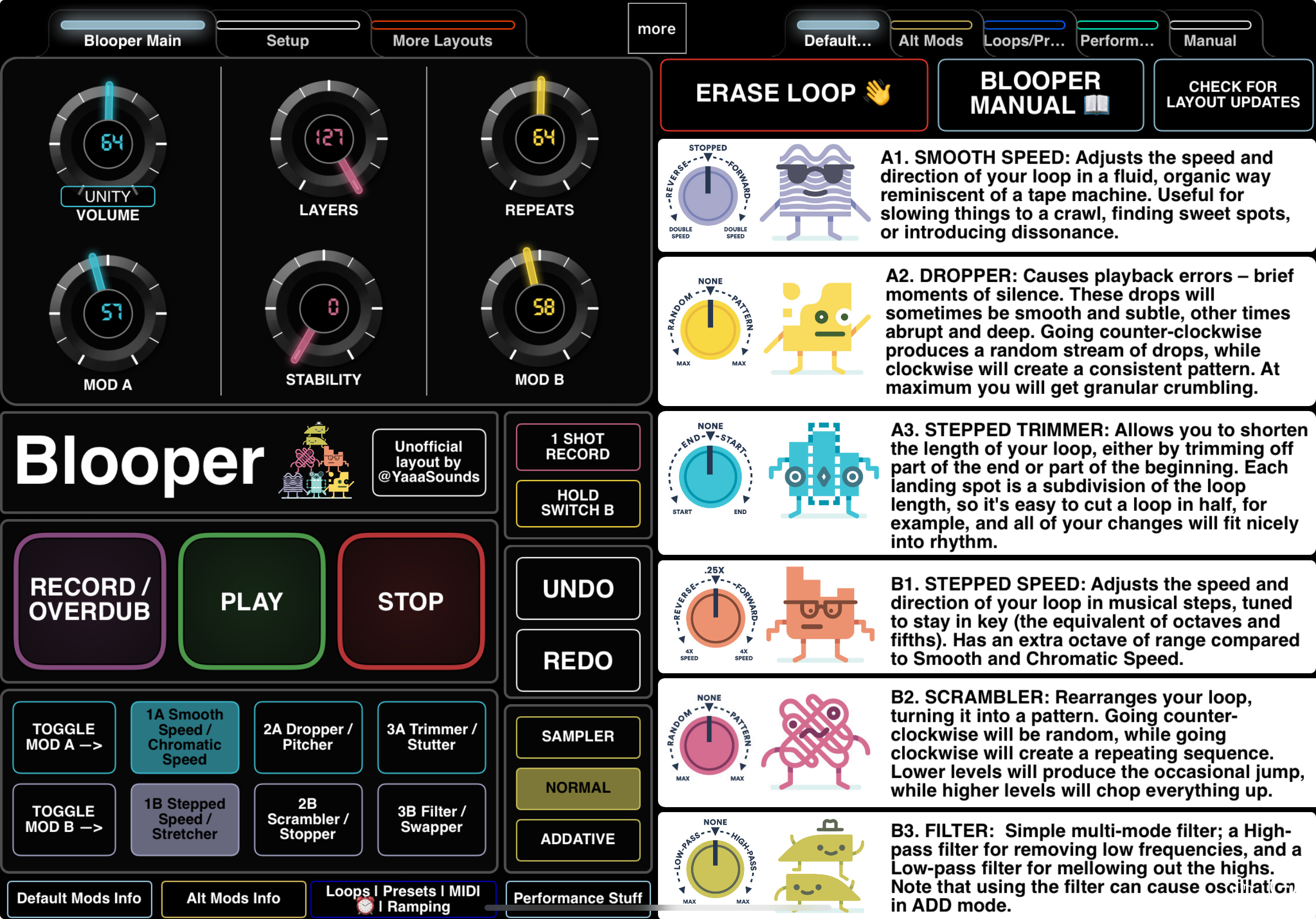

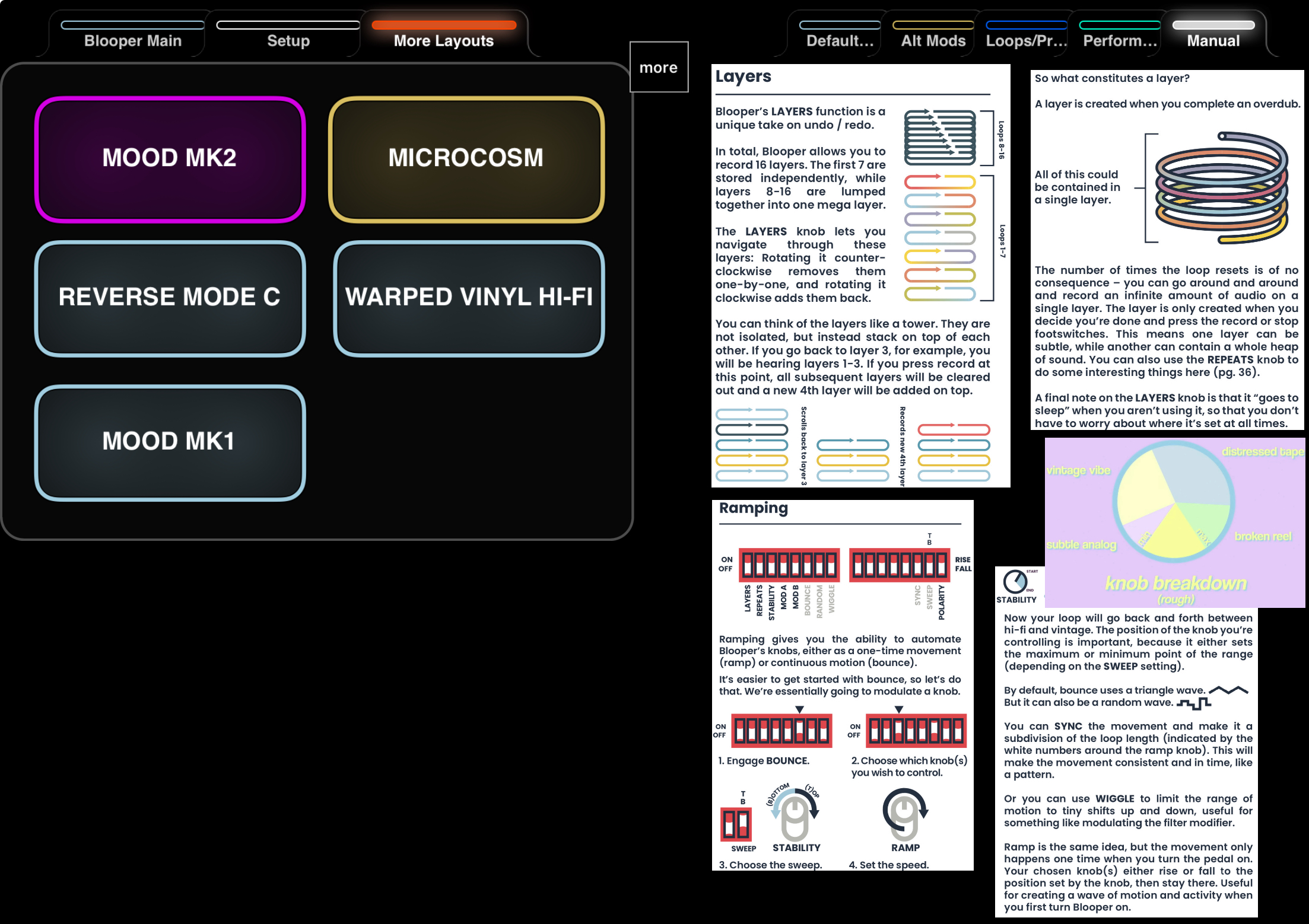

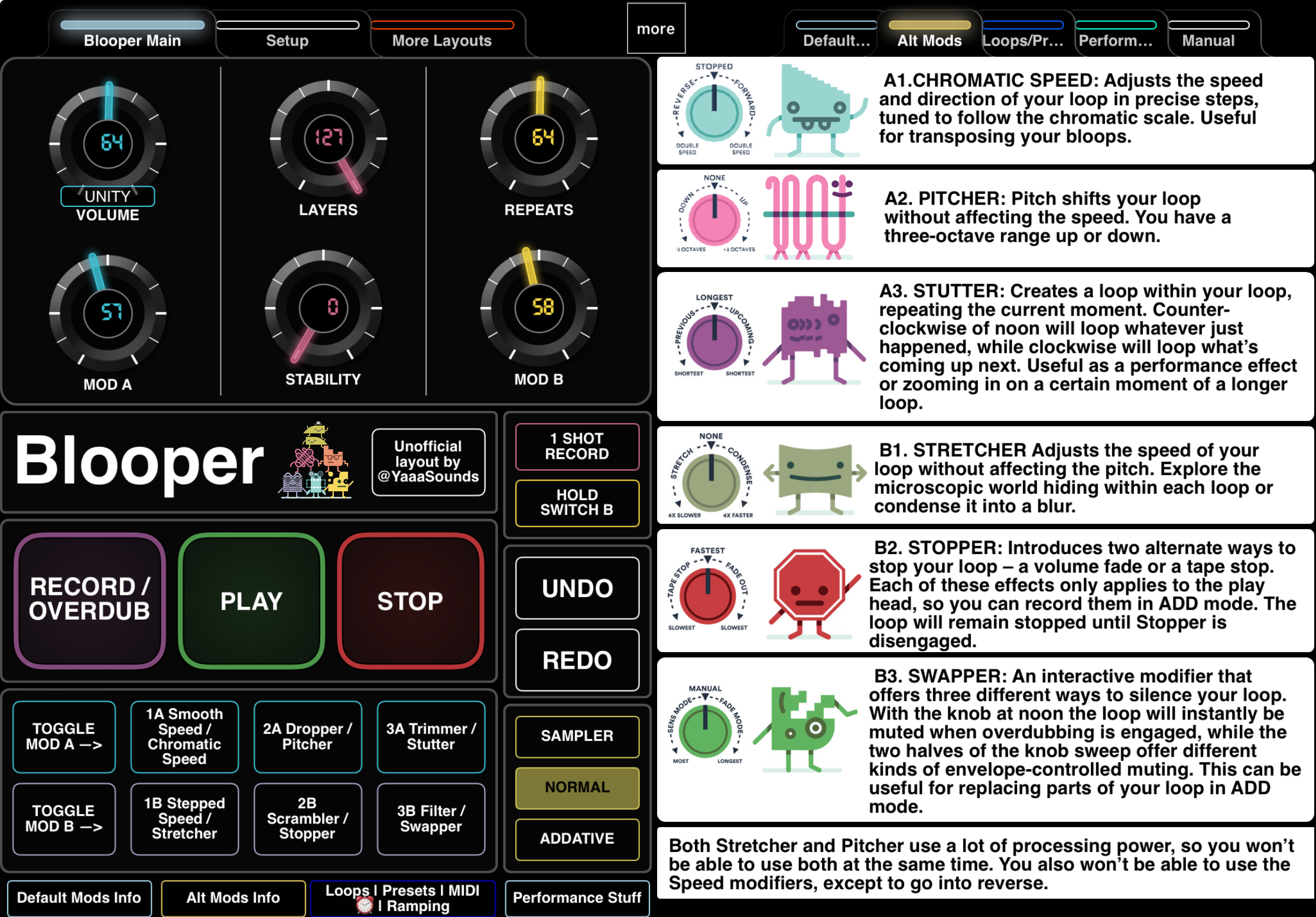

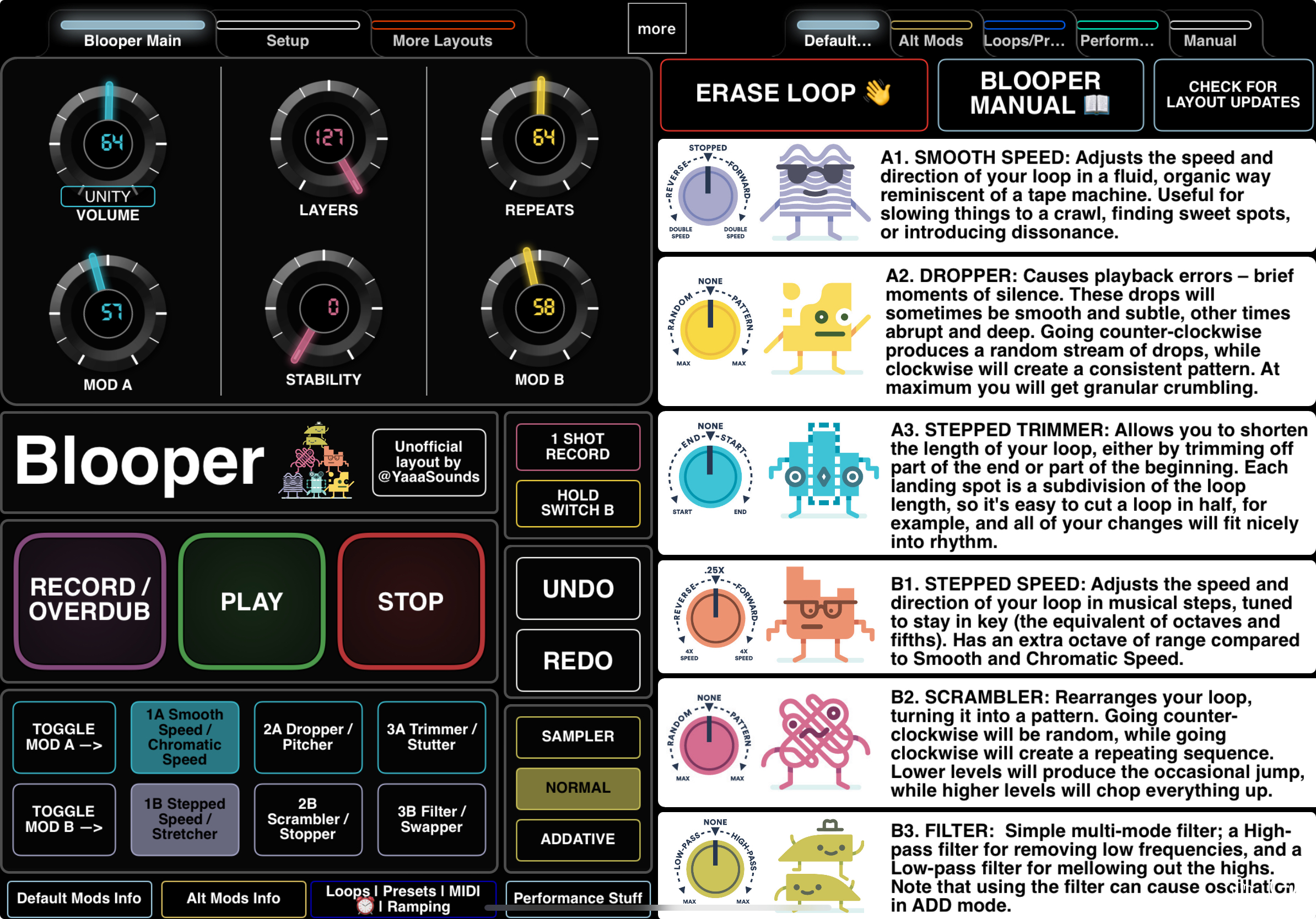

29th May 2024: Blooper Layout Version 1
How to use: 1) Install Midi Designer from the Apple App store 2) Download the layout file below and load it into the app 3) Open app menu -> config -> save layout. Optional - but it will save you a bit of time if you are switching layouts in future
Connecting:
- Wired: Plug your iPad/iPhone into a USB enabled midi device that’s hooked up to a Chase Bliss compatible Midi box. I have tested this with a HX Stomp.
- Bluetooth: I highly recommend the CME Widi jack. Use a midi box that's switchable to work with Chase Bliss pedals (Ring active). Because it's switchable you can then use any stereo TRS cable. I am using the Disaster Area Midi Box 4. Do not try using a Widi jack plugged directly into the Mood pedal's midi input - it won't work because the TRS cable CME use is wired up the standard way.

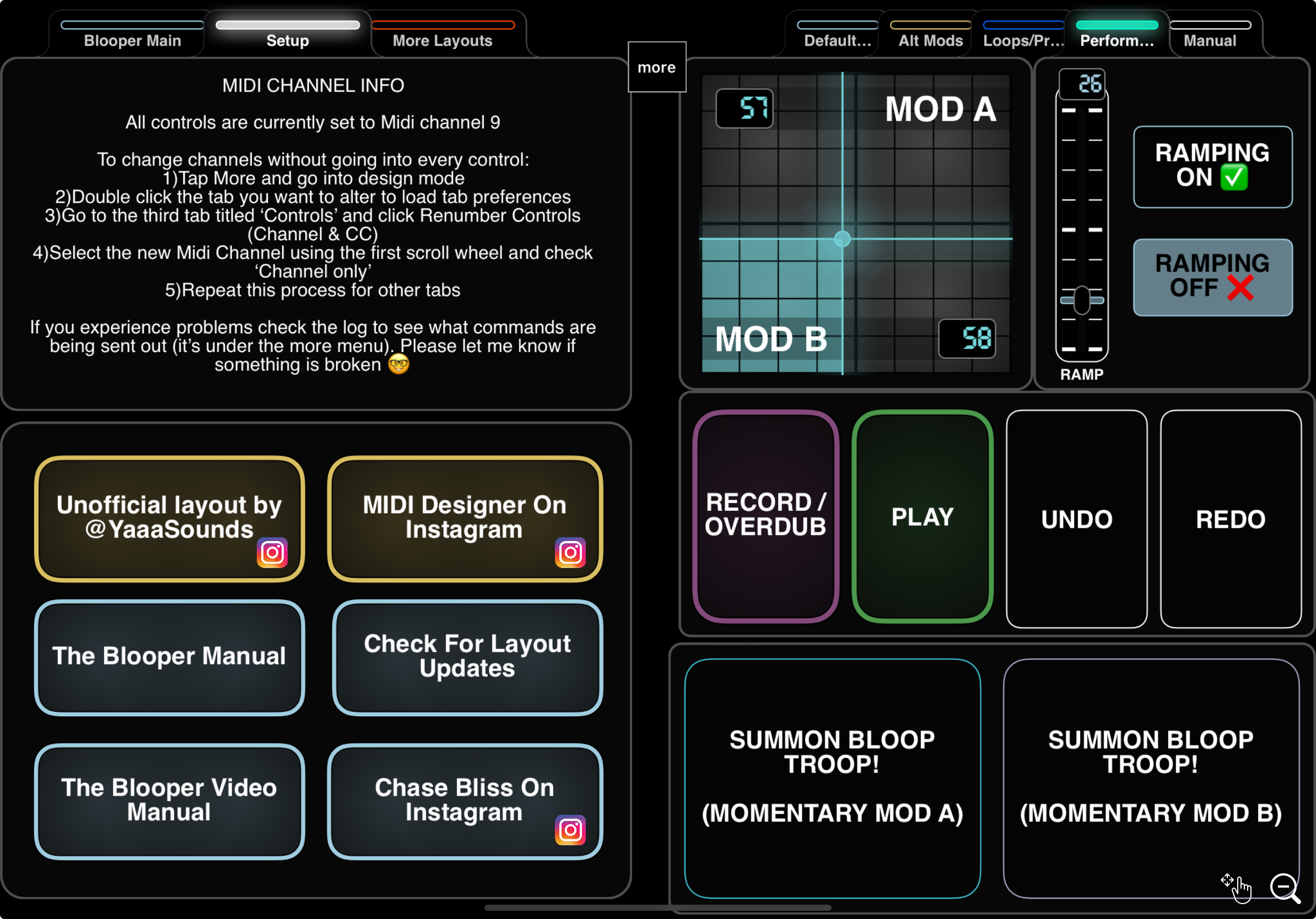

Midi Channel: Set to 9. You can easily change these by:
- Tapping the More menu (top centre) then design mode
- Double tap a tab and go to the controls pane.
- Click Renumber controls (Channel & CC), and pick the channel you want to change everything on the tab to. Make sure Channel only is selected,
- Tap apply.
- Repeat the process for each tab with controls on them (it's quick and should take 1-2min to do). Save your layout so settings are retained (under More/Config/Actions/Save Layout As)
----

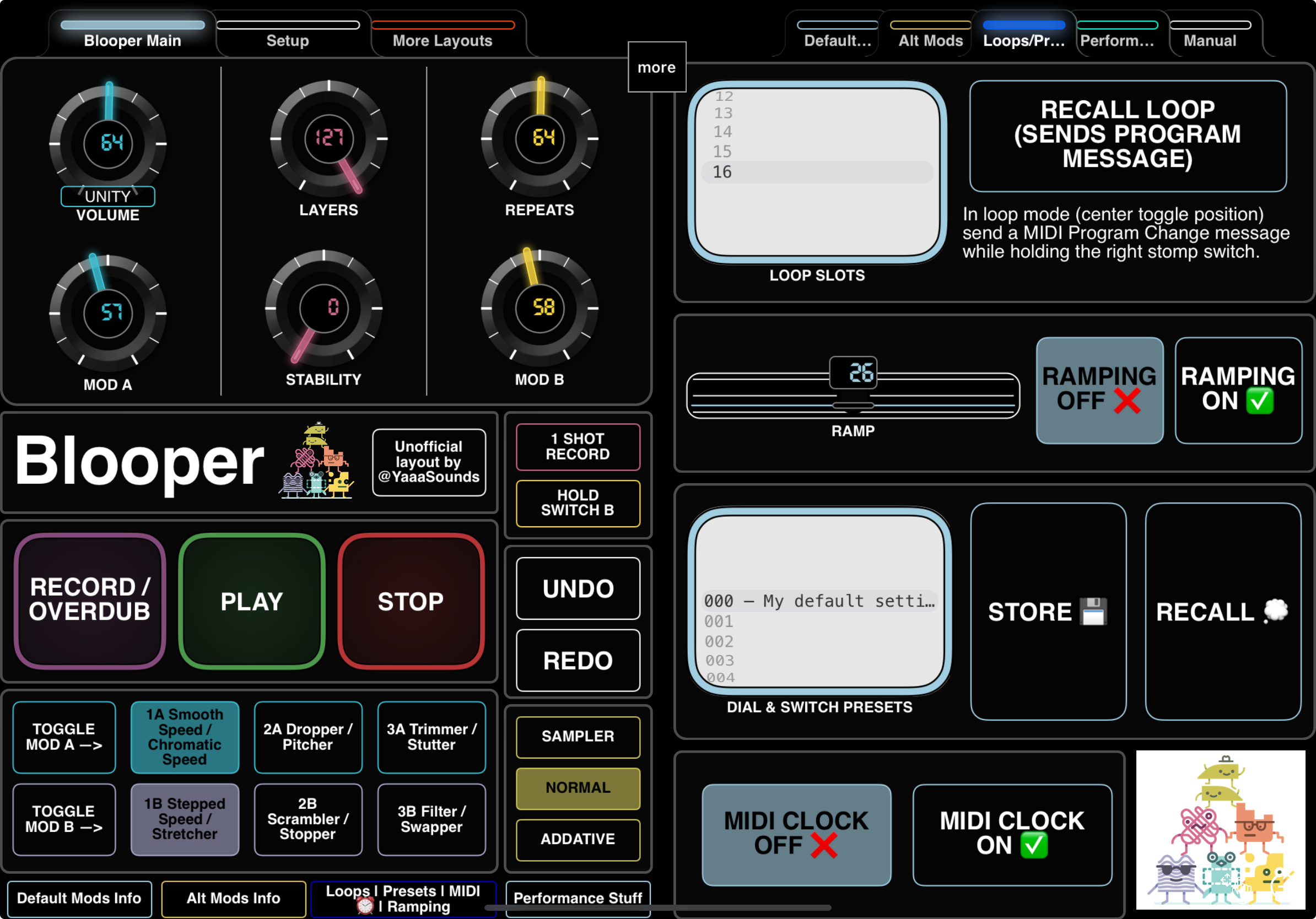

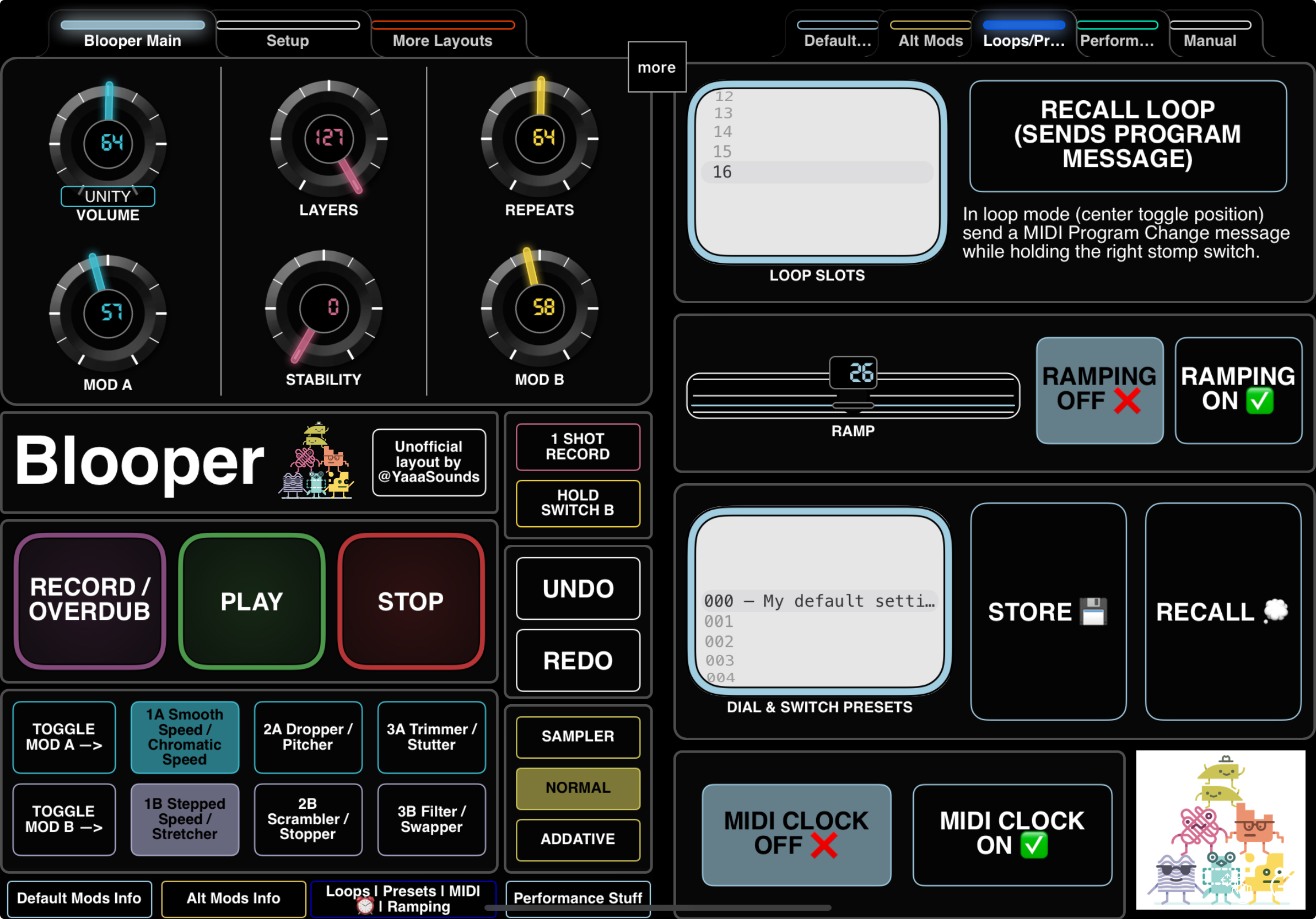

Presets:
- Saving in-app presets: Use the ticker to pick the slot -> Hit Save -> Label your preset
- If you want to see what the preset saving module is connected to or edit them:
- Go into design mode -> double tap the ticker -> Relationships tab.
- Then look at the subcontrols
- To add subcontrols: Hold your finger over the "drag to subcontrol" button then gliding it over the control. Then hit apply and save your layout.
- To remove subcontrols: Swipe from right to left on the list. Then hit apply and save your layout.
A NOTE ON PRESETS:
- If you are adding in-app presets, make sure you save your layout at the end of a session. This will write them to the layout file. Open the App Menu -> Tap Config -> Then tap Save Layout in the Actions Tab
- If you happen to open design mode you'll notice there's a lot of panels with controls that are hidden in play mode (the yellow boxes). Don't delete them - they are super or sub controls, and necessary for mapping and functionality to work. Feel free to tweak other controls though - e.g if you want to change a colour/size, move them elsewhere or switch out a dial of a fader etc.
A tip for those wishing to edit things: When you load this layout in it will be locked from making changes. But if you go into design mode, then tap on the padlock you can unlock elements to make changes. The app refers to 'Others' for controls (e.g buttons & sliders).
-----
If you'd like to make your own midi layout or modify what I created, Scott UHL Music has a really great video on how to use the app
----
If you spot anything that has not been mapped correctly, let me know and I'll do my best solve them - You can see what commands are going out by using the log function in the more menu. If you enjoy using this layout I'd love to know in the comments or via Instagram.
----
Disclaimers
This is a non-official layout. Use at your own risk. Joel and the Chase Bliss team have given my their blessing though.
I am not connected to Chase Bliss, and I don't work for Midi Designer. I made this for my personal use, and thought I'd post it here so other people can enjoy using it.
For Midi Designer Pro app issues please contact the Midi Designer support team
For issues with pedal hardware or software please contact Chase Bliss.
