MIDI Target Manufacturer(s): Roland
Summary: Unleash the full potential of your Roland TR-6S with this expertly crafted MIDI Designer layout. Enjoy a traditional mixer view that provides instant access to key track and kit parameters, with the current kit name and number always in sight. Effortlessly manage your effects with a functional flow view and quick-setting buttons, including a DRY option to disable all effects. This layout serves as both a heads-up display for live performance and offers direct touch-screen access with your ten fingers. Transform your TR-6S experience with this powerful and intuitive layout.
This version (1.3) of TR 6s Manager brings lots of upgrades
- More live control of variations, including pattern chains
- Stop at end of pattern
- Loads your kit and pattern names, improved name displays
- All pages prompt when load is required
- Additional pattern and kit controls
- Lots of behind the scenes work to improve performance
This is a merge of the SysEx strings demo layout, the live controls from the sequencer, with the prior Manager capability.
TR 8s version is coming, but this will work for 8s, select 8s on setup page (just missing the five additional 8s tracks)
Pages include

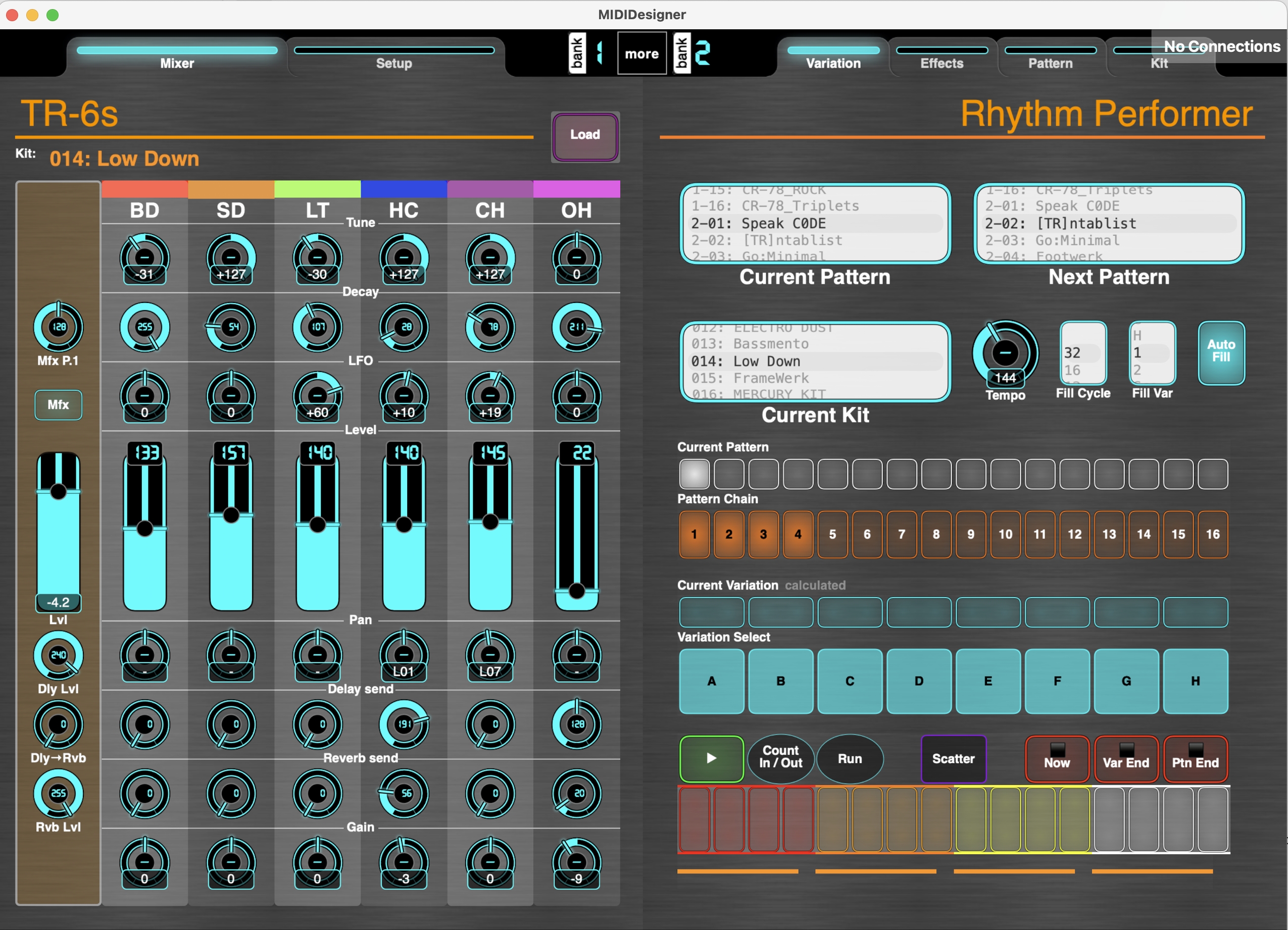

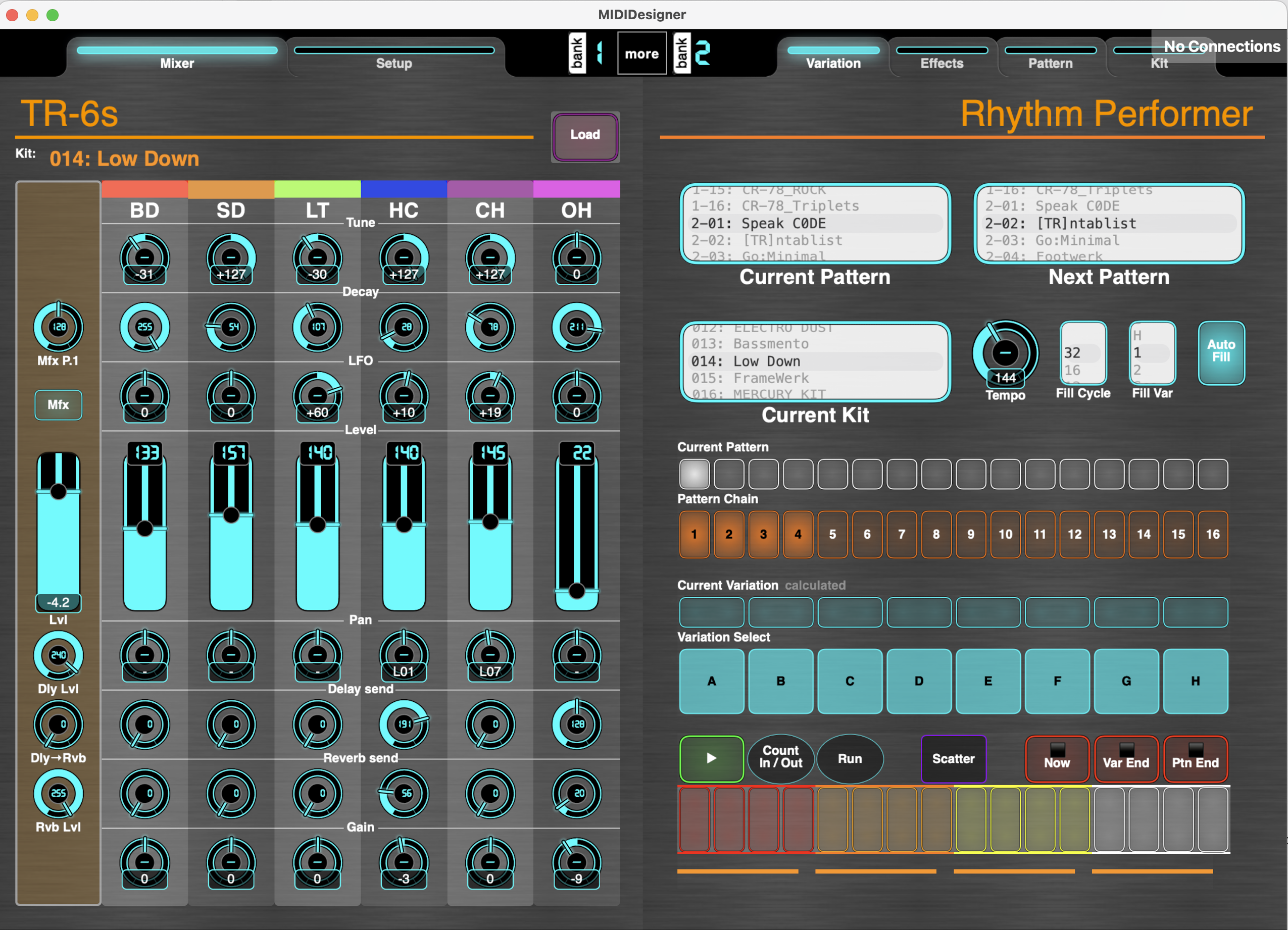

Mixer
- Traditional mixer view, with key track and kit parameters
Variations
- Current and next pattern
- Variation and Pattern Chain control
- Transport controls

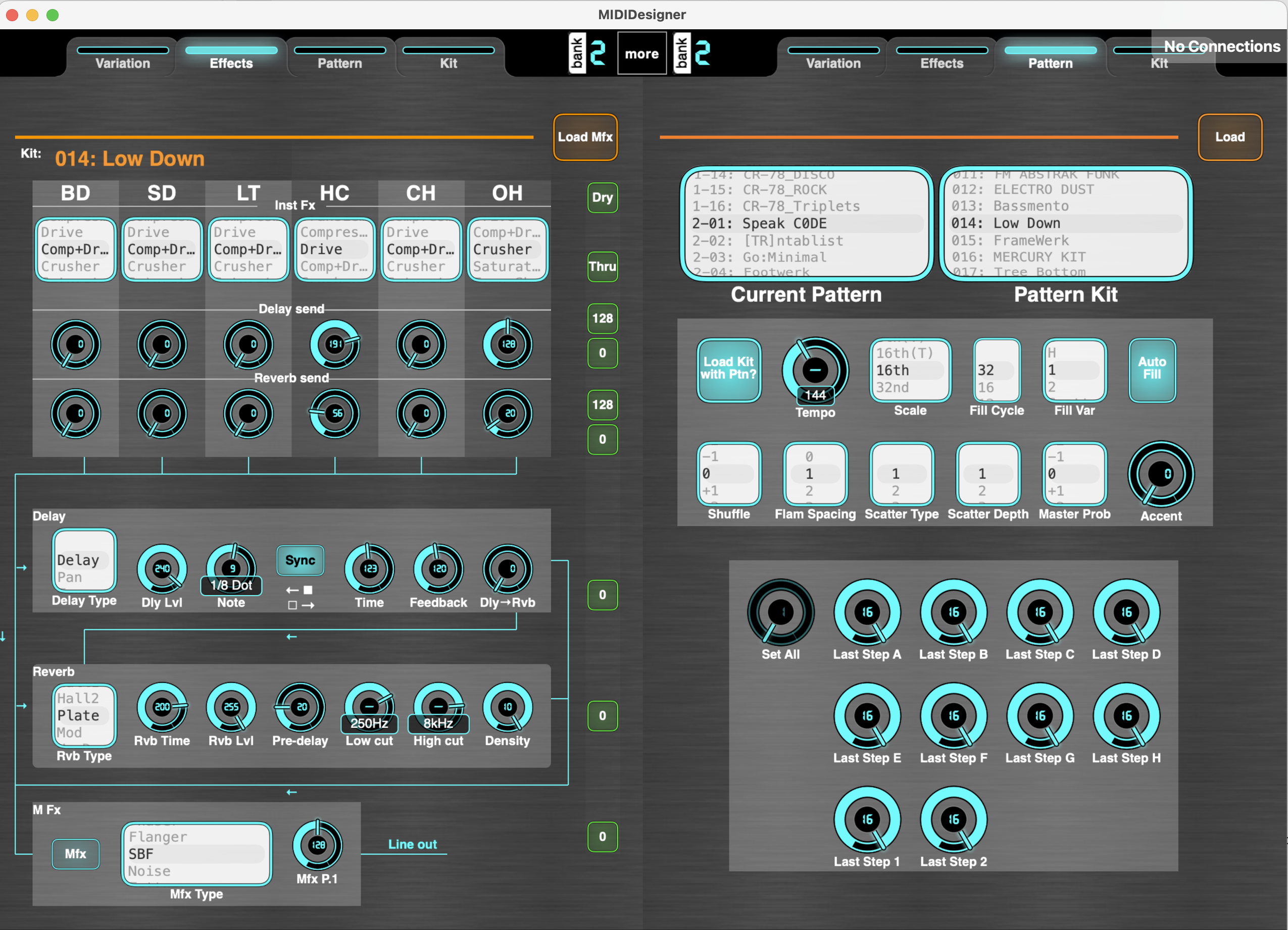

Fx
- Functional flow view of all effects and key settings.
- To the right are quick-setting buttons, including DRY, which disables all effects

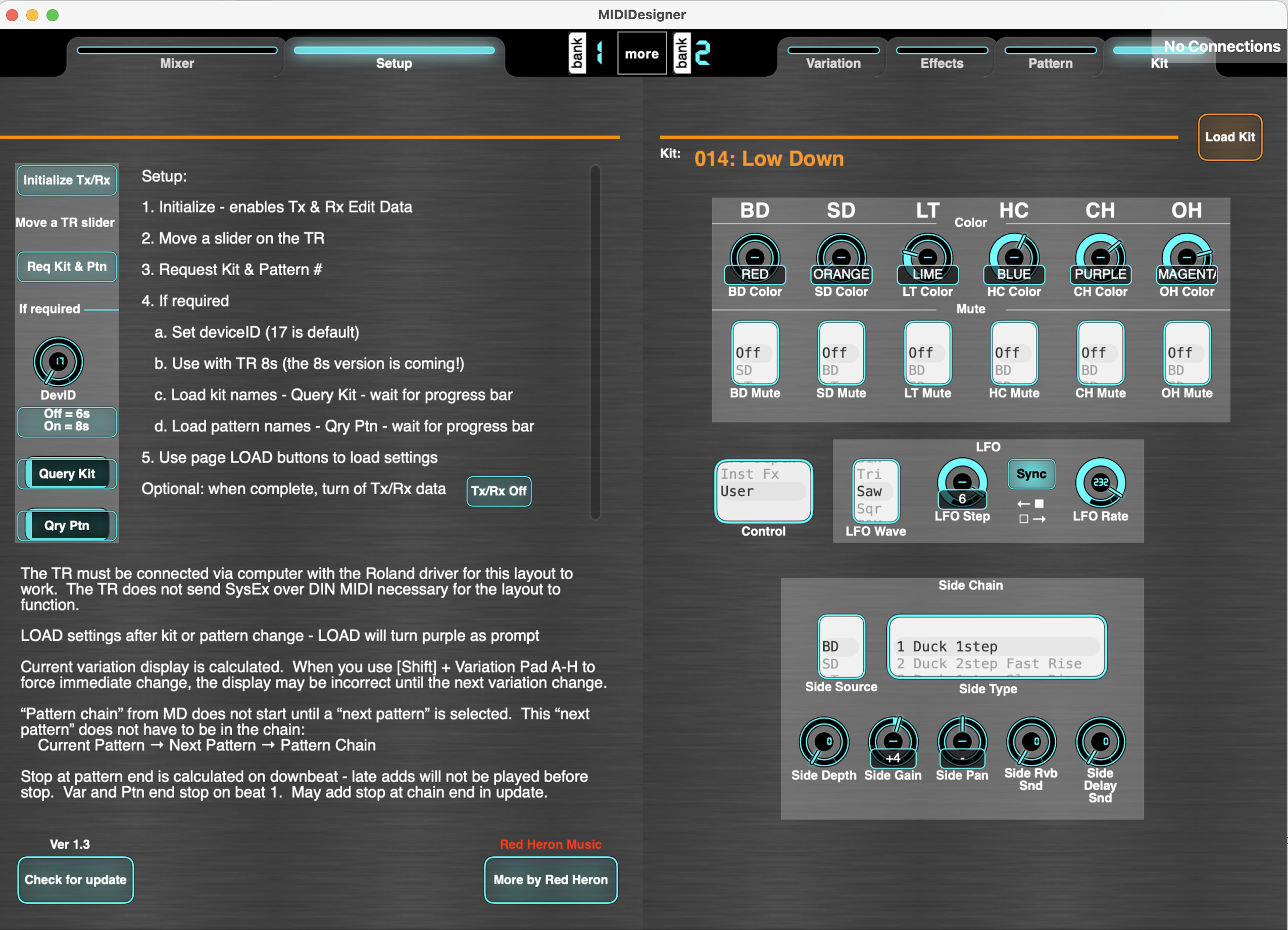

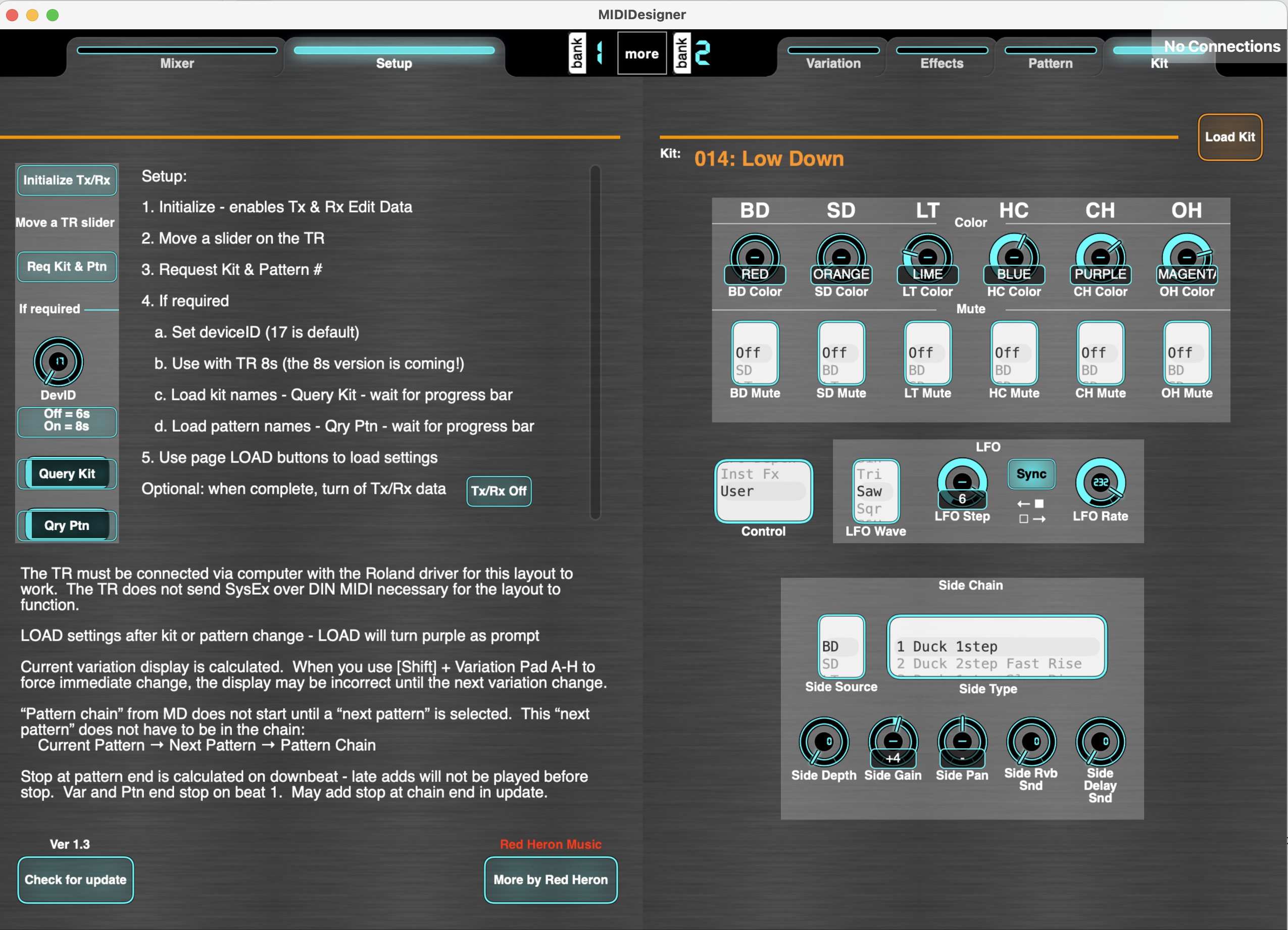

The TR must be connected via computer with Roland TR driver for this layout to work. The TR does not send SysEx over DIN MIDI necessary for the layout to function. You can use on an iPad if the MIDI is routed via a computer using the Roland TR driver.
Check back as we add more capability.
See https://mididesigner.com/qa/10063 for TR-8s version (upgrade there coming soon)
See https://mididesigner.com/qa/10040 where we post our accumulated TR SysEx decode.
