Advanced Control Relationships with MDP2 and Streambyter - MIDI Designer Q&A

Rating: BronzeAdvanced Control Relationships with MDP2 and Streambyter
by jkhiser

+1 vote
Rating: Bronze
Bronze
MIDI Target Manufacturer(s): Original, Generic

Updated to Rev 1.

This is a hack that uses the stand-alone StreamByter to feedback selected MIDI messages to the input to enable advanced control relationships that are not otherwise possible.

With the feedback, you can construct logic that takes in to account and affects control settings, MIDI input and output.

The layout has examples of new constructs possible with this feedback.

The pdf explains the hack and provides logic and annotated StreamByter code for the examples.



This layout also requires stand alone StreamByter, MIDI Fire, or another MIDI routing and filtering app.

Rev 1 video showing updated ganged controls:

Downloads: 1452
Advanced Control 1.10 - Updated ganged controls to remove dependence on enable button
Downloads: 418

Advanced Control 1.00
Downloads: 386

Advanced Control Rev 1.pdf.zip - Updated description for ganged controls revision
Downloads: 632
Images

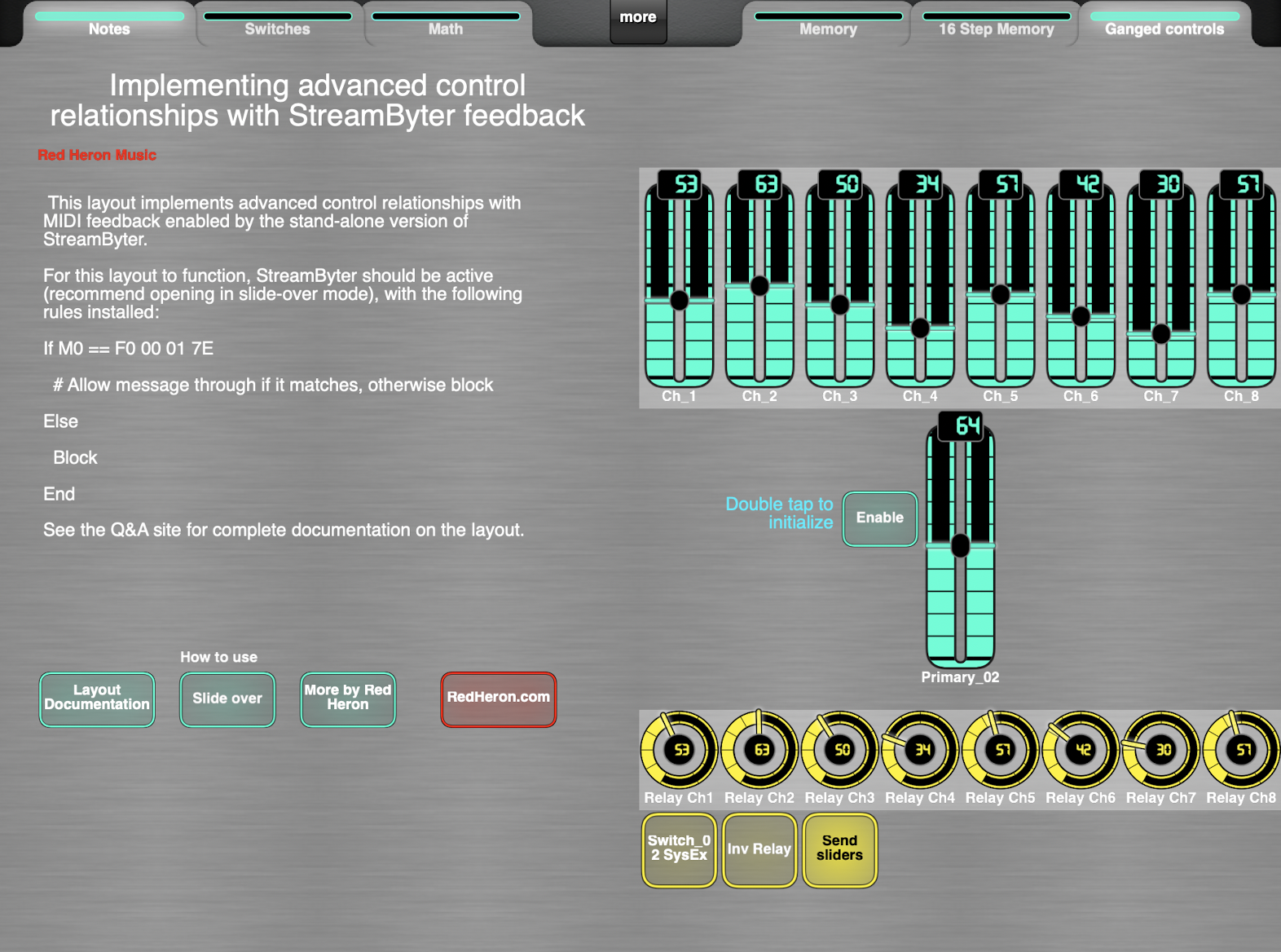

Advanced Control - Ganged Controls.png
Advanced Control - Ganged Controls.png
in Community Shares by jkhiser (22.5k points)
edited by MIDI Designer Team (jkhiser)
JK: As we've discussed a lot this, this should be solvable 100% inside MD now with this feature in the new Beta for 2.330

Allow MIDI messages to feedback to MD (Sysex message must start with F0 00 01 7E 77)

Let me know what you think?
by MIDI Designer Team (Dan)
I will update this layout to work natively with the beta, hopefully tonight.
by jkhiser (22.5k points)

1 Answer

+1 vote

Now native with 2.3300 Beta


Wrap around is now native with 2.3300 beta.  This version of the layout is updated to show how this works for beta testers.  This layout will NOT function in the current released version.
Downloads: 352
Adv Control for 2.3300 Beta R 1.0
Downloads: 352
Images
Advanced control for 2.3300 beta
Advanced control for 2.3300 beta
by jkhiser (22.5k points)
