LAYOUT: Roland Alpha-Juno PG-300 - MIDI Designer Q&A

Rating: BronzeLAYOUT: Roland Alpha-Juno PG-300
by m_vinizm

+1 vote
Rating: Bronze
Bronze
MIDI Target Manufacturer(s): Roland
Hi guys!

I did a layout to Roland Alpha-Juno. It was created and tested with Alpha-Juno 2. It sends sysex messages at channel # 1.

I tried to keep the design of the PG-300, but I also added portamento and hold buttons. I chose to use the colors blue and red, native of Roland.

I hope you enjoy! I'm having so much fun with my Alpha-Juno and MIDI Designer!

edit: There were three errors in previously sent layout file (the "env modes" faders were reversed). The layout is fixed now.
Downloads: 595
Download the Layout
Downloads: 595
Images

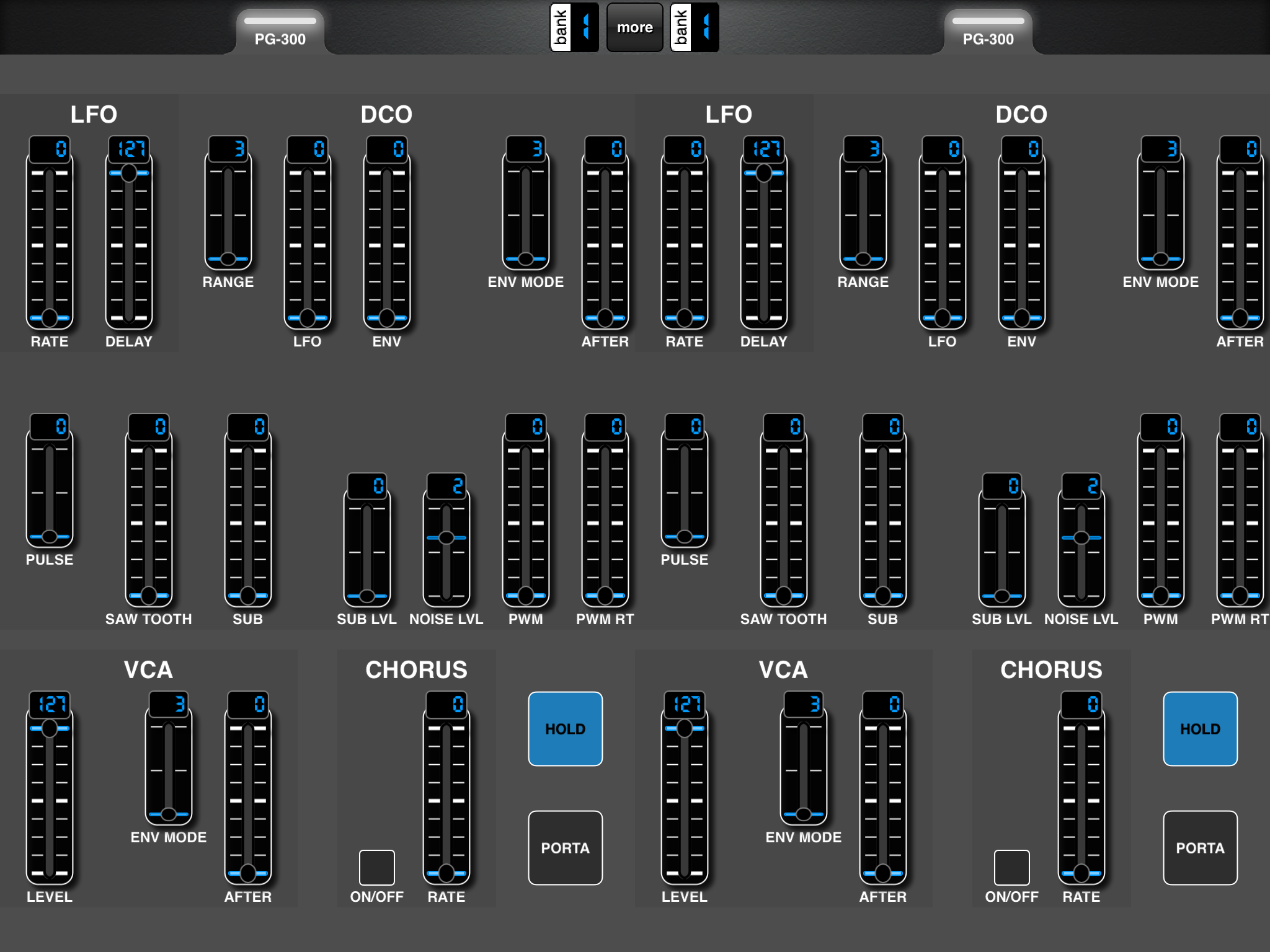

Snapshot
Snapshot
asked Aug 7, 2012 in Community Shares by m_vinizm (170 points)
edited Oct 2, 2016 by MIDI Designer Team (Dan)
Marcus, this is great. I love the design, too. I find it cool and interesting that the knobs, at that width, get very roundish slider handles.  Thanks for this, man, and glad you're having fun tweaking the Juno from a real instrument interface.
commented Aug 7, 2012 by MIDI Designer Team (Dan)
edited Mar 8, 2013 by MIDI Designer Team (Dan)
This is brilliant!
However is it possible you could create a layout with note on off, piano keys like the other layout the other guy has shared ? That would be amazing. Please sir.
commented Jun 9, 2013 by allynoid (100 points)
edited Jun 9, 2013 by allynoid
Very cool. Just fired up my old Alpha Juno 2 and this works great!
commented Dec 18, 2014 by louisb (420 points)

2 Answers

0 votes

Best answer
dummy blank dummy
answered Jan 29, 2013 by MIDI Designer Team (Dan)
+1 vote

LAYOUT: Roland Alpha-Juno PG-300 for iPhone 4S by paf


MIDI Target Manufacturer(s): Roland
Summary: The first iPhone layout for MIDI Designer Pro!
Rating: Silver

Hello,

I hope you don't mind, I modified this layout for iphone 4s. Should be the first iPhone layout here.

It works fine (with irig midi) but does not update itself at program changes from the synth as the app doesn't have the functionality of custom global sysex strings (yet).

Edit (16.05.2013): fixed several value errors and layout issues and added a VCF matrix page.
Downloads: 595
Layout for the iPhone 4S
Downloads: 595
Images

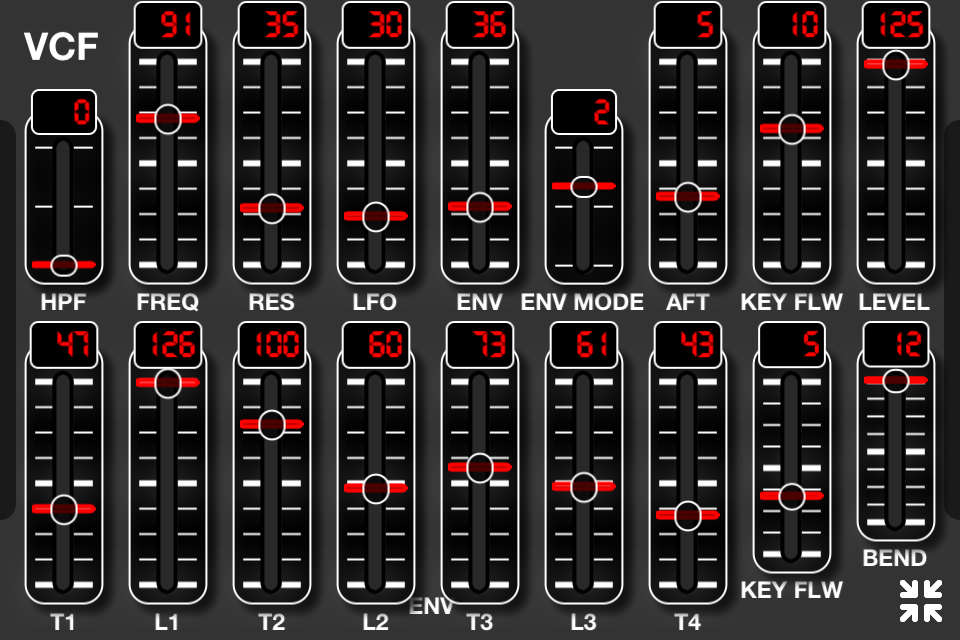

Image 1
Image 1
Image 2
Image 2
Image 3
Image 3
answered May 14, 2013 by paf (200 points)
edited Oct 2, 2016 by MIDI Designer Team (Dan)
nice mod!!
@m_vinizm
commented Jun 8, 2013 by m_vinizm1 (100 points)
Hi and thanks for this reduced layout! This is great stuff. For some reason the site didn't alert me that it was here. Awesome!

Best,
Dan
commented Jun 9, 2013 by MIDI Designer Team (Dan)
Can you change the MIDI channel of this layout?
asked Jan 28, 2022 in Basic by jamieally (220 points)
