Configure Knobs with Other Knobs/Pickers

Question

Hello, I'm new here, but an user of MDP for a couple of years. I'm controlling several guitar-fx-controllers from Digitech and AVID. This question/suggestion is about the Elevenrack FX-controller (11R) and is sort of an advanced feature/wish.

I want to control several parameters at the same time. The 11R gives me control of 4 parameters with one expression pedal. This gives some limitations, I want more parameters in one foot-stroke. It is possible to control a slider from my Roland FC300 in MDP wich will supercontrol a number of knobs (I name them SEND-knobs) who send CC-messages to the 11R, not hard to configure. The advanced part of my wish is that the SEND-knobs could be configured with other MDP-knobs (Min/Max) and Pickers (CC-command).

I roamed around in MDP but did not succeed to acomplish my wish. What do you think: will this be possible?

Images

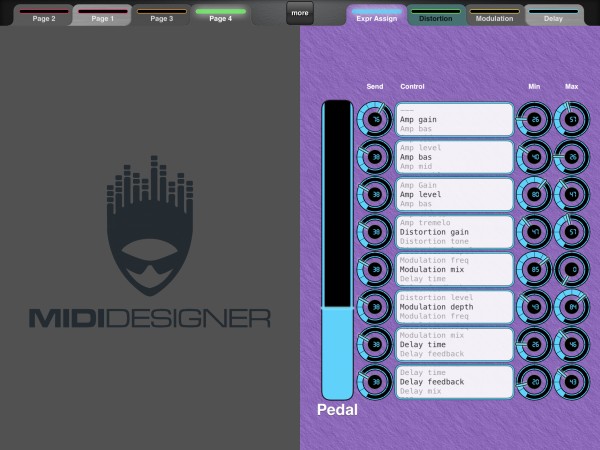

MDP Screenshot.PNG

Comments

Assuming I understand the question correctly, you want to modify what the SEND knobs actually send based on your pickers. There is only ONE modification of this type you can do in MD right now: Channel Changers (with or without Presets for Groups).

---

http://mididesigner.com/wiki/doku.php/manual:chapter-relationships-2#channel_changers

---

Yes, you're assumptions are correct. Is this a feature that will become available in the future? Would create enhanced options voor mdp

---

Sorry I misspoke. You've got transpose, which is CC, too. https://mididesigner.com/qa/2720/transpose-and-octave-transpose-in-1-6-1

and also

http://mididesigner.com/qa/2868/transpose-in-midi-designer-with-buttons

So that leaves just MIDI min-max... yes, we'll consider it for the future, but right now you've got 2 out of 3.

Also note that Presets for Groups can be used to combine situations...

---

Wow, the transposefunction works flawless on CC-send knob. I made a picker wich contains several CC-values corresponding to the CC to send. `For example 25 for distortion On/Off and 50 for Modulation On/Off. The knob itselfs sends CC#12 because I figured out that the CC was 12 too low every time. With the initial value CC#12 it is correct every time. Don't know why the #12 is involved.
Unfortunately this whole thing is kind of useless without the possibility to set the min and max value dynamically. So know what, we wait :)

---

Is it possible to upload a page?

---

Absolutely! Pages are uploaded the same way as layouts, only it's all in the double-tap-on-page-tab menu in Design Mode. |

http://mididesigner.com/qa/108/how-can-i-upload-a-normal-file-in-an-answer-on-this-q%26a-site|

Sorry for the delay in responding, thanks
